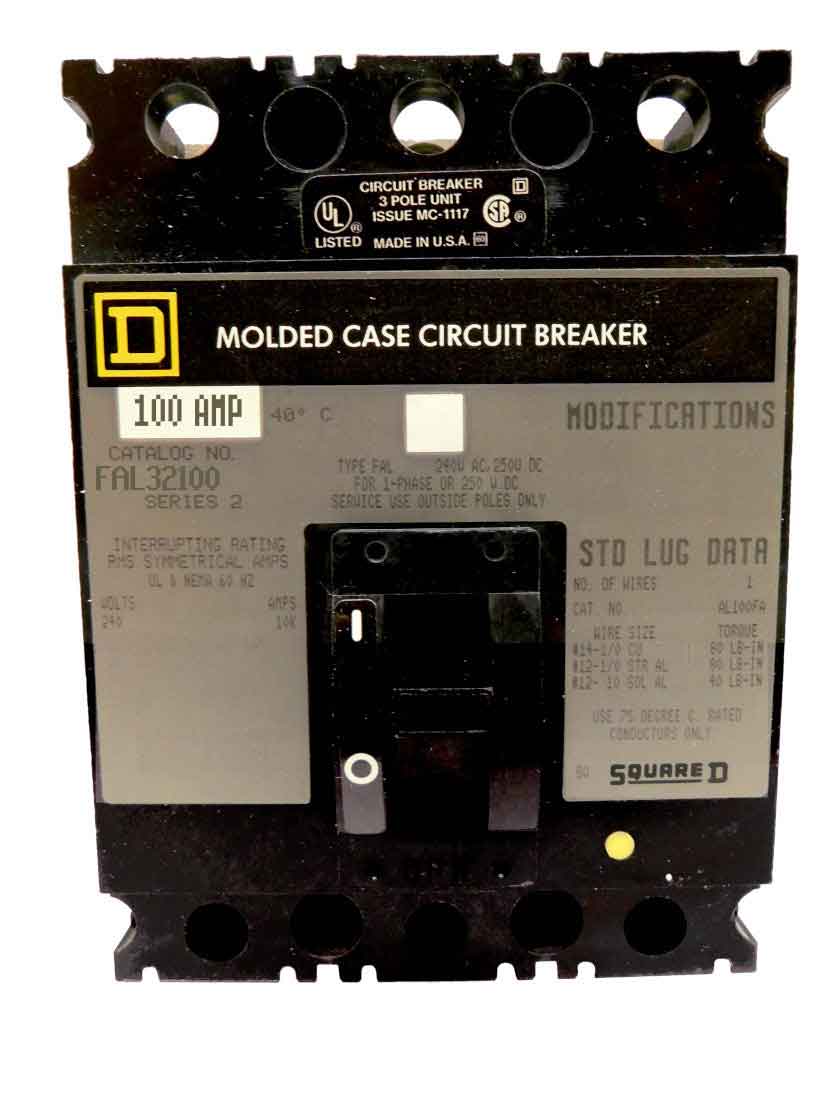

FAL32100 - Square D 100A 240V 3 Pole Feed-Thru Molded Case Circuit Breaker, Bolt-On Frame F

FAL32100

FAL32100 is a 3 pole, 100 amp, 240 volt feed-thru molded case circuit breaker from Square D designed for reliable circuit protection.This thermal magnetic breaker features a bolt-on mounting type with a frame type F, providing a 10kA interrupting rating at 240VAC and 5kA at 250VDC. It includes long-time and instantaneous trip functions and line & load side lug terminals. The breaker is UL, CSA, and CE listed, suitable for three-phase applications.

• Manufacturer: Square D
• Series: FAL
• Amperage: 100A
• Voltage Rating: 240VAC / 250VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA @ 240VAC, 5kA @ 250VDC
• Frame Type: F
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Certifications: UL, CSA, CE Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL32100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901423164
• GTIN : 00785901423164
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5.02
• Certification : UL, CSA
