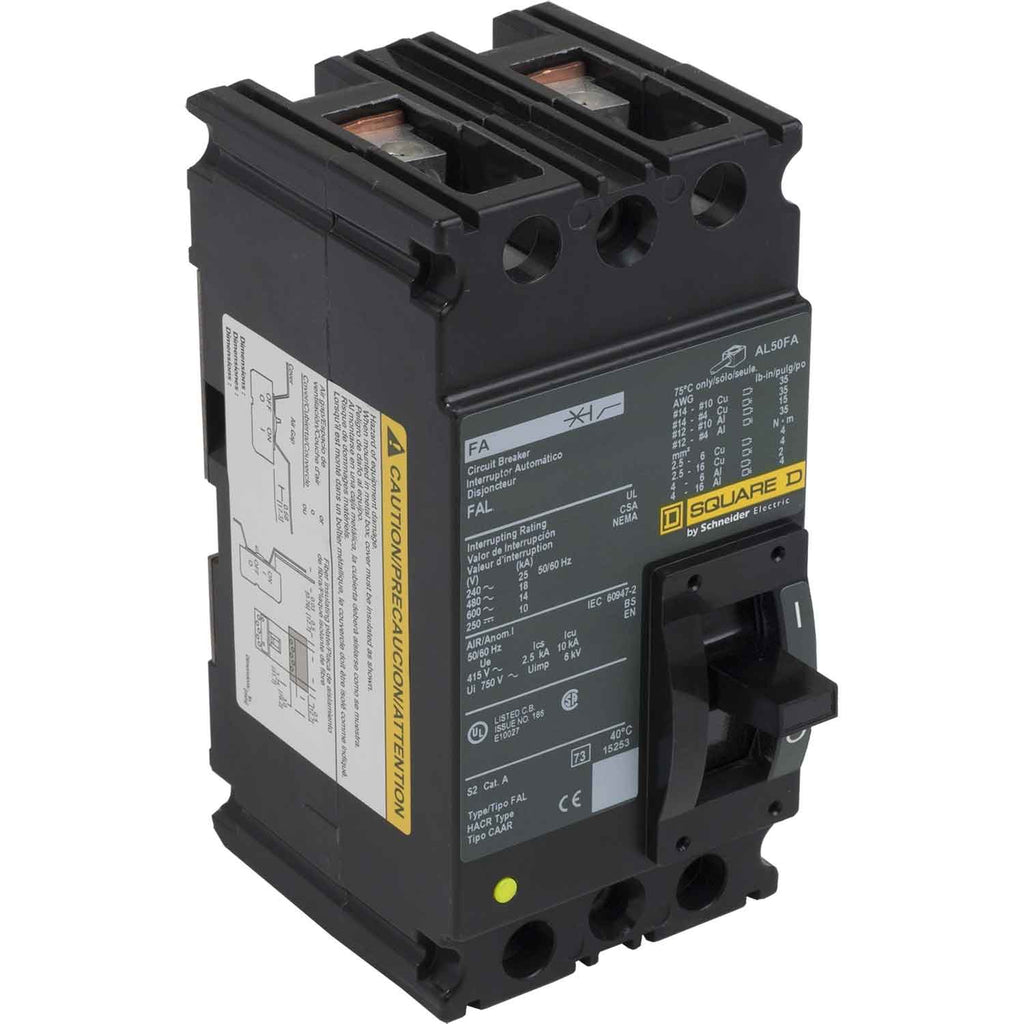

FAL24080 - Square D 80 Amp 2 Pole 480V Molded Case Circuit Breaker FA Series

FAL24080

FAL24080 is a Square D 80 Amp, 2 Pole, 480 Volt Molded Case Circuit Breaker from the FA series designed for reliable circuit protection.This thermal magnetic circuit breaker features long-time and instantaneous trip functions, suitable for 1-phase applications with feed-thru connection. It has an interrupt rating of 18kA at 480V, line and load side lug terminals, and unit mount installation. The breaker is UL and CSA certified, ensuring compliance with industry safety standards.

• Amperage: 80 A
• Voltage: 480 V AC
• Poles: 2
• Series/Frame: FA
• Mounting Type: Unit mount
• Interrupt Rating: 18kA @ 480V
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Phase: Single phase
• Connection: Feed-Thru
• Certifications: UL, CSA
• Line and Load Side Lug Terminals
• Dimensions: Approx. 3" W x 4.13" D x 6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL24080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901848516
• GTIN : 00785901848516
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3
• Certification : CSA-UL LISTED
