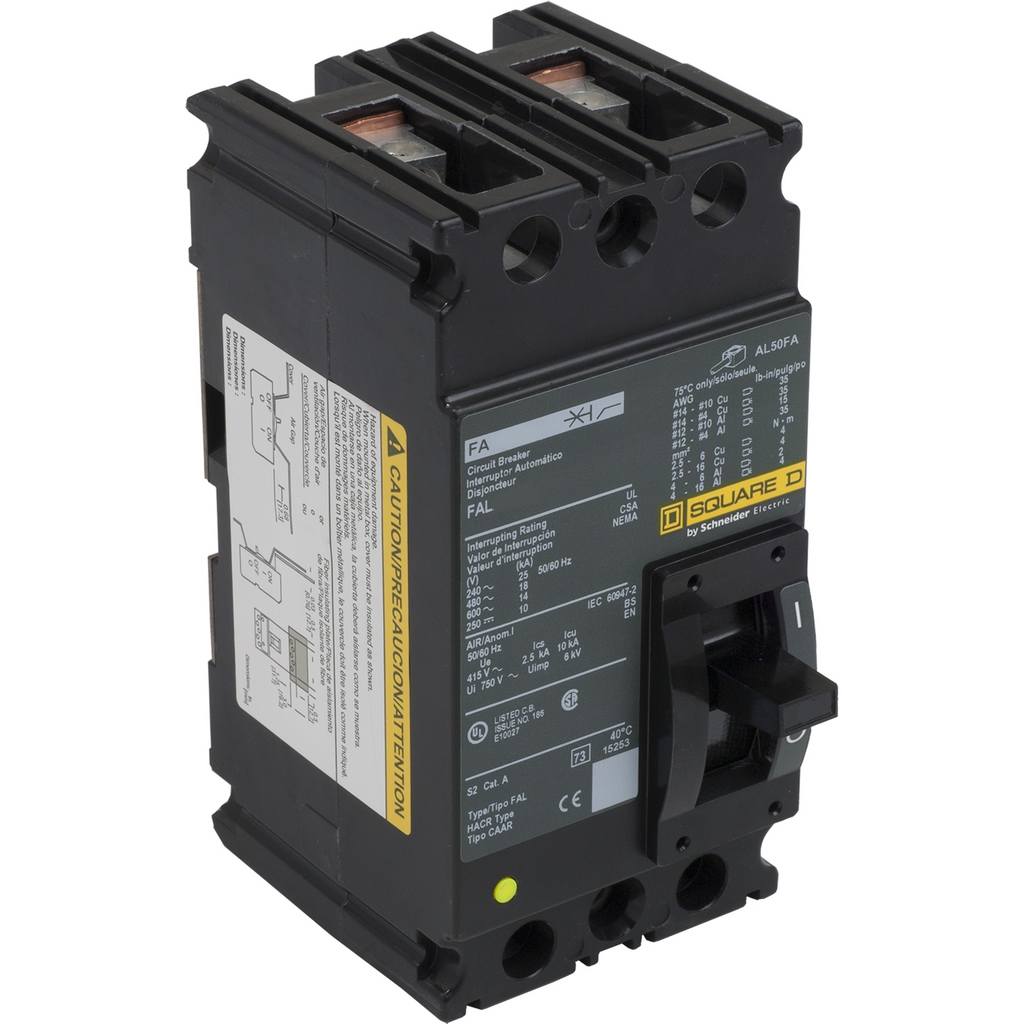

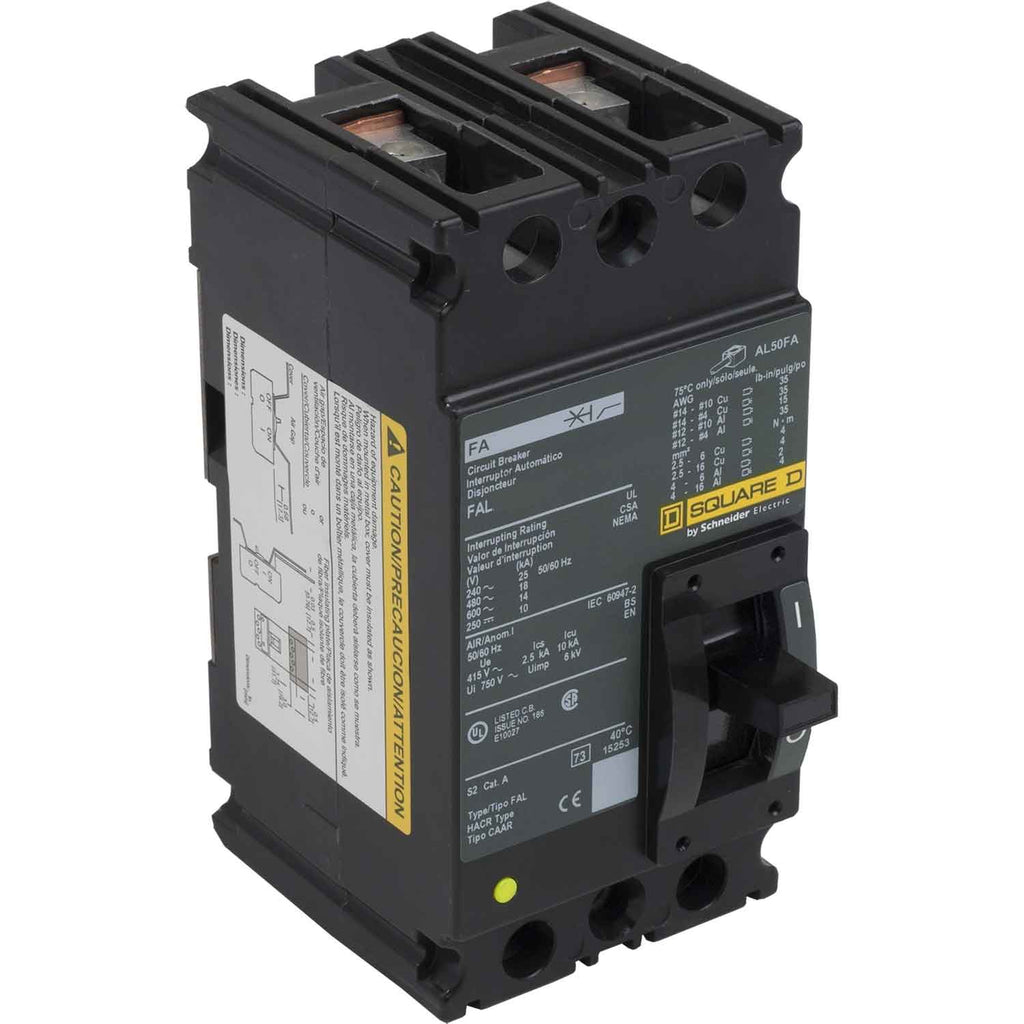

FAL24020 - Square D 20A 480V 2 Pole Molded Case Circuit Breaker F Frame Adjustable Trip

FAL24020

FAL24020 is a 2 pole, 20 amp, 480 volt molded case circuit breaker from Square D designed for industrial applications.This circuit breaker features an adjustable thermal magnetic trip unit, F frame construction, and is rated for 25kA interrupting capacity at 240VAC and 18kA at 480VAC. It supports copper line and load lug terminals and is suitable for feed-thru mounting. The breaker complies with UL and CSA certifications.

• Type: Molded Case Circuit Breaker, Adjustable Trip
• Amperage: 20 Amps at 40°C
• Voltage Rating: 480 VAC, 250 VDC
• Poles: 2
• Interrupt Rating: 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC
• Frame: F Frame
• Trip Unit: Thermal Magnetic
• Terminal Type: Copper Line and Load Lugs
• Mounting Type: Feed-Thru
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL24020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 051712101592
• GTIN : 00051712101592
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3.06
• Certification : UL, CSA
• Wire Size : 12-4 AWG (Aluminum) 14-4 AWG (Copper)
