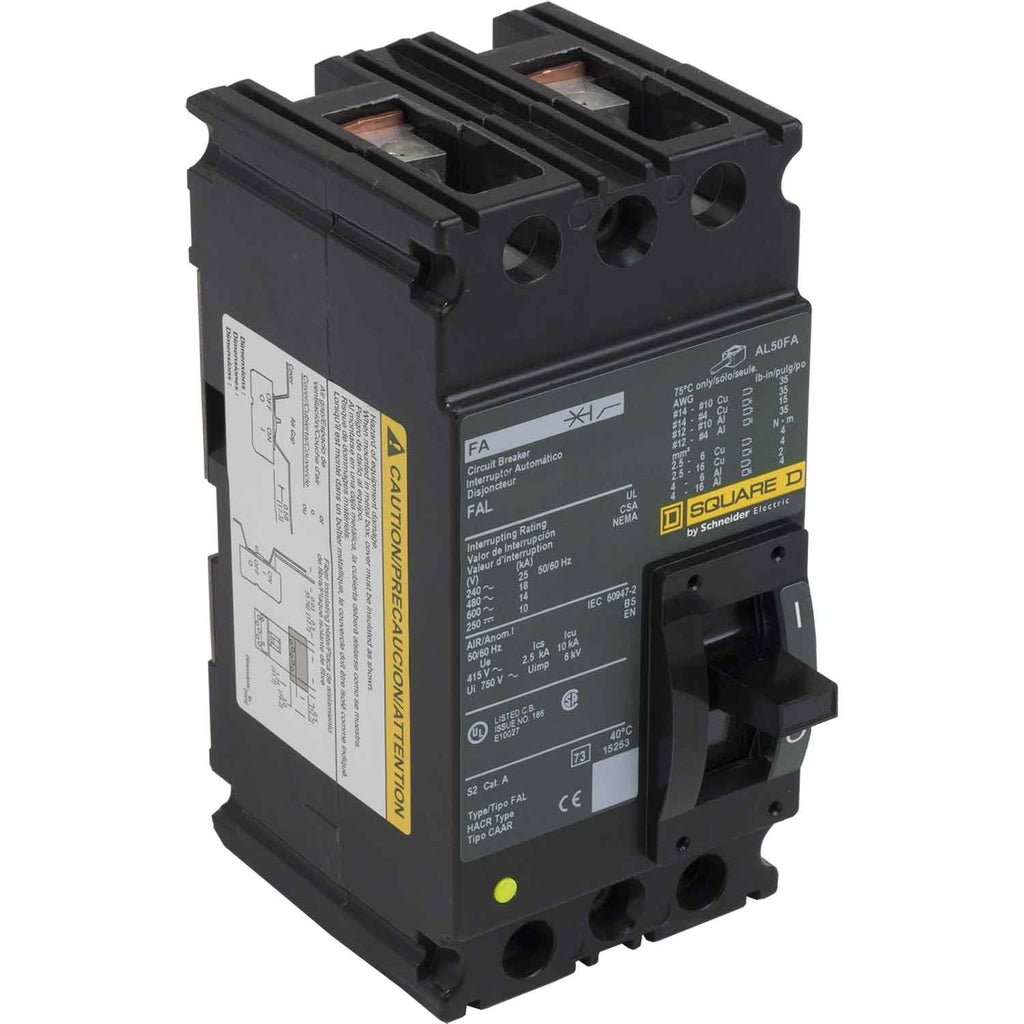

FAL24015 - Square D 15A 480V 2-Pole F-Frame Molded Case Circuit Breaker, 18kA Interrupt, Thermal Magnetic Trip, Unit Mount

FAL24015

FAL24015 is a Square D molded case circuit breaker designed for reliable protection in commercial and industrial applications.

This 2-pole breaker features a 15A amperage rating, 480V voltage, and an 18kA interrupting capacity at 480V. It is part of the FAL Series with an F-Frame, unit mount design, and utilizes a thermal magnetic trip unit for both overload and short-circuit protection. The breaker is suitable for feed-thru applications and is engineered for durability and safety in demanding environments.

Key Specifications
• Part Number: FAL24015
• Manufacturer: Square D
• Amperage: 15A
• Voltage: 480V
• Poles: 2
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA at 480V
• Series/Frame: FAL Series, F-Frame
• Trip Unit: Thermal Magnetic
• Connection: Feed-Thru
• Certifications: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL24015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 078590125488
• GTIN : 00785901254881
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3
• Wire Size : 12-4 AWG (Aluminum) 14-4 AWG (Copper)
