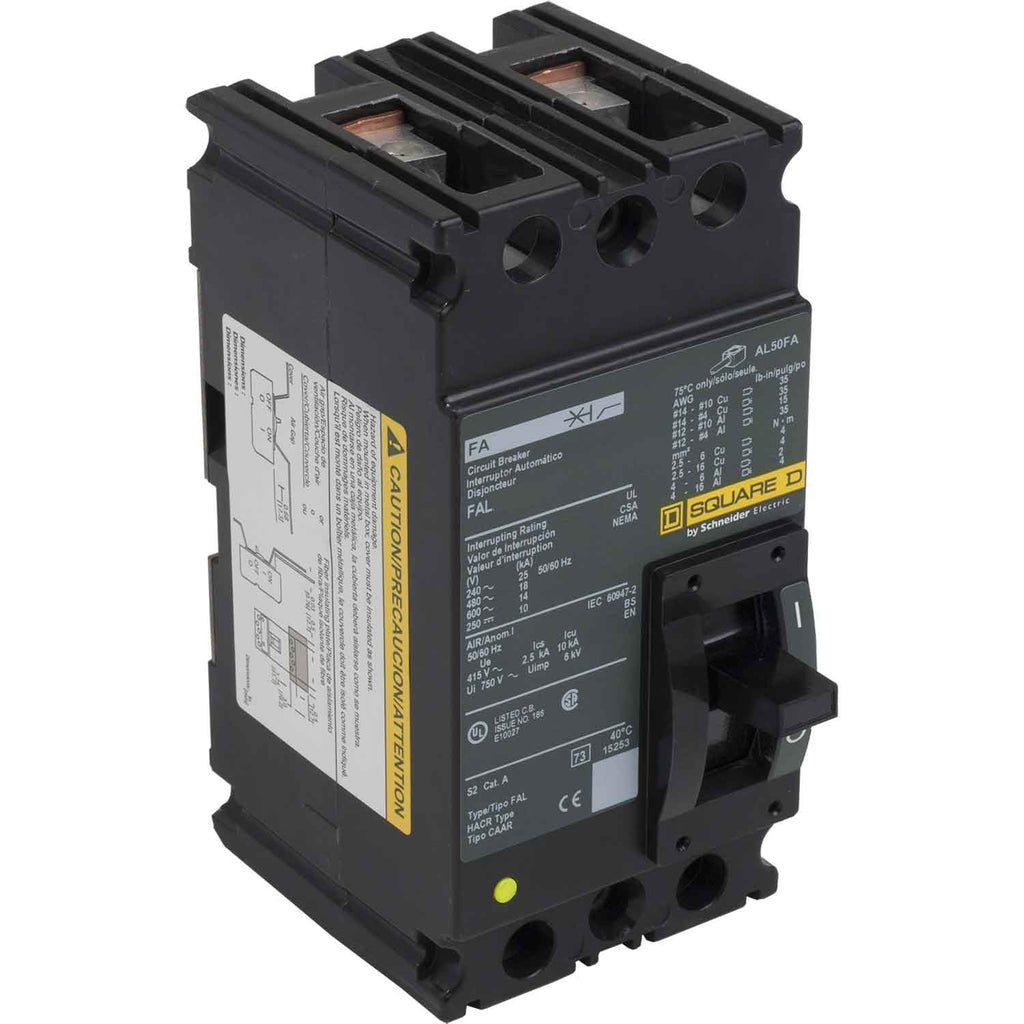

FAL24050 - Square D 50A 480V 2 Pole Feed-Thru Molded Case Circuit Breaker 18kA Interrupt Rating

FAL24050

FAL24050 is a Square D 2 pole, 50 amp, 480 volt feed-thru molded case circuit breaker designed for reliable circuit protection.This circuit breaker features thermal-magnetic trip technology with long-time and instantaneous trip functions, a unit mount design, and an 18kA interrupting capacity at 480V. It includes line and load side lug terminals and is HACR rated for HVAC applications.

• Amperage: 50A
• Voltage: 480V
• Poles: 2
• Mounting Type: Unit mount
• Interrupt Rating: 18kA @ 480V
• Series/Frame: FAL Series
• Trip Unit: Thermal-magnetic with long-time and instantaneous trip
• Certifications: HACR rated
• Feed-Thru type breaker
• Line and load side lug terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL24050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901254928
• GTIN : 00785901254928
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3
• Certification : UL, CSA
