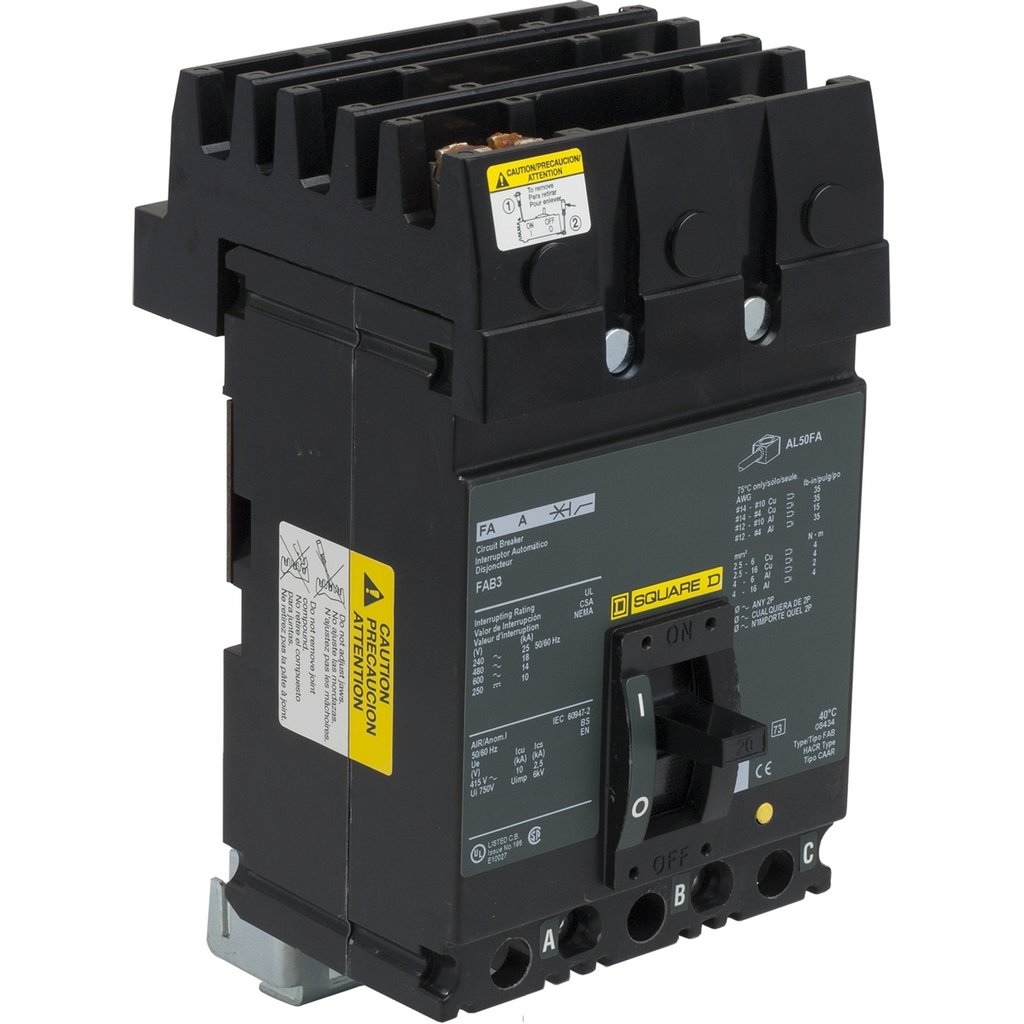

FAB34040 - Square D 40 Amp 480 Volt 3 Pole I-Line Molded Case Circuit Breaker Bolt-On Frame F

FAB34040

FAB34040 is a Square D 3-pole, 40 amp, 480 volt molded case circuit breaker designed for I-Line panelboards with bolt-on mounting.This circuit breaker features a thermal magnetic trip unit, frame type F, and is rated for 18kA interrupting capacity at 480 VAC. It supports voltages up to 480 VAC and 250 VDC, with UL and CSA certifications. The breaker is suitable for power distribution applications and accepts wire sizes from 12 to 1/0 AWG aluminum and 14 to 1/0 AWG copper.

Key Specifications
• Amperage: 40 Amp
• Voltage Rating: 480 VAC / 250 VDC
• Poles: 3
• Interrupt Rating: 18 kA at 480 VAC, 10 kA at 240 VAC
• Mounting Type: Bolt-On
• Frame Type: F
• Trip Unit: Thermal Magnetic
• Wire Size: 12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper
• Series: I-Line
• Certifications: UL, CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FAB34040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FAB
• Voltage : 480
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic



Product Data

• GTIN : 00785901128700
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6.44
