Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAB34030

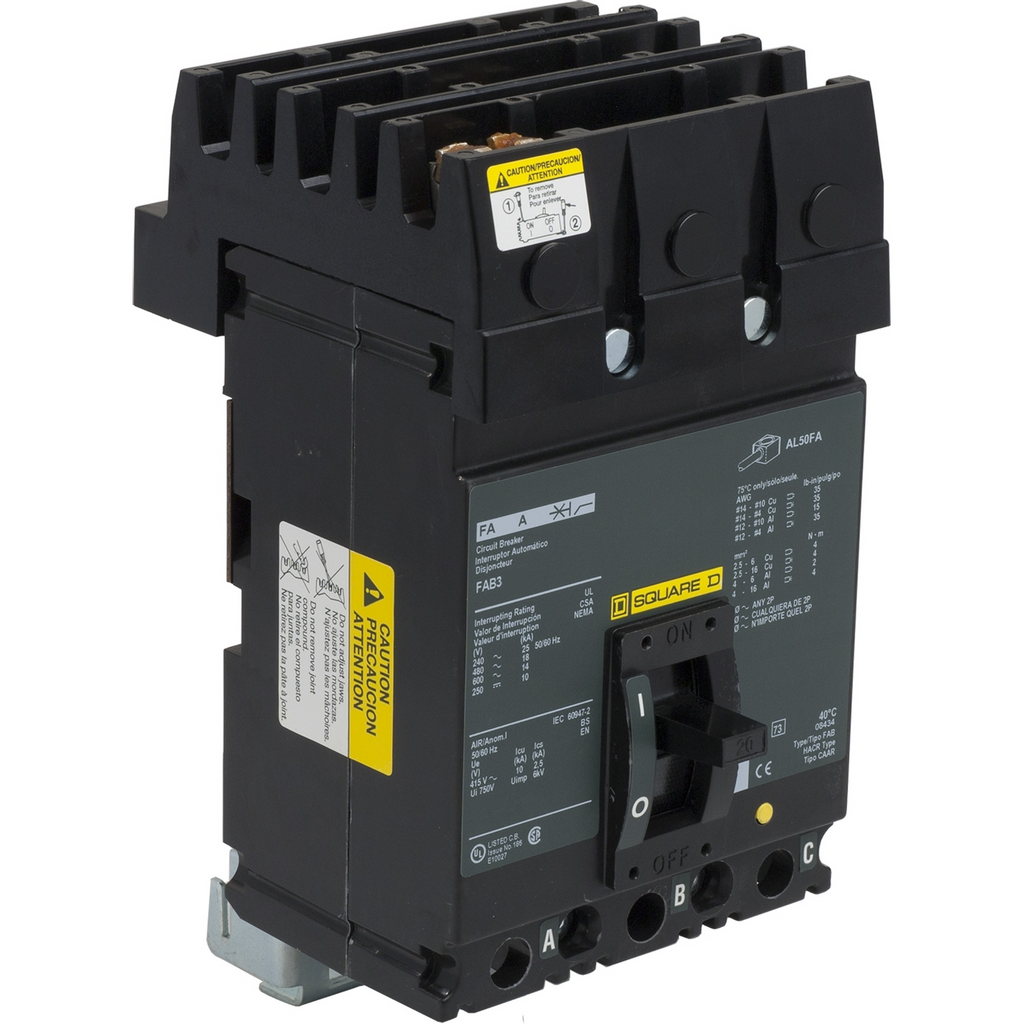

FAB34030 is a 3-pole, 30 amp, 480V thermal magnetic molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This Square D breaker features a robust design and is suitable for demanding electrical applications. The FAB34030 offers long-time and instantaneous trip functions for effective circuit protection. It is built for use in I-Line style plug-in mounting configurations, making it compatible with a wide range of panelboards and switchgear. The breaker is rated for 18kA interrupting capacity at 480V, ensuring safety and reliability under fault conditions.
- Part Number: FAB34030
- Manufacturer: Square D
- Series/Frame: FAB
- Amperage: 30A
- Voltage: 480VAC
- Poles: 3
- Mounting Type: I-Line Style Plug-In
- Protection Type: Thermal Magnetic
- Functions: Long-Time and Instantaneous Trip
- Interrupting Rating: 18kAIC at 480V
- Standards: HACR
- Approvals: UL, CSA
Specifications
- Part Number: FAB34030
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : FAB
- Voltage : 480
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : I-Line Style Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901128694
- Country of Origin : Mexico
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 9
