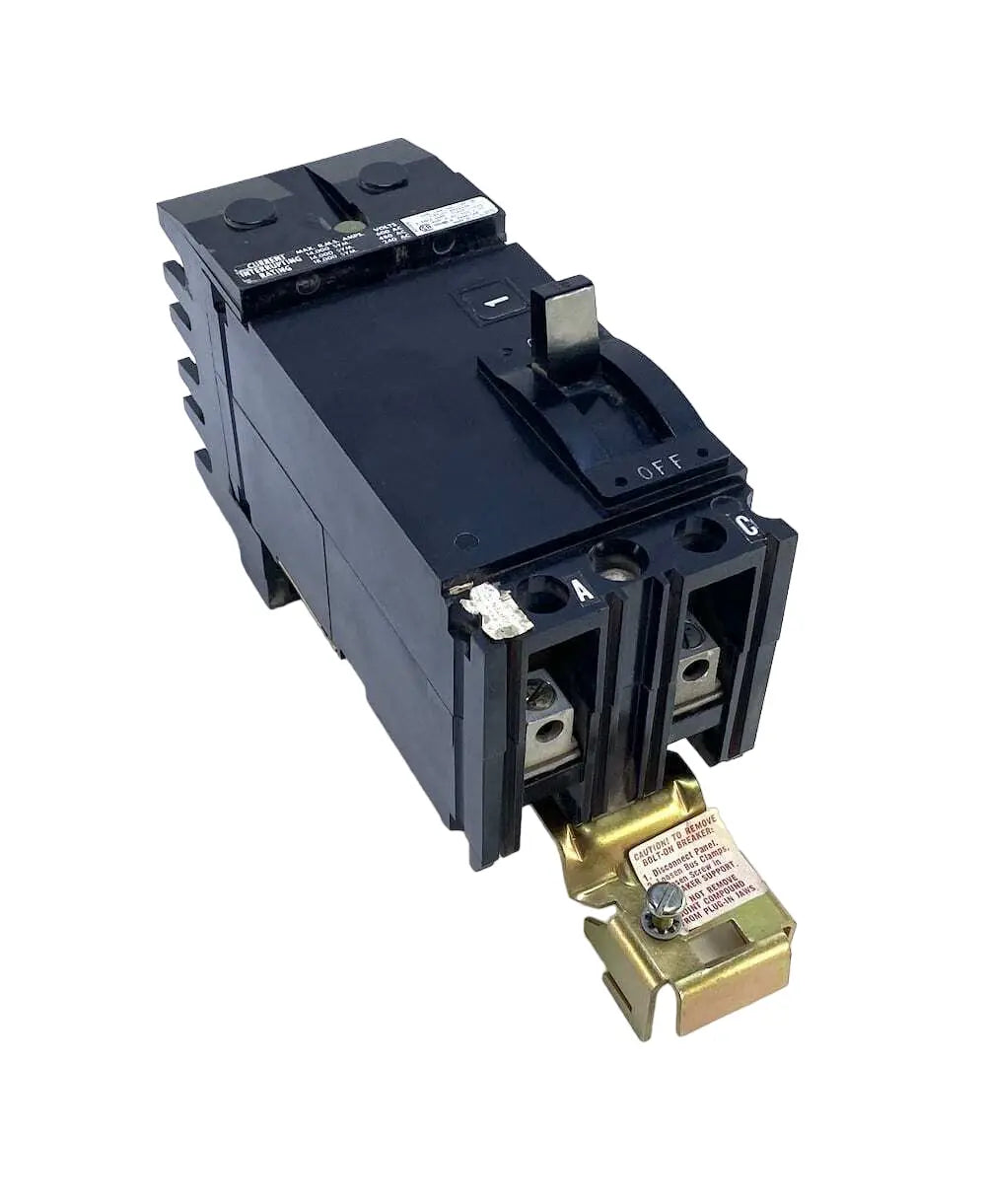

FAB26040BC - Square D 40 Amp 600V 2 Pole Thermal Magnetic I-Line Molded Case Circuit Breaker

FAB26040BC

FAB26040BC is a Square D 40 Amp 600 Volt 2 Pole thermal magnetic molded case circuit breaker designed for reliable power distribution protection.This FA series breaker features an I-Line plug-on mounting type, suitable for panelboards and switchboards. It offers a thermal magnetic trip unit with long-time and instantaneous trip functions. The breaker has a frame type F and supports a voltage rating of up to 600VAC and 250VDC. It is UL and CSA approved, with interrupting ratings of 25kA at 240VAC, 18kA at 480VAC, and 14kA at 600VAC, ensuring high fault current interruption capability.

Key Specifications
• Amperage: 40 Amps
• Voltage Rating: 600VAC, 250VDC
• Poles: 2
• Mounting Type: I-Line Plug-On
• Interrupting Rating: 25kA at 240VAC, 18kA at 480VAC, 14kA at 600VAC
• Series/Frame: FA Series, Frame Type F
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
• Certifications: UL and CSA Approved
• Terminal Wire Size: 12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper
• Dimensions: 3 in W x 4.13 in D x 6 in H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FAB26040BC
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FAB
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 24@480V
• Connection : I-Line Style Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic



Product Data

• Weight : 9
