Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAB26020BC

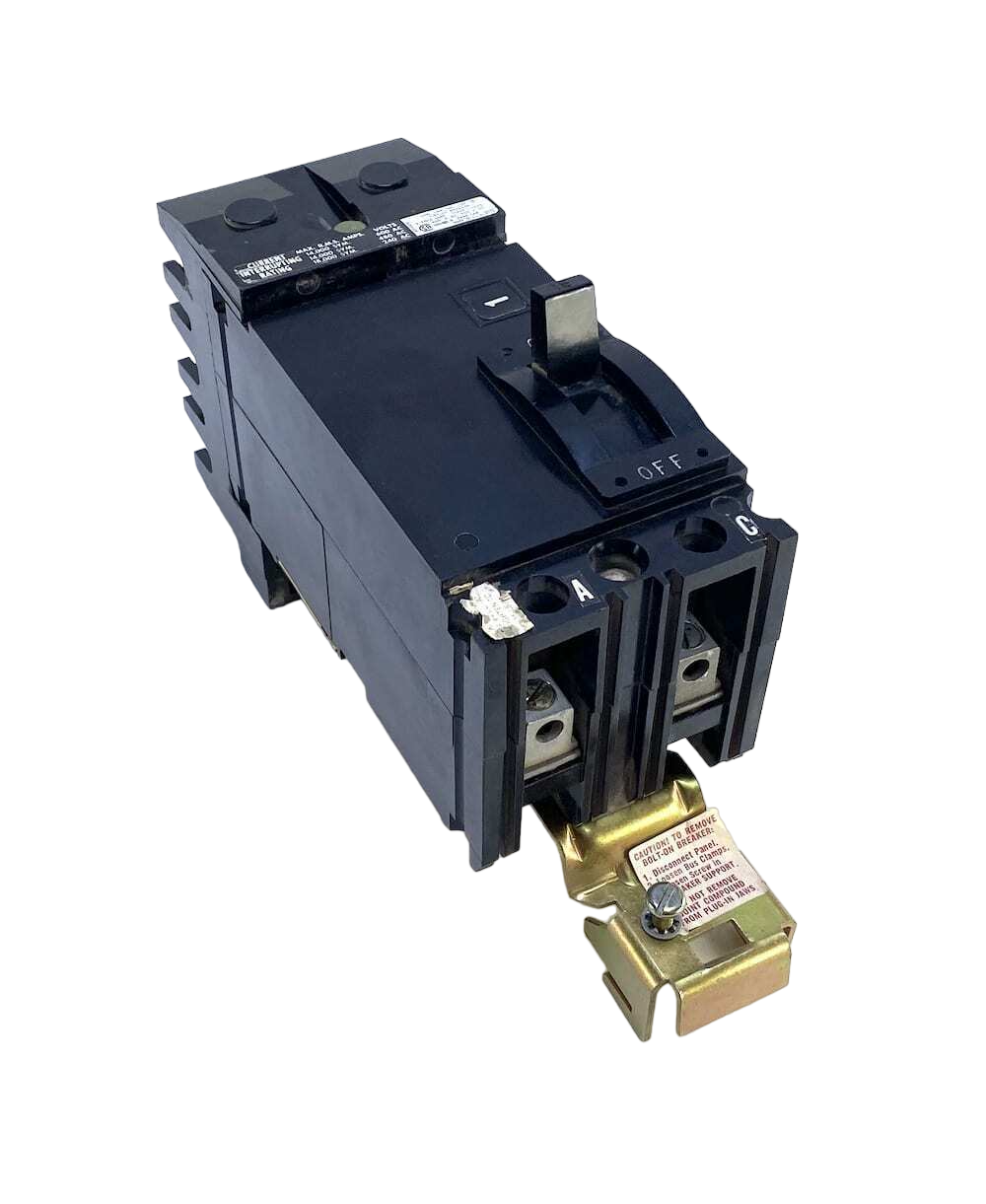

FAB26020BC is a Square D I-Line 2 pole, 20 amp, 600 volt molded case circuit breaker designed for reliable power distribution in commercial and industrial applications. This bolt-on breaker features a thermal magnetic trip unit and is built for use in I-Line panelboards and switchboards. The FAB26020BC is rated for 600V AC, with a 20A current rating and 2 poles. It features a bolt-on mounting style, Frame F, and is suitable for use in Class 650/734/820 I-Line panelboards. The breaker is UL and CSA approved, with an interrupting rating of 25kA at 480V. It supports wire sizes 12-4 AWG aluminum and 14-4 AWG copper, and is designed for thermal magnetic tripping.
- Part Number: FAB26020BC
- Manufacturer: Square D
- Series: I-Line
- Frame: F
- Amperage: 20A
- Poles: 2
- Voltage: 600V AC
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA @ 480V
- Trip Unit: Thermal Magnetic
- Certifications: UL, CSA
- Wire Size: 12-4 AWG Al, 14-4 AWG Cu
Specifications
- Part Number: FAB26020BC
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : FAB
- Voltage : 600
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : I-Line Style Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901530213
- Country of Origin : Mexico
- Dimensions : Length 1.5 ft (0.46 m)
- Weight : 3.001
