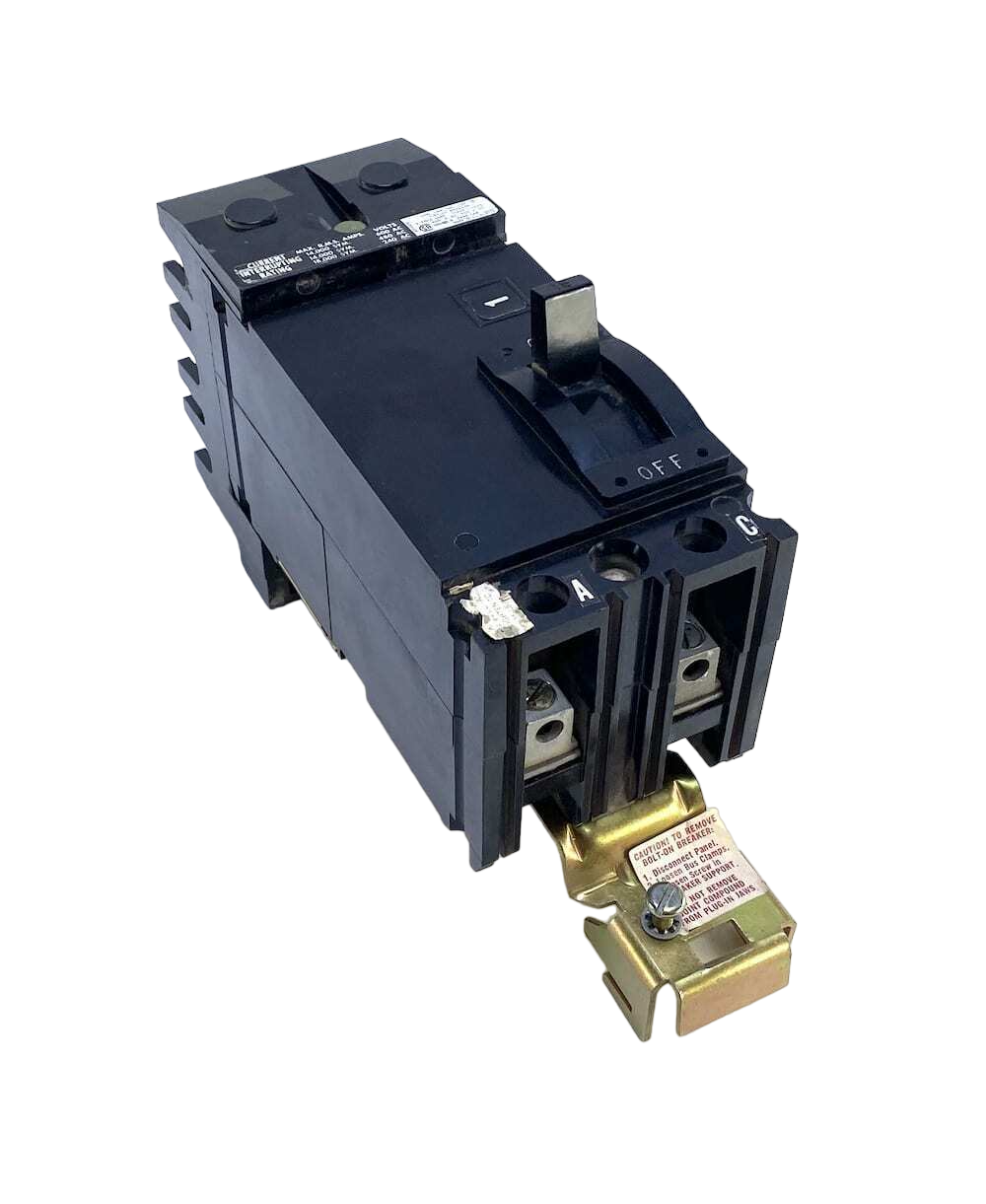

FAB26020AB - Square D 20A 600V 2-Pole Molded Case Circuit Breaker, F Frame, Thermal Magnetic Trip, Plug-On Mount, UL/CSA/NOM Certified

FAB26020AB

FAB26020AB is a Square D molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.

This thermal magnetic trip, plug-on mount breaker features a 20A current rating, 600V voltage rating, and 2 poles for enhanced circuit protection. It is part of the F frame series, suitable for a range of voltage systems including 240V, 480V, and 600V AC, and is certified to UL, CSA, and NOM standards for safety and compliance.

Key Specifications
• Part Number: FAB26020AB
• Manufacturer: Square D
• Amperage: 20A
• Voltage: 600V AC
• Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 25kA @ 240V AC, 18kA @ 480V AC, 14kA @ 600V AC
• Series/Frame: F Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, NOM
• Terminal Wire Size: 12–4 AWG (Aluminum), 14–4 AWG (Copper)
• Application: Power distribution panelboards and switchboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAB26020AB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FAB
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : I-Line Style Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901530190
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4.32
