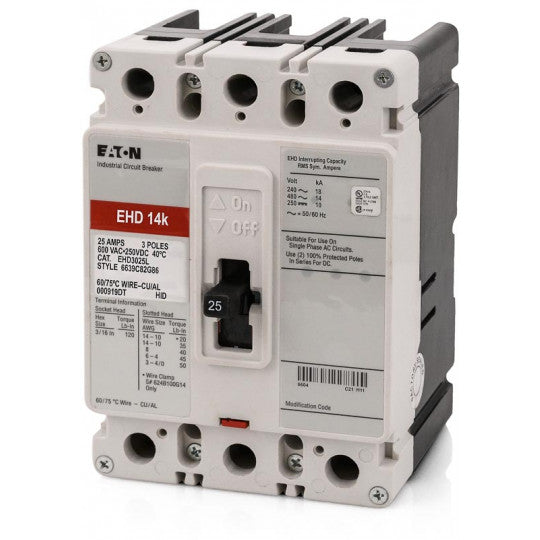

EHD3025 - Cutler Hammer 25 Amp 480V 3 Pole Molded Case Circuit Breaker, Series C EHD Frame, Bolt-On Mounting, 14kA Interrupt Rating, UL Listed

EHD3025

EHD3025 is a Cutler Hammer molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems.

This 3-pole, 25 amp circuit breaker features a 480V AC voltage rating, bolt-on mounting, and a 14kA interrupting capacity at 480V. It is part of the Series C EHD frame family and is suitable for a wide range of applications requiring robust circuit protection.

Key Specifications
• Part Number: EHD3025
• Manufacturer: Cutler Hammer
• Amperage: 25A
• Voltage: 480V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 14kA @ 480V
• Series/Frame: Series C, EHD
• Trip Unit: Thermal Magnetic (T186)
• Certifications: UL Listed
• Weight: 4.45 lb
• Dimensions: 6 in (H) x 4.13 in (W)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EHD3025
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EHD
• Voltage : 480
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 100A/F
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679317082
• GTIN : 00786679317082
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.45
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
