Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
EHD2100

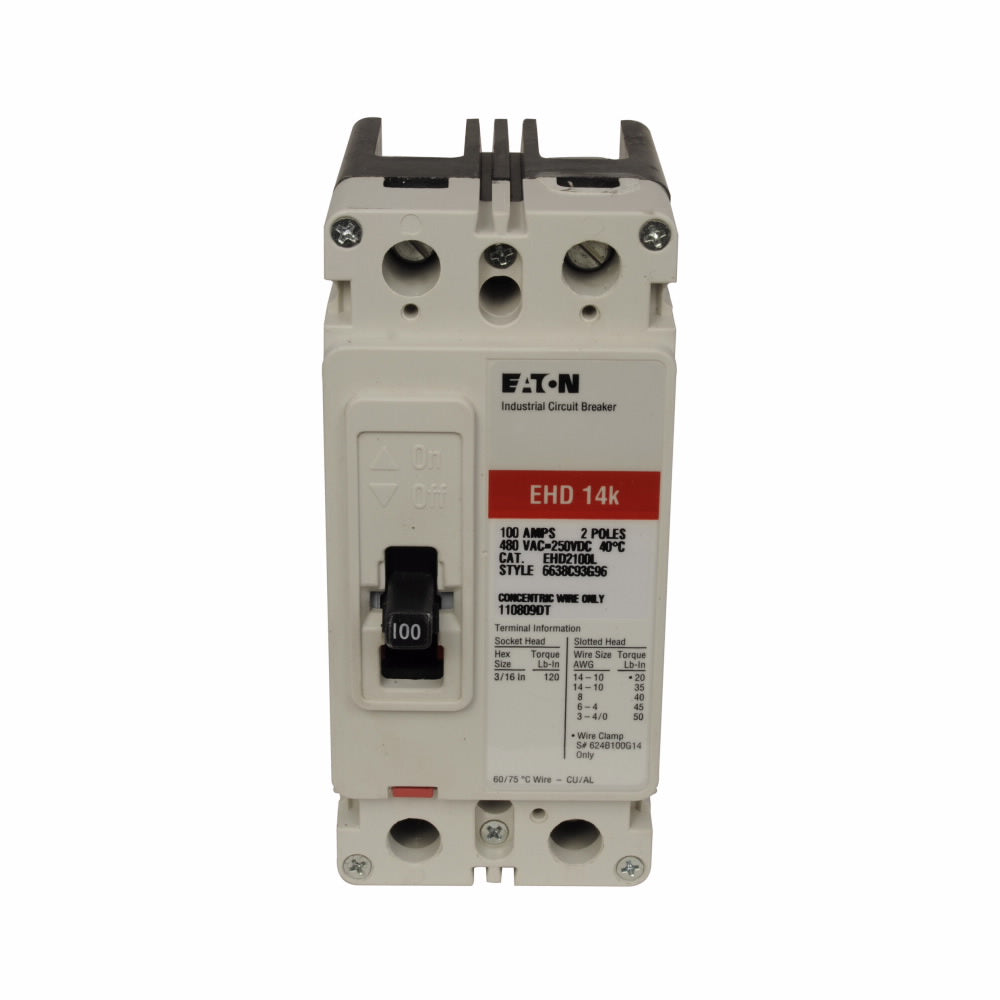

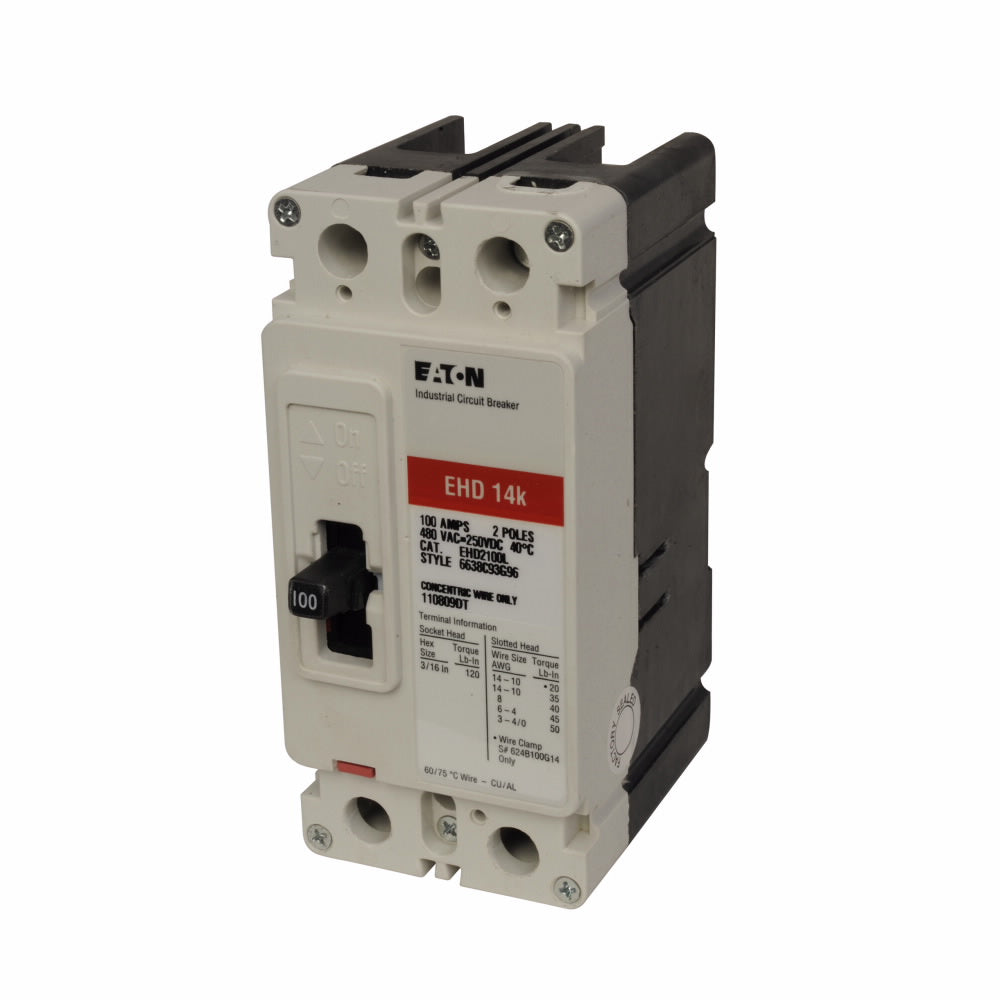

EHD2100 is a Cutler Hammer 2 pole molded case circuit breaker rated for 100 amps and 480 volts AC, designed for reliable circuit protection.This thermal magnetic circuit breaker features a C Series F frame with long-time and instantaneous trip functions, bolt-on mounting, and a 14kA interrupt rating at 480VAC. It supports single-phase applications with load side lug terminals and UL certification.
- Manufacturer: Cutler Hammer
- Part Number: EHD2100
- Amperage: 100A
- Voltage Rating: 480VAC / 250VDC
- Poles: 2
- Frame Type: F Frame, C Series
- Mounting Type: Bolt-On
- Interrupt Rating: 14kA at 480VAC, 18kA at 240VAC
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Connection Type: Load Side Lug
- Phase: Single Phase
- Certifications: UL Listed
Specifications
- Part Number: EHD2100
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EHD
- Voltage : 480
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 14kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679317518
- GTIN : 00786679317518
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
- Weight : 3
- Certification : UL Listed
