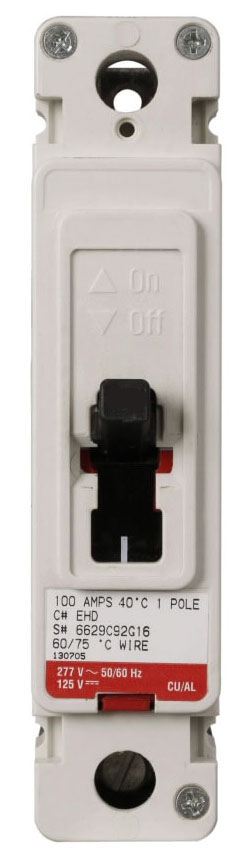

EHD1025 - Eaton 25A 277V 1-Pole EHD Series Molded Case Circuit Breaker, Bolt-On, 14kA Interrupt Rating, Thermal Magnetic Trip

EHD1025

EHD1025 is a 1-pole molded case circuit breaker from Eaton, designed for reliable circuit protection in commercial and industrial applications.

This Eaton EHD Series breaker offers a 25A current rating, 277VAC voltage rating, and a 14kA interrupt rating. It features a thermal magnetic trip unit for both instantaneous and overload protection, with a bolt-on mounting style for secure panel installation. The EHD1025 is engineered for durability and compliance with industry standards, making it a trusted choice for electrical distribution systems.

Key Specifications
• Part Number: EHD1025
• Manufacturer: Eaton
• Amperage: 25A
• Voltage: 277VAC, 125VDC
• Poles: 1
• Mounting Type: Bolt-on (Panel)
• Interrupt Rating: 14kA at 277VAC
• Series/Frame: EHD
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Connection: Feed-thru
• Certifications: Not specified in available data
• Ground Fault: No
• Arc Fault: No

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EHD1025
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EHD
• Voltage : 277
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 14kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 100A/F
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 786679317334
• GTIN : 00786679317334
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 1.38 in (Length/Depth x Height x Width)
• Weight : 1.45
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
