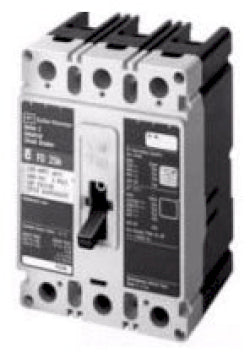

EDB3225L - Eaton 225A 240VAC 3 Pole C Series Molded Case Circuit Breaker 22kA Interrupt

EDB3225L

EDB3225L is a 225 Amp, 3 Pole molded case circuit breaker from Eaton's C Series designed for reliable circuit protection.This Eaton EDB3225L breaker features a 240 VAC/125 VDC voltage rating, 22 kA interrupt rating, and fixed thermal/fixed magnetic trip unit. It is a complete breaker with line and load lugs, suitable for 50/60 Hz applications. The breaker is part of Eaton's F-frame C Series and provides robust protection for industrial and commercial electrical systems.

Key Specifications
• Amperage: 225 Amp
• Voltage Rating: 240 VAC / 125 VDC
• Poles: 3 Pole
• Interrupt Rating: 22 kA at 240 VAC
• Series/Frame: C Series, F-frame
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting Type: Complete breaker, line and load lugs
• Frequency: 50/60 Hz
• Certifications: Eaton standard industrial certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB3225L
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EDB
• Voltage : 240
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : F Frame
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782116976188
• GTIN : 00782116976188
• Country of Origin : Mexico
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 3
• Standards : cULus, IEC
• Certification : cULus, IEC
