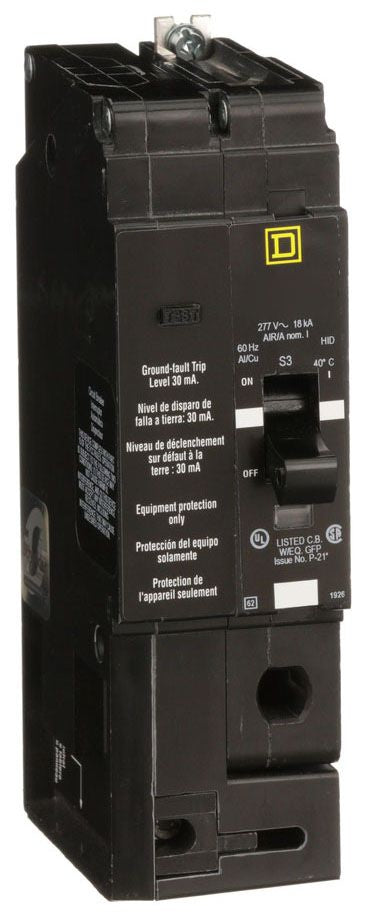

EDB14050EPD - Square D 50A 277VAC 1 Pole Ground Fault Circuit Breaker

EDB14050EPD

EDB14050EPD - Schneider Electric 1-pole thermal magnetic molded case ground fault circuit breaker rated at 50A and 277VAC.

This E-Frame breaker features bolt-on mounting, LI trip functions (long-time and instantaneous), and ground fault equipment protection with 30mA sensitivity for NF panelboards. It offers interrupting ratings of 18kA at 277VAC and 25kA at 120VAC, with lug terminals accepting 14-6 AWG copper or 12-4 AWG aluminum wire.

Key Specifications

• Amperage: 50A
• Voltage: 277VAC
• Poles: 1
• Mounting Type: Bolt-On
• Series/Frame: EDB
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 18kA @ 277VAC, 25kA @ 120VAC
• Protection: Ground Fault (30mA)
• Certifications: cULus, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB14050EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 277
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic

Product Data

• UPC : 785901583622
• GTIN : 00785901583622
• Country of Origin : Mexico
• Dimensions : 6.64 in (168.66 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.1
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 14, AWG 6 Copper, AWG 12, AWG 4 Aluminium
