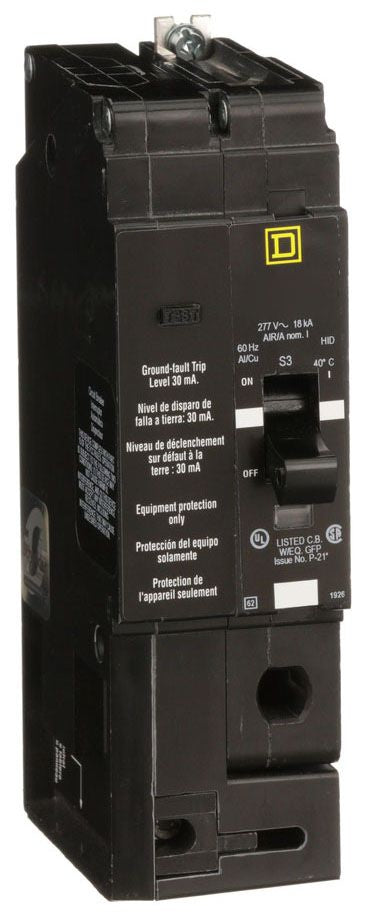

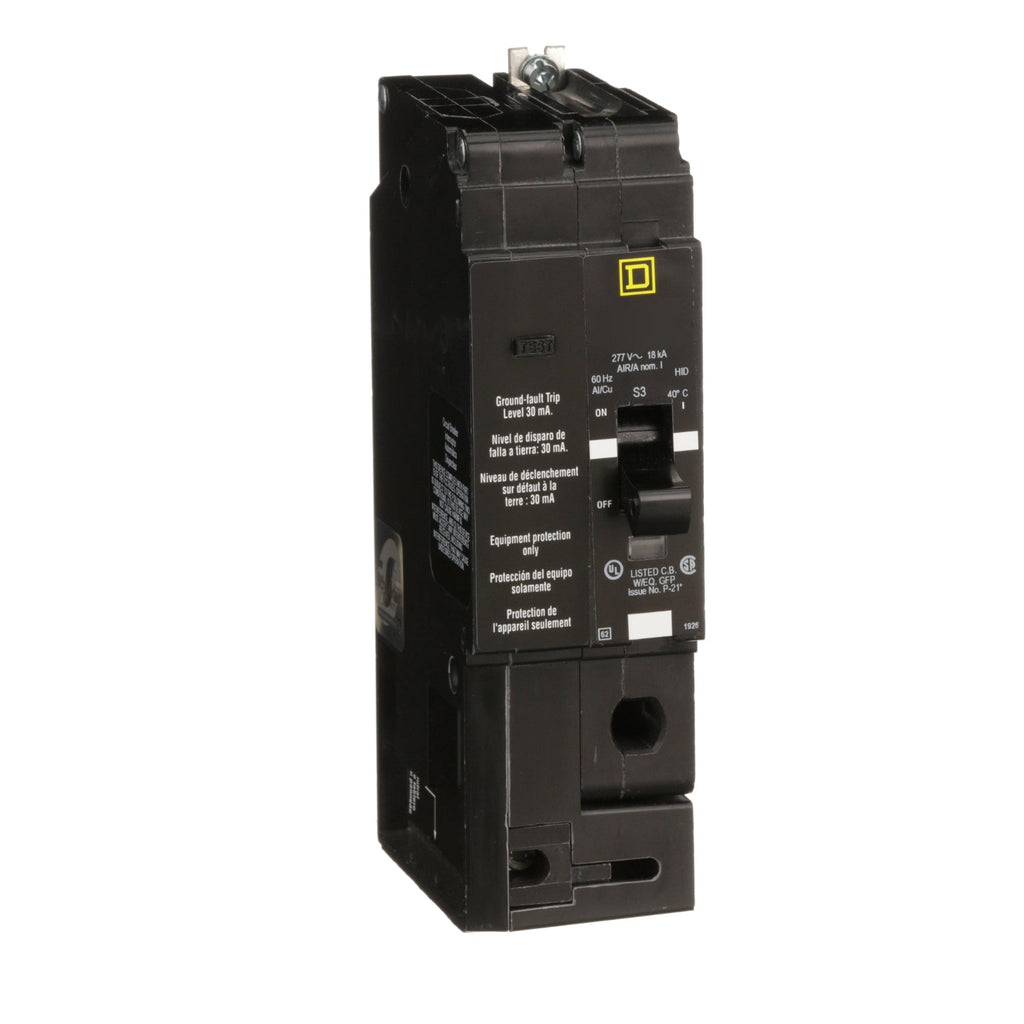

EDB14015EPD - Square D 15A 277V 1 Pole Bolt-On Circuit Breaker E-Frame with Ground Fault Protection

EDB14015EPD

EDB14015EPD is a 1 pole, 15 amp, 277 Volt Bolt-On circuit breaker from Square D designed for reliable overload and short circuit protection.EDB14015EPD features an E-Frame design with a 25kA interrupt rating at 277VAC and includes 30mA ground fault protection for enhanced safety. It is UL listed, CSA, and HOM certified, suitable for lighting panelboards and other applications requiring superior circuit protection.

Key Specifications
• Amperage: 15 Amps
• Voltage Rating: 277 Volts AC
• Poles: 1 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA at 277VAC
• Frame/Series: E-Frame
• Trip Unit: Ground Fault Protection 30mA
• Certifications: UL Listed, CSA, HOM
• Application: Lighting Panelboards
• Environmental: Packaging made with recycled cardboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB14015EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 277
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic

Product Data

• UPC : 785901932758
• GTIN : 00785901932758
• Country of Origin : Mexico
• Dimensions : 6.64 in (168.66 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.11
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 14 to AWG 6, AWG 12 to AWG 4, Cu/Al
