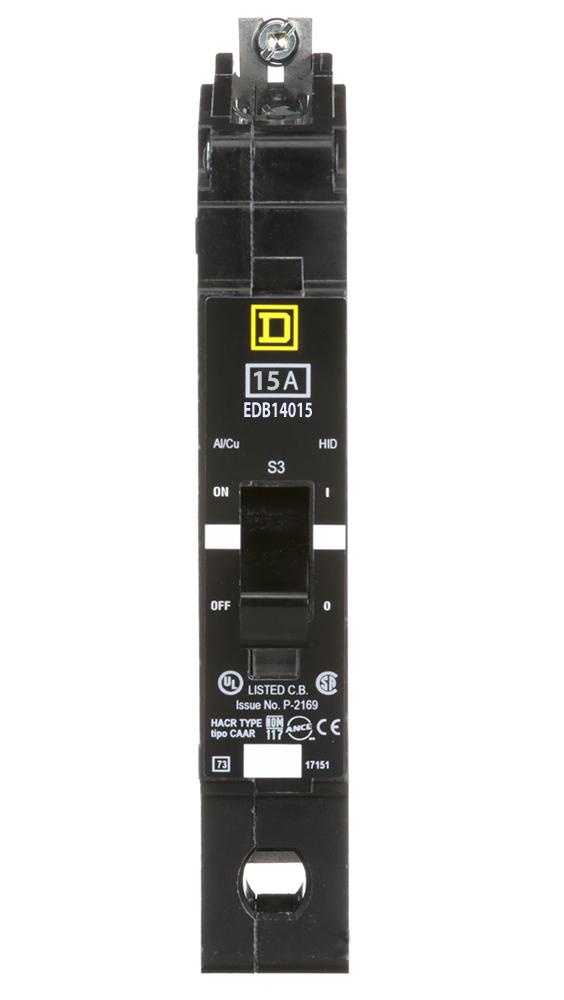

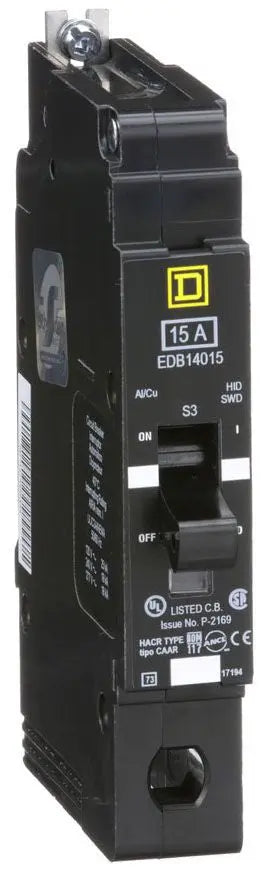

EDB14015 - Schneider Electric (Square D) 1-Pole 15 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

EDB14015

EDB14015 - Schneider Electric E-Frame 1-pole thermal-magnetic circuit breaker rated at 15A, 277VAC with bolt-on mounting.The EDB14015 is a miniature molded case circuit breaker from the EDB series and E-Frame family, featuring LI (long-time and instantaneous) protection against short-circuit and overload. It includes a Visi-Trip indicator for trip status, aluminum lugs accepting AWG 12-6 aluminum or AWG 14-6 copper wires, and is rated for HID and HACR applications in lighting panelboards.

• Part Number: EDB14015
• Manufacturer: Schneider Electric
• Amperage: 15A
• Voltage: 277VAC
• Poles: 1
• Mounting Type: Bolt-On
• Series/Frame: EDB / E-Frame
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 18kA@277VAC, 25kA@120VAC
• Functions: LI (Long-Time/Instantaneous)
• Wire Range: AWG 12-6 Al, AWG 14-6 Cu
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB14015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 277
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901878896
• GTIN : 00785901878896
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.32
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 14 to AWG 6, AWG 12 to AWG 6, Copper/Aluminum
