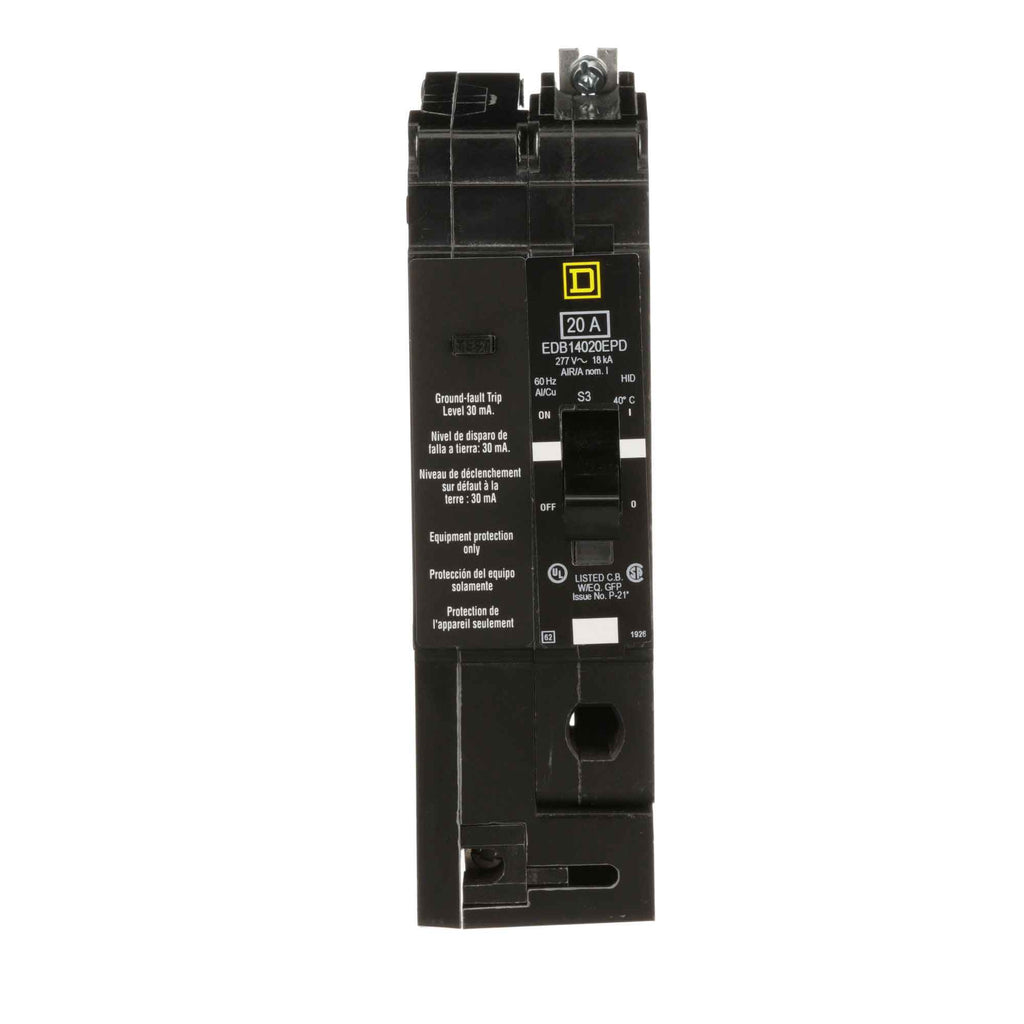

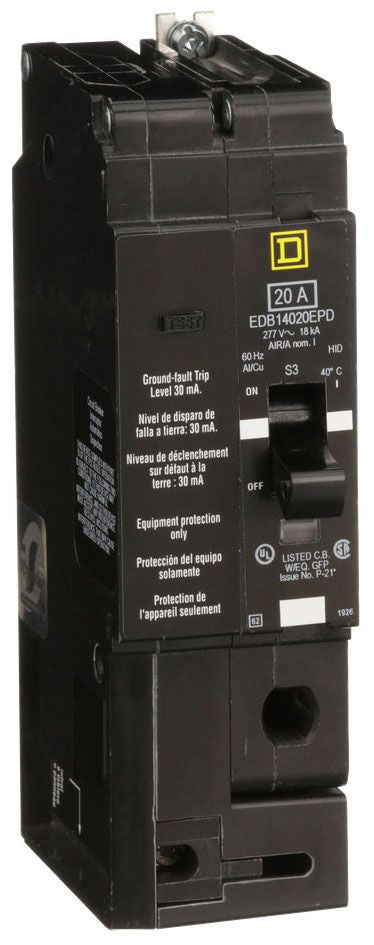

EDB14020EPD - Square D 20A 1P 277V E-Frame Bolt-On GFCI Circuit Breaker, 18kAIC, Thermal Magnetic Trip, cULus IEC

EDB14020EPD

EDB14020EPD is a Schneider Electric E-Frame mini circuit breaker, 20A, 1 pole, 277VAC with ground fault protection and bolt-on mounting. This molded case circuit breaker from the EDB series provides superior overload and short circuit protection for lighting panelboards and equipment, featuring thermal-magnetic trip functions (LI - Long-Time and Instantaneous), 30mA ground fault protection, and Visi-Trip indicator for faster troubleshooting.

• Part Number: EDB14020EPD
• Manufacturer: Schneider Electric (Square D)
• Series/Frame: EDB / E-Frame
• Poles: 1
• Amperage: 20A
• Voltage: 277VAC
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA @ 277V / 480V, 25kA max
• Trip Unit: Thermal-Magnetic (LI)
• Ground Fault Protection: 30mA
• Applications: Switching Duty, HID, HACR rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB14020EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 277
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic

Product Data

• UPC : 785901425045
• GTIN : 00785901425045
• Country of Origin : Mexico
• Dimensions : 6.64 in (168.66 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.1
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 14 to AWG 6, AWG 12 to AWG 4, Copper/Aluminum
