Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
EDB14045SA

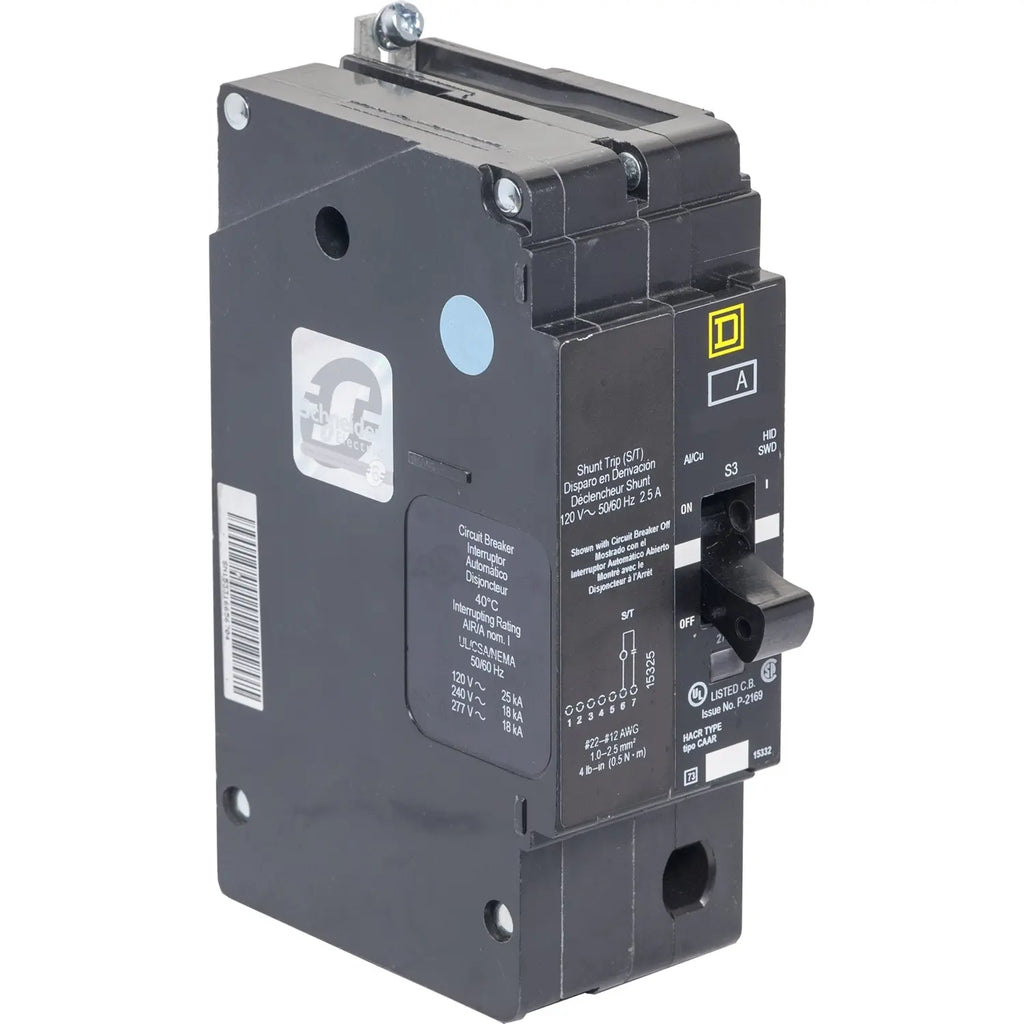

EDB14045SA - Schneider Electric E-Frame mini circuit breaker with shunt trip, 45A, 1 pole, 277VAC, bolt-on mounting.This thermal-magnetic circuit breaker provides superior overload and short circuit protection for lighting panelboards. It features Visi-Trip indicator for faster troubleshooting, supports AWG 12-2/0 aluminum or AWG 14-2/0 copper wire, and offers interrupt ratings of 25kA at 120VAC, 18kA at 240VAC/277VAC. HACR and HID rated for reliable performance.
- Part Number: EDB14045SA
- Manufacturer: Schneider Electric
- Type: Mini Circuit Breaker
- Frame/Series: E-Frame
- Amperage: 45A
- Poles: 1 Pole
- Voltage: 277VAC
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 25kA@120VAC, 18kA@240/277VAC
- Wire Range: AWG 12-2/0 Al, AWG 14-2/0 Cu
- Certifications: HACR, HID Rated
Additional Information
complete with 120V shunt trip
Specifications
- Part Number: EDB14045SA
- Manufacturer : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : EDB Series
- Type : EDB
- Voltage : 277
- Amperage : 45
- Phase : 1
- Poles : 1
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- Country of Origin : Mexico
- Weight : 1
- Standards : cULus, IEC
- Certification : cULus, IEC
