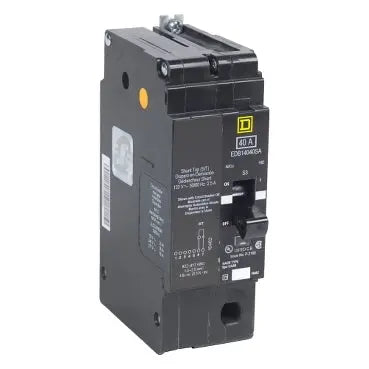

EDB14040SA - Schneider Electric (Square D) 1-Pole 40 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB14040SA

EDB14040SA - Schneider Electric E-Frame miniature circuit breaker with shunt trip, 40A, 1 pole, 277VAC, bolt-on mounting.This thermal-magnetic circuit breaker provides superior overload and short circuit protection for lighting panelboards. It features a factory-installed shunt trip for remote tripping capability, E-Frame design rated up to 125A, and Visi-Trip indicator for faster troubleshooting. Rated for 120/240/277VAC at 50/60Hz (UL/CSA), with bolt-on mounting and wire compatibility for AWG 14-2/0 copper or AWG 12-2/0 aluminum.

• Amperage: 40A
• Voltage: 277VAC
• Poles: 1
• Frame/Series: E-Frame EDB
• Mounting Type: Bolt-on
• Trip Unit: Thermal-magnetic
• Interrupt Rating: 25kA @ 120VAC, 18kA @ 240/277VAC
• Shunt Trip: Included
• Application: Lighting panelboards
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB14040SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 277
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901932765
• GTIN : 00785901932765
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.061
• Panel Type : Square D NF Panelboards
• Standards : cULus, IEC
• Certification : cULus, IEC
