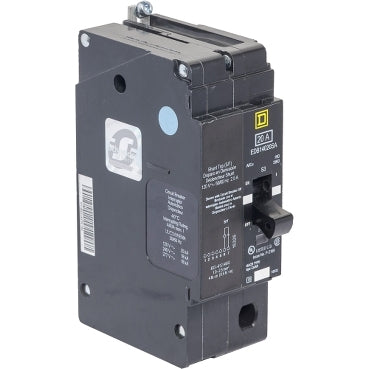

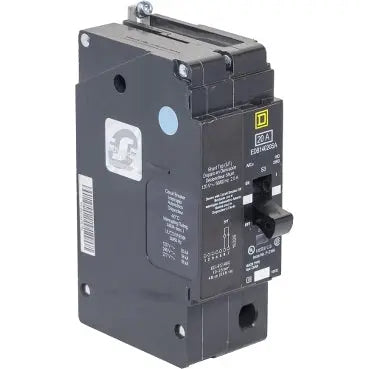

EDB14030SA - Schneider Electric (Square D) 1-Pole 30 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB14030SA

EDB14030SA - Schneider Electric mini circuit breaker, E-Frame, 30A, 1 pole, 277VAC, bolt-on with shunt trip.

This EDB14030SA molded case circuit breaker provides superior overload and short circuit protection for lighting panelboards and NF panelboards. It features a thermal-magnetic trip unit, trip indicator, and bolt-on mounting. Rated for high-intensity discharge (HID) and heating, air conditioning, refrigeration (HACR) applications with aluminum or copper lugs (AWG 14-6 Cu, AWG 12-6 Al).

Key Specifications

• Amperage: 30A
• Poles: 1 Pole
• Voltage: 277 VAC
• Mounting Type: Bolt-On
• Interrupt Rating: 25 kA @ 120 VAC; 18 kA @ 240/277 VAC
• Frame/Series: E-Frame / EDB
• Trip Unit: Thermal-Magnetic
• Shunt Trip: Yes
• Wire Range: AWG 14-6 Copper; AWG 12-6 Aluminum
• Trip Indicator: Yes
• HID Rated: Yes
• HACR Rated: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB14030SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 277
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901453314
• GTIN : 00785901453314
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.061
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 6 aluminum
  AWG 14...AWG 6 copper
