Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED61B040

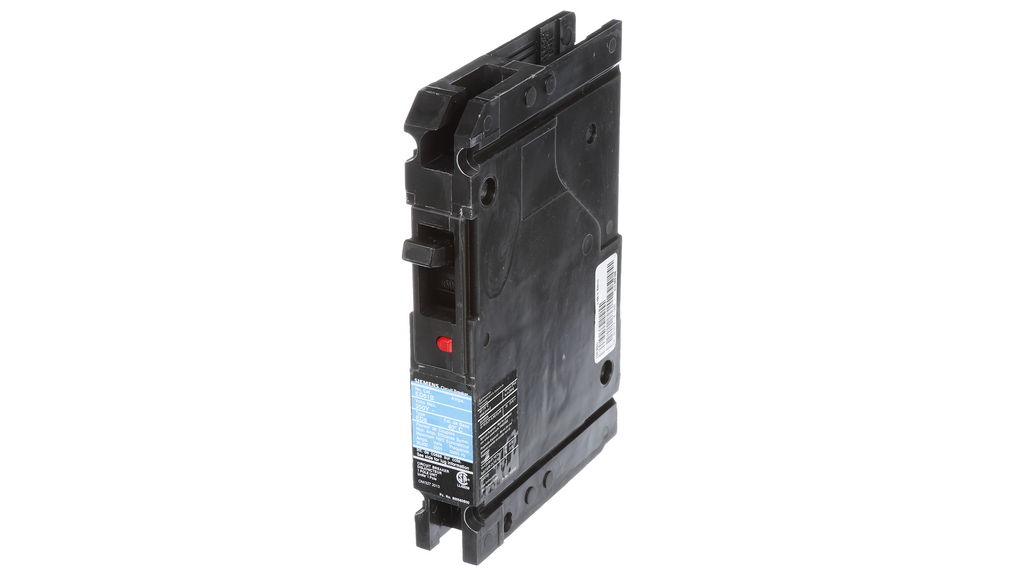

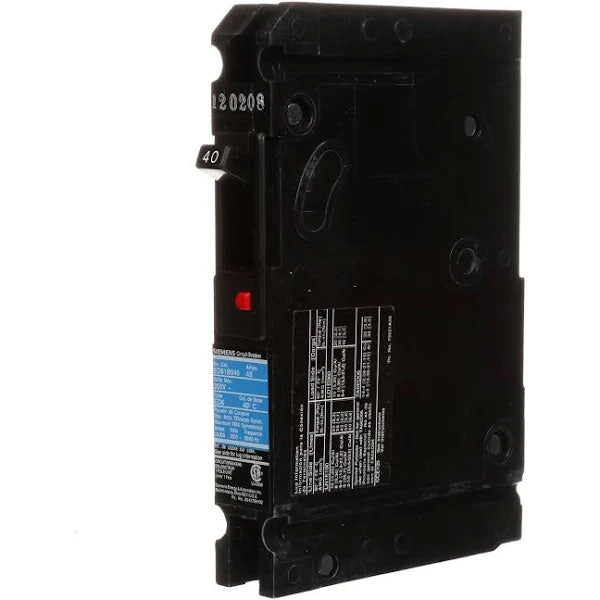

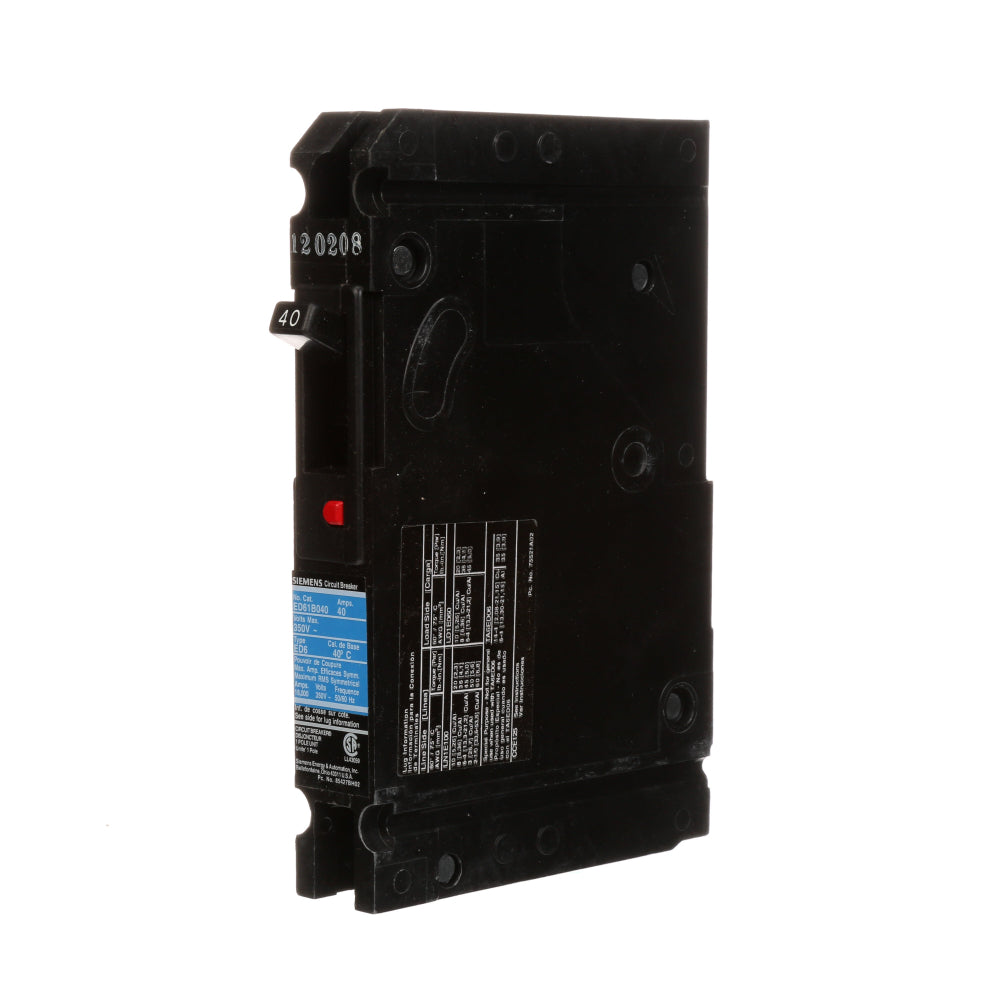

ED61B040 is a 1 pole thermal magnetic molded case circuit breaker manufactured by Siemens for low voltage power distribution applications. This breaker is designed for reliable overcurrent protection in residential, commercial, and industrial electrical systems with a compact ED frame design. The ED61B040 features stud terminal connections and meets UL 489 and IEC 60947-2 standards for safety and performance. Key Specifications
- Part Number: ED61B040
- Manufacturer: Siemens
- Number of Poles: 1
- Amperage Rating: 40 Amps at 40 degrees C
- Voltage Rating: 347/600 VAC
- Trip Unit: Thermal Magnetic
- Terminal Connection: Stud
- Frequency Rating: 50/60 Hz
- Interrupt Rating: 30 KAIC at 347V
- Standards: UL 489, IEC 60947-2
- Frame Type: ED
Specifications
- Part Number: ED61B040
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 40
- Phase : 1
- Poles : 1
- AIC rating : 30kA@347V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643218499
- GTIN : 00783643218499
- Country of Origin : Mexico
- Dimensions : 0.787 x 4.724 x 5.920
- Weight : 3.699
- Certification : IEC Certified, UL Listed
- Wire Size : AWG 10 to AWG 4, Cu/AL
