Description
ED61B020L

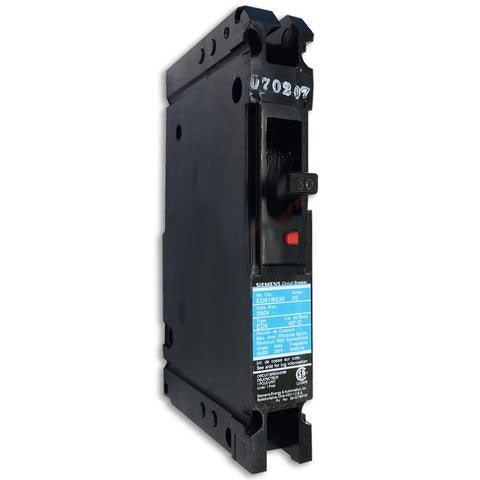

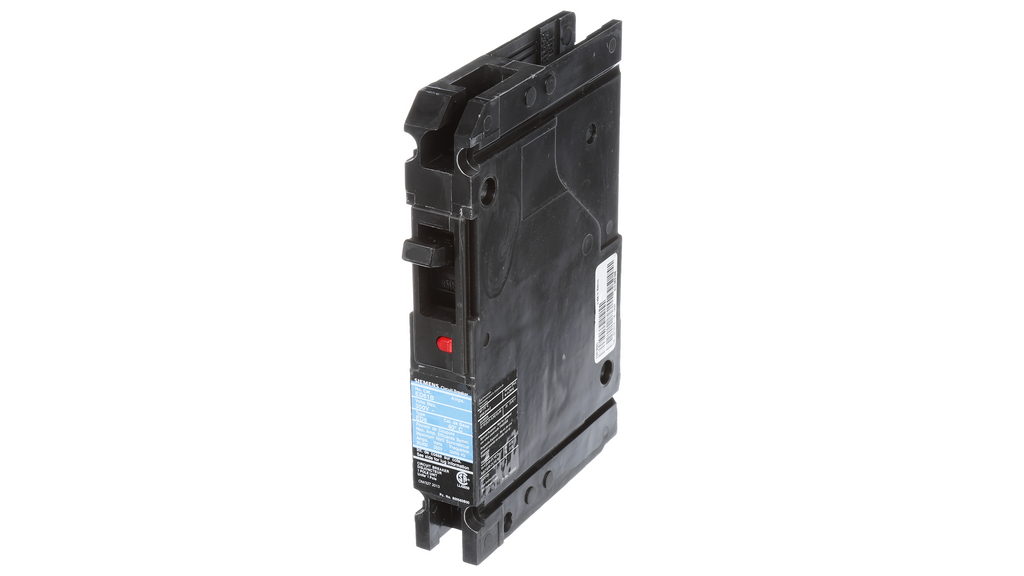

ED61B020L is a Siemens 20 amp, 1-pole molded case circuit breaker designed for 600 Volt applications with an ED frame.
This circuit breaker features a thermal magnetic trip unit and a standard interrupting capacity of 30kA at 347V. It is a bolt-on type breaker from the Siemens Sentron series, suitable for low voltage power distribution and protection. The breaker includes line and load side lug terminals and is rated for operation at 40 degrees Celsius.
- Amperage: 20A
- Voltage Rating: 600V AC
- Poles: 1
- Frame Type: ED
- Mounting Type: Bolt-On
- Interrupt Rating: 30kA @ 347V
- Trip Unit: Thermal Magnetic
- Series: Sentron
- Operating Temperature: 40¡C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ED61B020L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 30kA@347V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- Dimensions : 0.787 x 4.724 x 5.913
- Weight : 3
- Certification : Ul Listed, IEC
