ED61B020 - Siemens 20 Amp 1 Pole 600V Molded Case Circuit Breaker ED Frame Thermal Magnetic

ED61B020

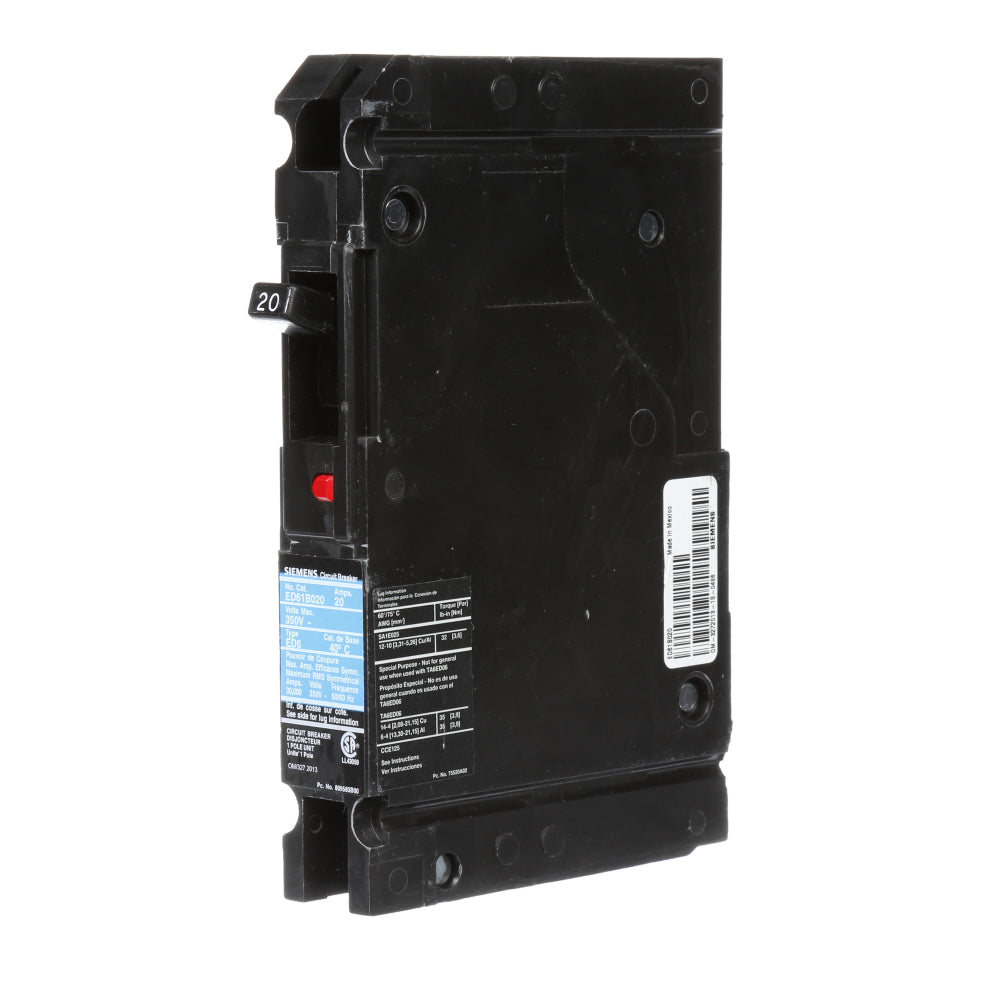

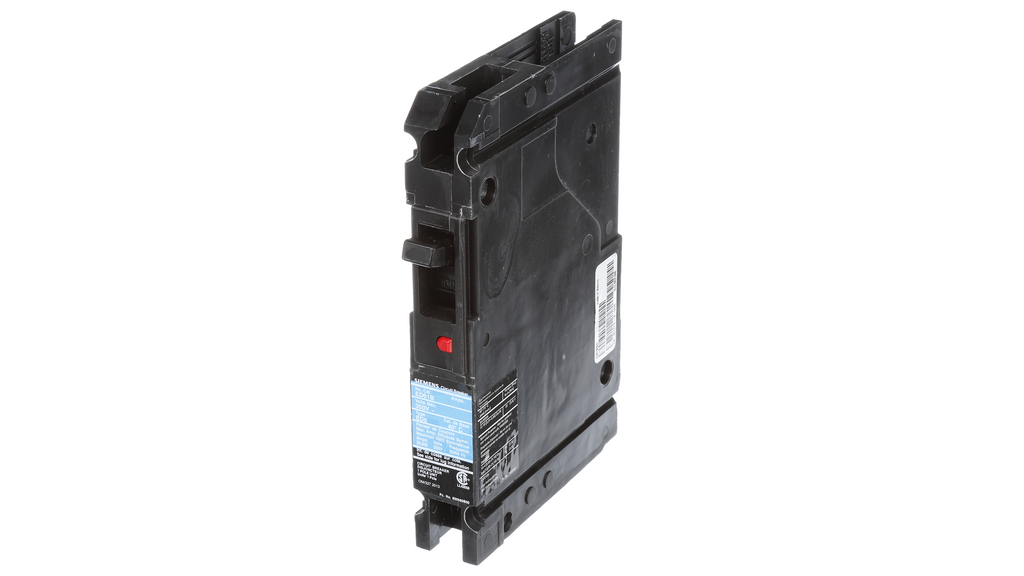

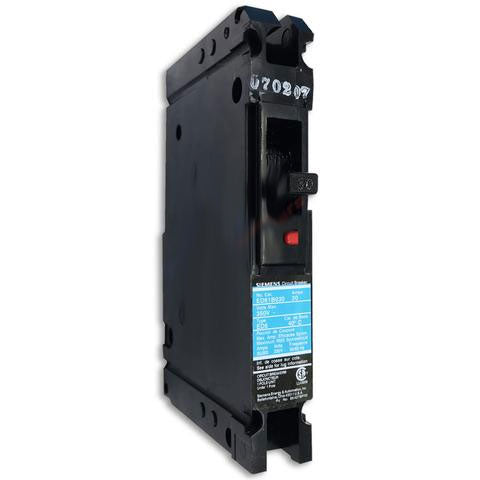

ED61B020 is a Siemens 20 Amp, 1 Pole molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.This Siemens ED Frame breaker features a thermal magnetic trip unit with a 600V voltage rating and a 30kA interrupting capacity at 347V. It is bolt-on mounted and meets UL 489 and IEC 60947-2 standards, ensuring high safety and performance. The breaker supports wire ranges of 14-10 AWG copper and 12-10 AWG aluminum and is rated for operation at 40 degrees Celsius.

• Amperage: 20 Amps
• Voltage Rating: 347/600 VAC
• Poles: 1 Pole
• Mounting Type: Bolt-on
• Interrupt Rating: 30kA at 347V
• Series/Frame: ED Frame
• Trip Unit: Thermal Magnetic
• Wire Range: 14-10 AWG Cu, 12-10 AWG Al
• Standards: UL 489, IEC 60947-2
• Operating Temperature: 40¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED61B020
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 30kA@347V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643218451
• GTIN : 00783643218451
• Country of Origin : Mexico
• Dimensions : 0.787 x 4.724 x 5.912
• Weight : 3.752
• Certification : IEC Certified, UL Listed
• Wire Size : AWG 14 to AWG 10, AWG 12 to AWG 10, Copper/Aluminum
