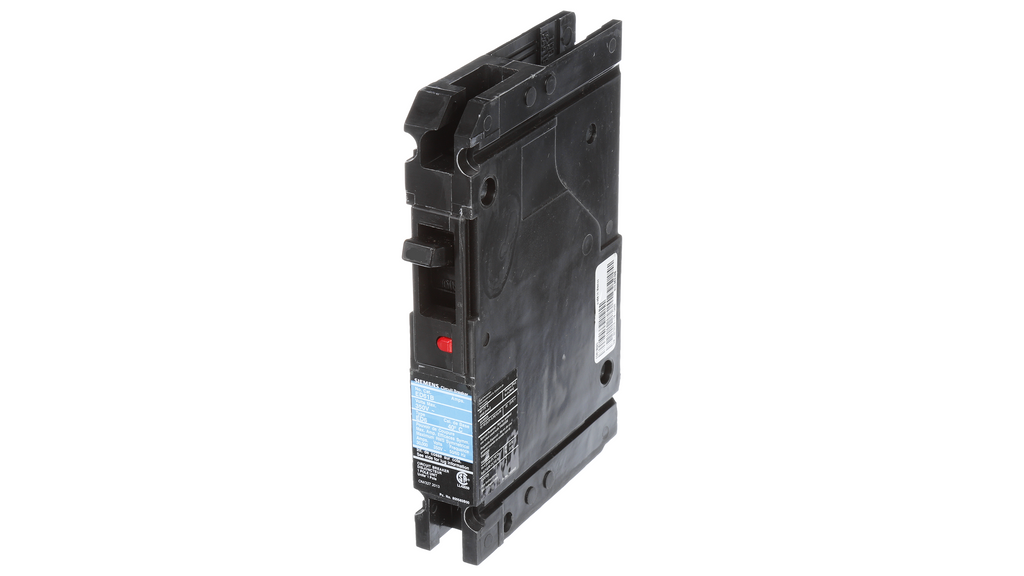

ED61B015 - Siemens 15A 1-Pole 347V Thermal Magnetic Molded Case Circuit Breaker ED6 Frame

ED61B015

ED61B015 is a Siemens Sentron molded case circuit breaker designed for low voltage power distribution applications. This 1-pole thermal magnetic breaker provides reliable overcurrent protection with a 15 ampere rating and 347 volt AC operational voltage, delivering a 30 kA interrupt rating for standard breaking capacity. The ED frame design supports panel mounting with load lug connections and accommodates 14 to 10 AWG copper or 12 to 10 AWG aluminum wire. Operating at 50/60 Hz frequency with a standard 40 degree Celsius temperature rating, this breaker meets UL 489 and IEC 60947-2 standards for safety and performance. The non-interchangeable trip unit provides thermal magnetic protection with varying actuator options and features a blue label for easy identification. All ED frame breakers support reverse connection capability for flexible installation configurations.

• Amperage Rating: 15 A
• Voltage Rating: 347 VAC
• Number of Poles: 1
• Frame Type: ED
• Trip Type: Thermal Magnetic
• Interrupt Rating: 30 kA
• Frequency: 50/60 Hz
• Temperature Rating: 40 deg C
• Wire Size: 14 to 10 AWG copper, 12 to 10 AWG aluminum
• Connection Type: Load Lug
• Mounting Type: Panel
• Certifications: UL 489, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED61B015
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 30kA@347V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643218444
• GTIN : 00783643218444
• Country of Origin : Mexico
• Dimensions : 0.787 x 4.724 x 5.910
• Weight : 3.699
• Certification : IEC Certified, UL Listed
• Wire Size : 14 to 10 AWG Copper, 12 to 10 AWG Aluminum
