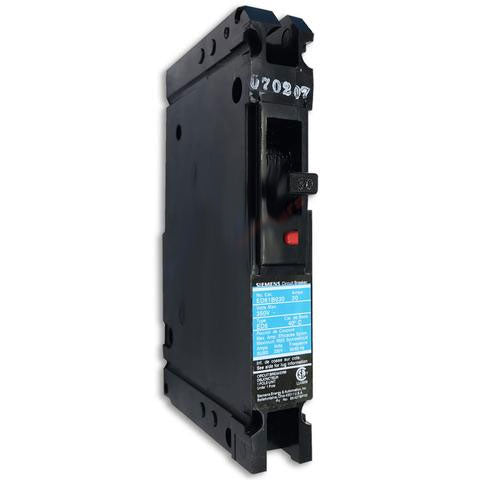

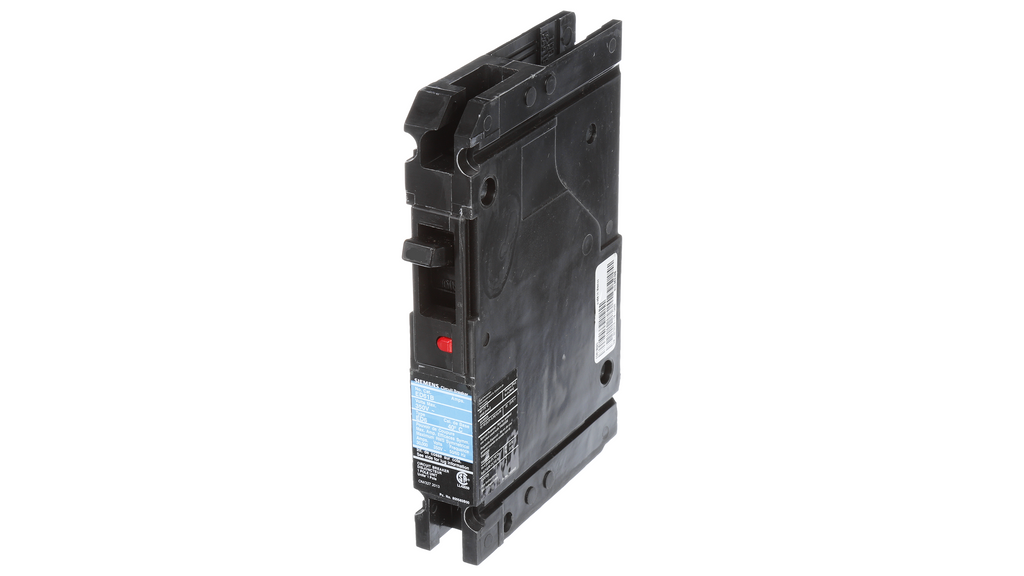

ED61B035 - Siemens 35 Amp 1 Pole 600V Thermal Magnetic Molded Case Circuit Breaker

ED61B035

ED61B035 is a 1-pole molded case circuit breaker from Siemens designed for industrial and commercial electrical applications requiring reliable overload and short-circuit protection.

This thermal-magnetic trip unit breaker features bolt-on mounting and is suitable for use in LT panels, distribution boards, MCC/PCC systems, industrial machines, HVAC systems, and commercial electrical installations. The adjustable trip settings enable precise coordination with downstream devices for enhanced system safety and protection against overloads, short circuits, and earth faults when equipped.

• Amperage: 35 Amps
• Voltage Rating: 600 Volts AC
• Number of Poles: 1 Pole
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic
• Frame Type: ED
• Breaking Capacity: 30 kA
• Wire Size: Lug Kit SA1E035 (#14-#10 Cu / #12-#10 Al)
• Dimensions: 2 Inch Wide x 6.35 Inch High x 3.92 Inch Deep
• Weight: 1.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED61B035
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 35
• Phase : 1
• Poles : 1
• AIC rating : 30kA@347V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643218482
• GTIN : 00783643218482
• Country of Origin : Mexico
• Dimensions : 0.787 x 4.724 x 5.918
• Weight : 1.239
• Certification : IEC Certified, UL Listed
• Wire Size : 10 to 4 AWG Copper/Aluminum
