Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED61B030L

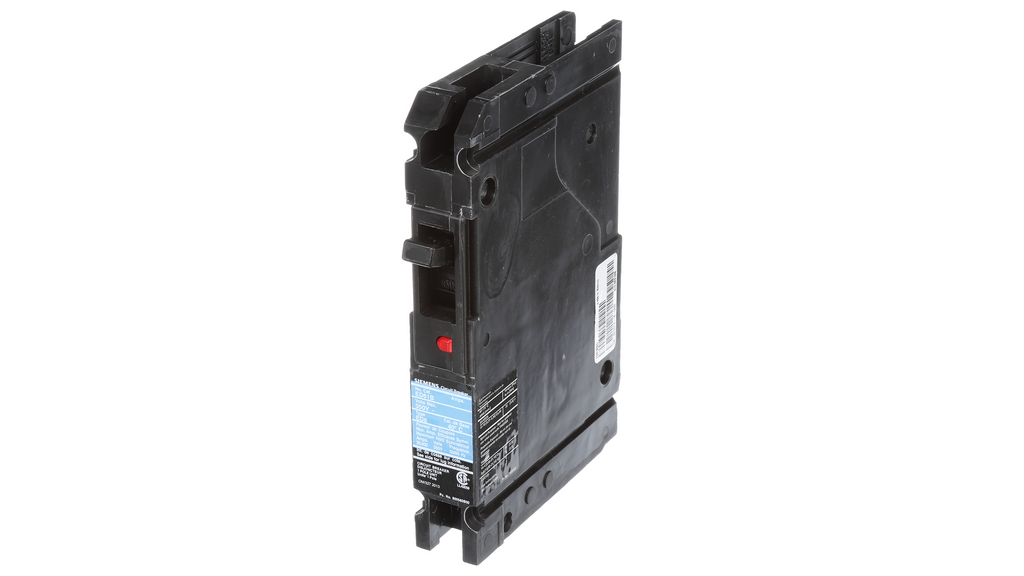

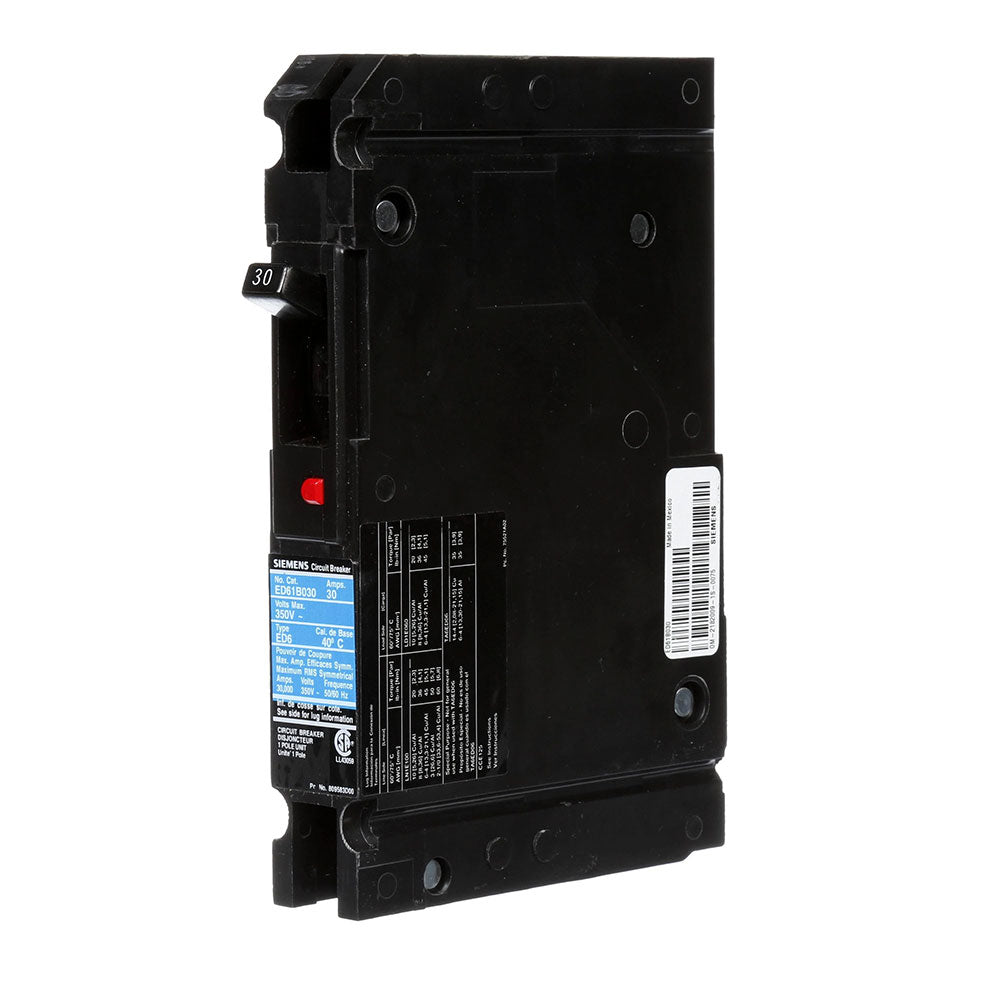

ED61B030L is a single-pole, 30 amp, 600 volt molded case circuit breaker from the Siemens Sentron Series, designed for reliable protection in commercial and industrial applications.This Siemens ED61B030L circuit breaker features a feed-thru connection style, standard interrupting capacity of 30kA at 347V, and is rated for operation at 40 degrees Celsius. It is a bolt-on mounting type, suitable for use in panelboards and switchboards requiring dependable overcurrent protection.
- Part Number: ED61B030L
- Manufacturer: Siemens
- Series: Sentron
- Type: ED
- Poles: 1
- Amps: 30A
- Voltage: 600V
- Interrupt Rating: 30kA @ 347V
- Mounting: Bolt-On
- Connection: Feed-Thru
- Application: Standard 40C Breaker
- Trip Unit: LI (Long-Time and Instantaneous)
Specifications
- Part Number: ED61B030L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 30kA@347V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- Dimensions : 0.787 x 4.724 x 5.917
- Weight : 3
- Certification : Ul Listed, IEC
