Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED23B100L

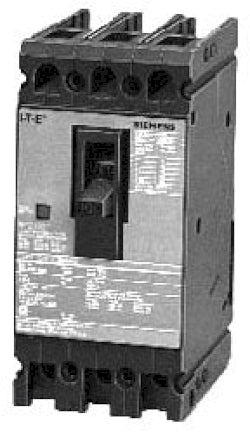

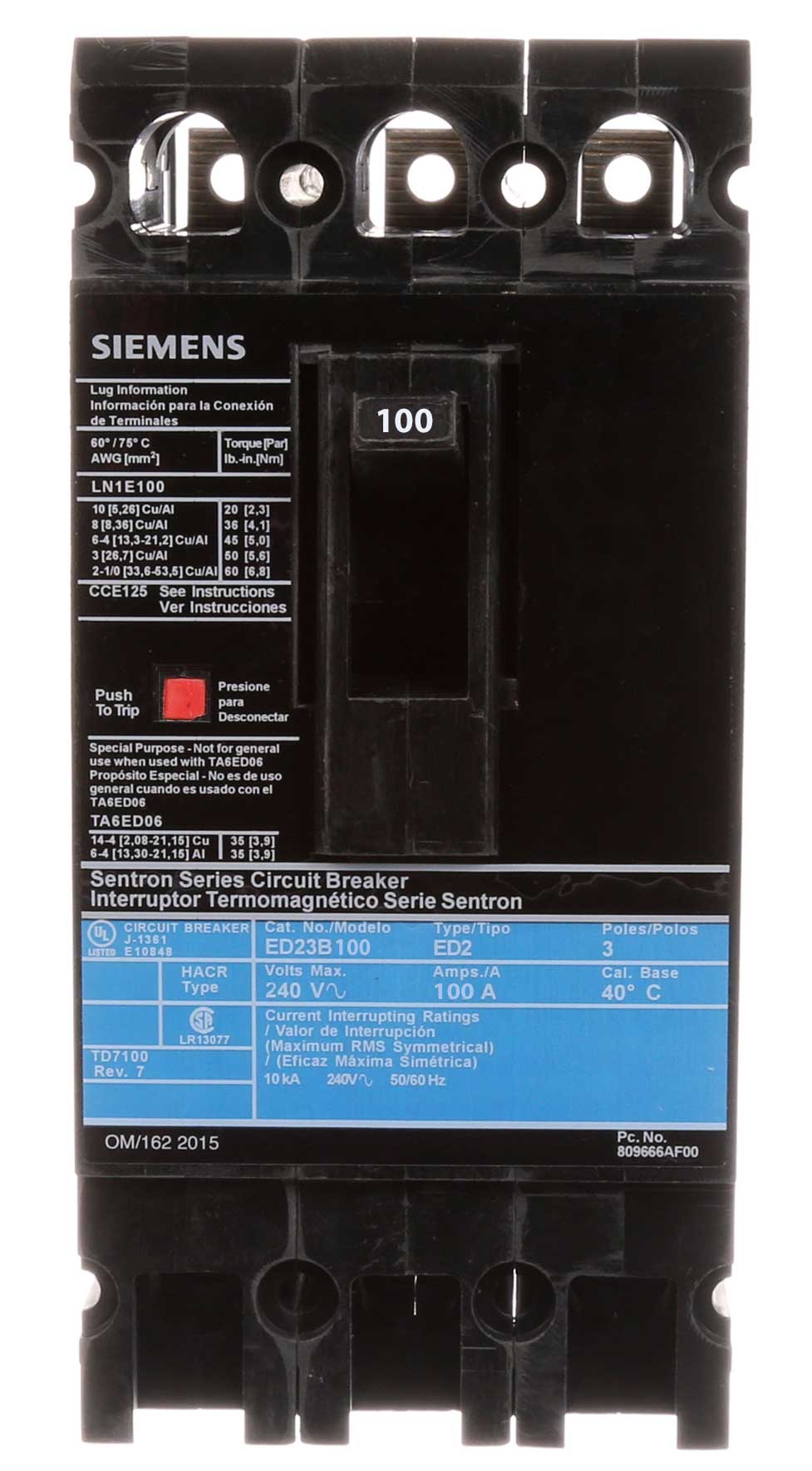

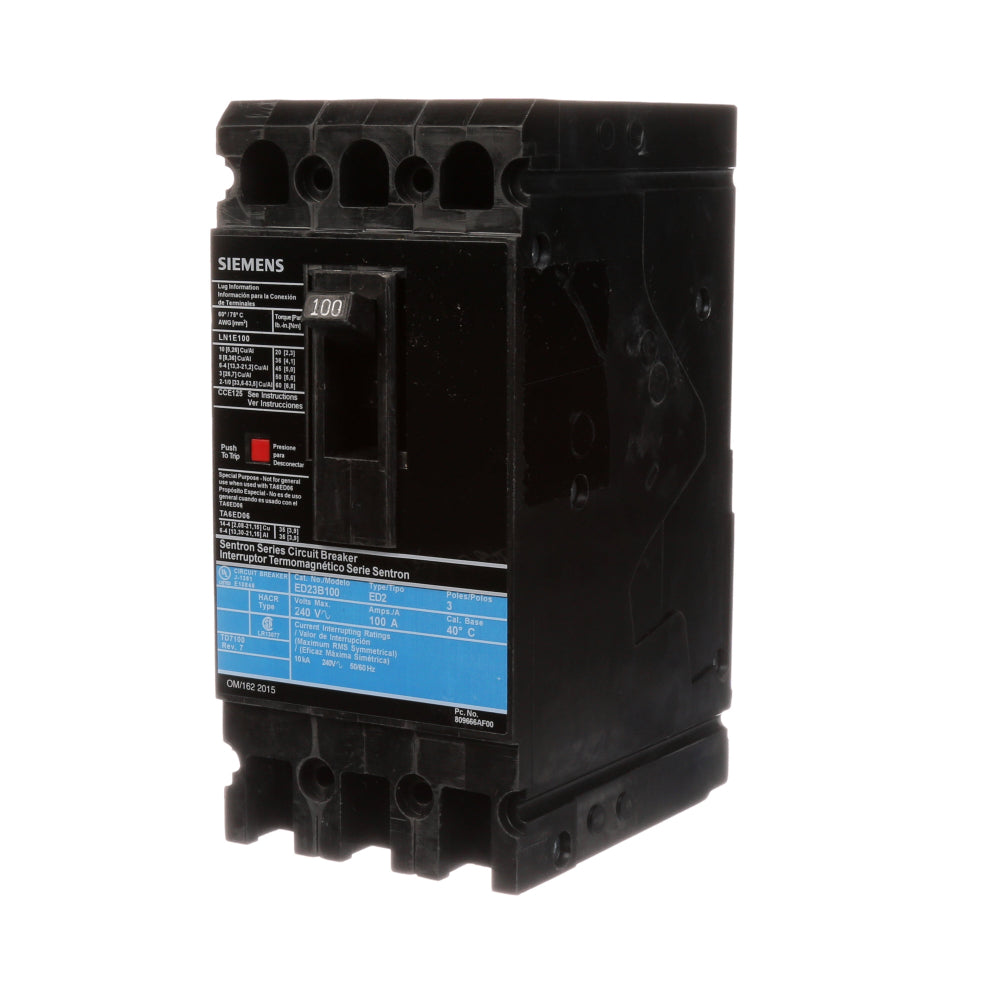

ED23B100L is a 3-pole, 100 amp, 240 VAC molded case circuit breaker from Siemens Sentron Series, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a thermal magnetic trip unit and is suitable for use in standard load centers and panelboards. The ED23B100L is built with an ED frame and offers a 10 kA interrupting rating at 240 VAC, meeting UL 489 and IEC 60947-2 standards. It is rated for operation at 40°C and supports wire sizes from 10 to 1/0 AWG copper or aluminum. The breaker is feed-thru capable and may be reverse connected as needed.
- 3-Pole
- 100 Amp
- 240 VAC
- Thermal Magnetic Trip Unit
- 10 kA Interrupting Rating at 240 VAC
- ED Frame
- Sentron Series
- UL 489 / IEC 60947-2 Certified
- 40°C Operating Temperature
- 10 to 1/0 AWG Copper/Aluminum Wire Range
- Feed-Thru Capable
- Reverse Connection Permitted
Specifications
- Part Number: ED23B100L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643318915
- GTIN : 00783643318915
- Country of Origin : Mexico
- Weight : 0.009
