Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED23B020L

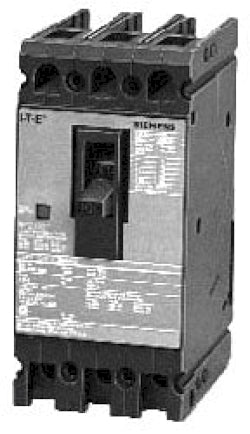

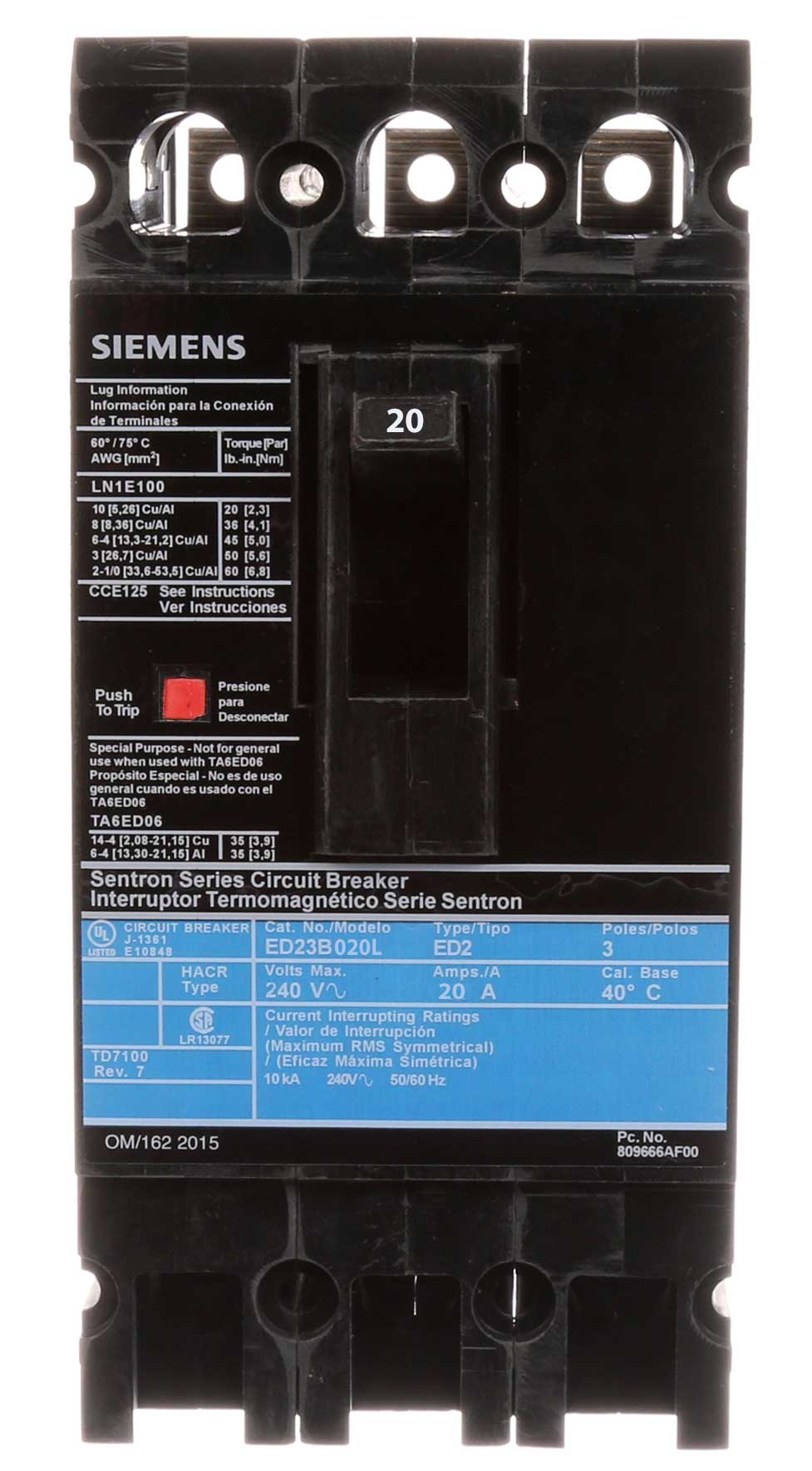

ED23B020L is a Siemens Sentron Series Type ED2 molded case circuit breaker rated for 20 amps and 240 volts with 3 poles and a 10kA interrupt rating.ED23B020L features thermal/magnetic trip units and is designed for low voltage applications with feed-thru mounting. It supports 125/250 VDC and 50/60 Hz operation, suitable for industrial and commercial electrical protection.
- Amperage: 20 A
- Voltage: 240 VAC, 125/250 VDC
- Poles: 3
- Interrupt Rating: 10 kA at 240 V
- Series/Frame: Sentron Type ED2
- Trip Unit: Thermal/Magnetic
- Mounting Type: Feed-Thru
- Frequency: 50/60 Hz
- Operating Temperature: 40°C
- Certifications: HACR Standard Compliant
Specifications
- Part Number: ED23B020L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643003071
- GTIN : 00783643003071
- Country of Origin : Mexico
- Weight : 3.748
