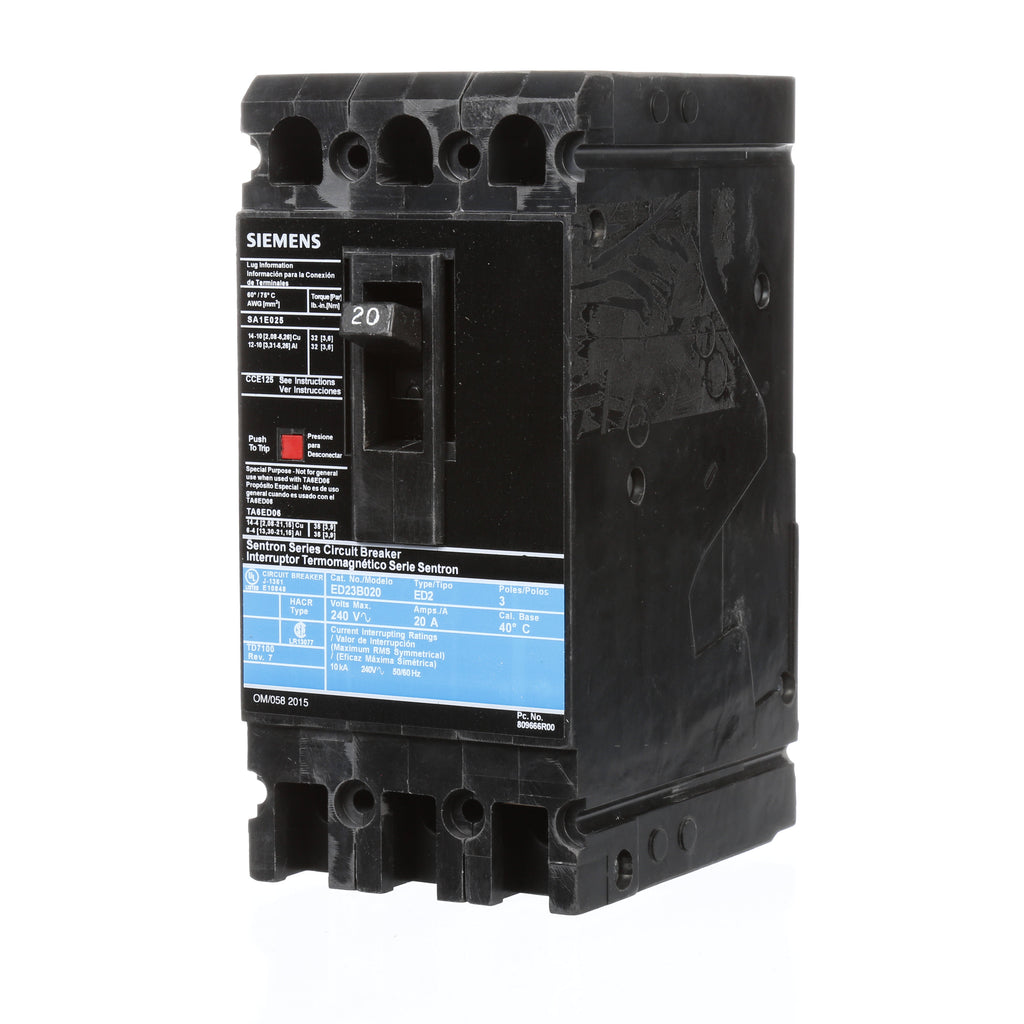

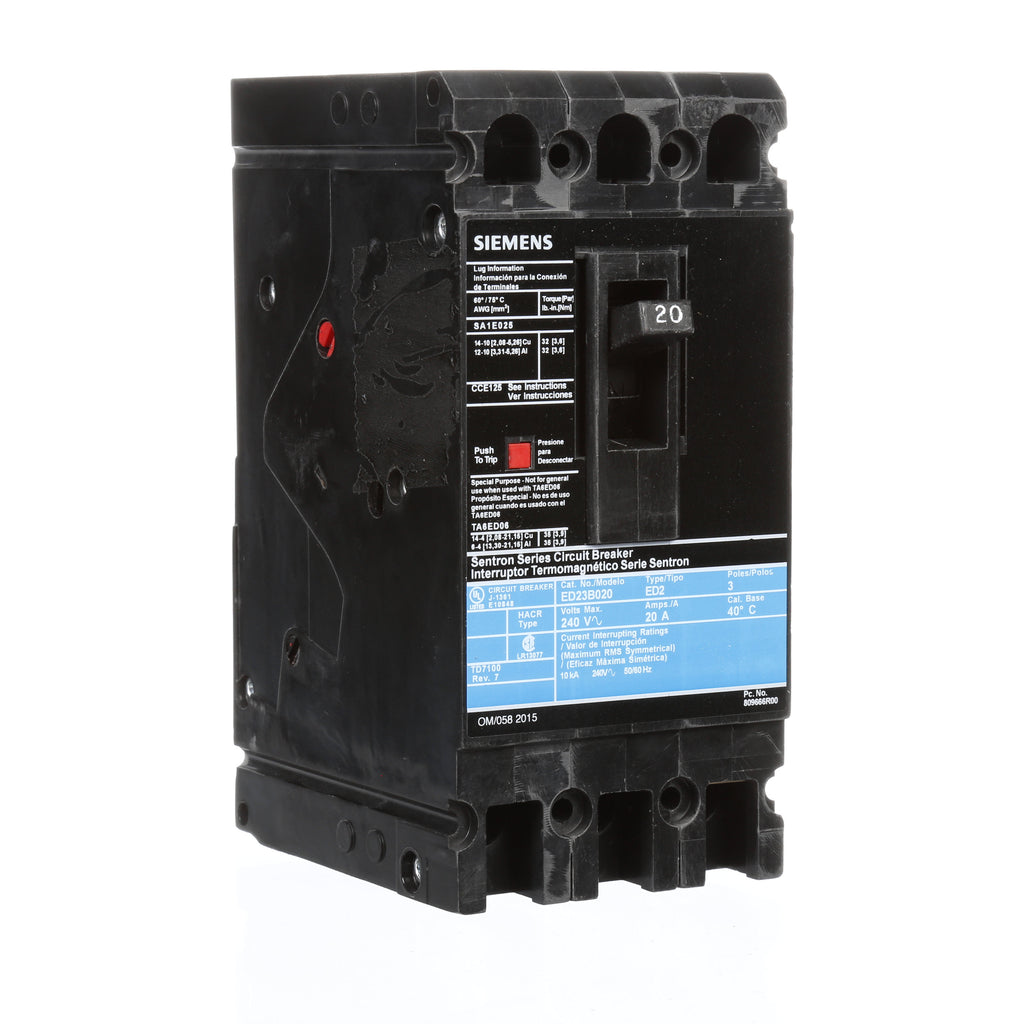

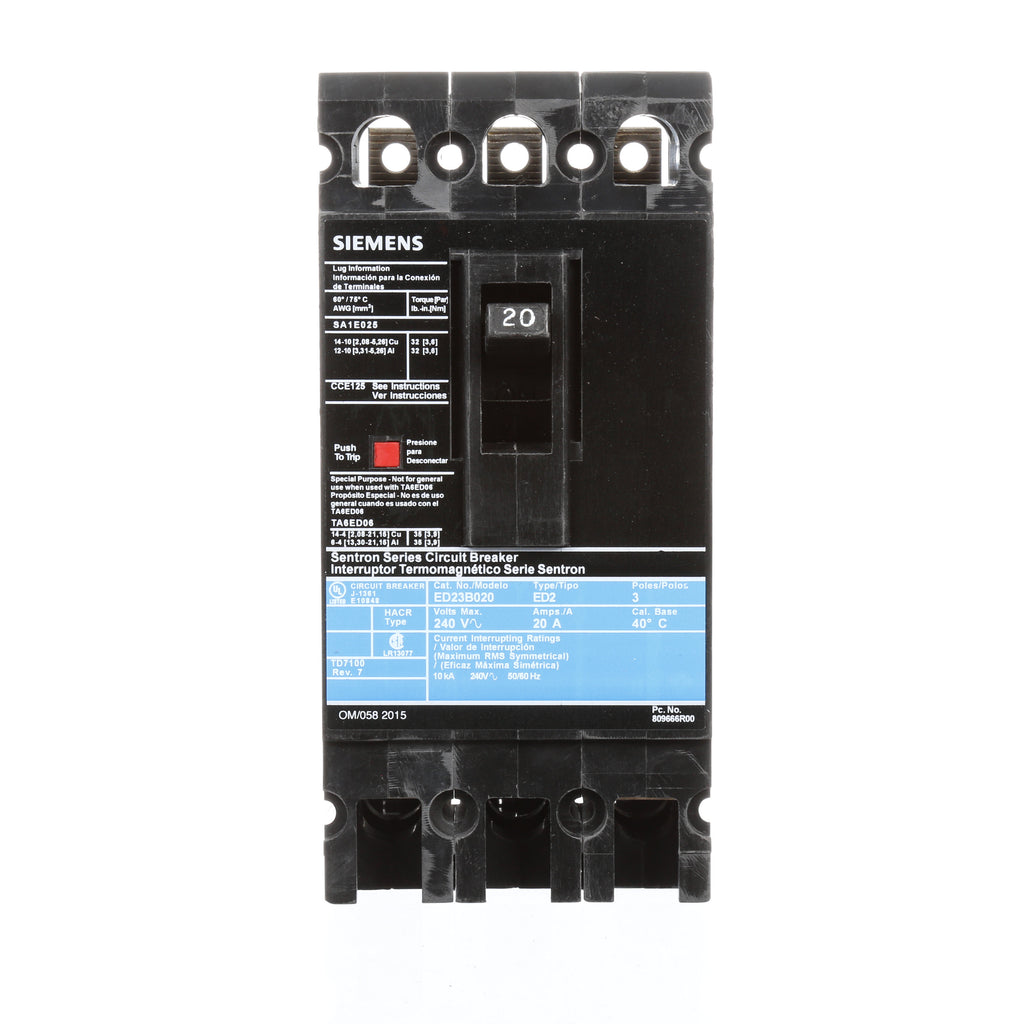

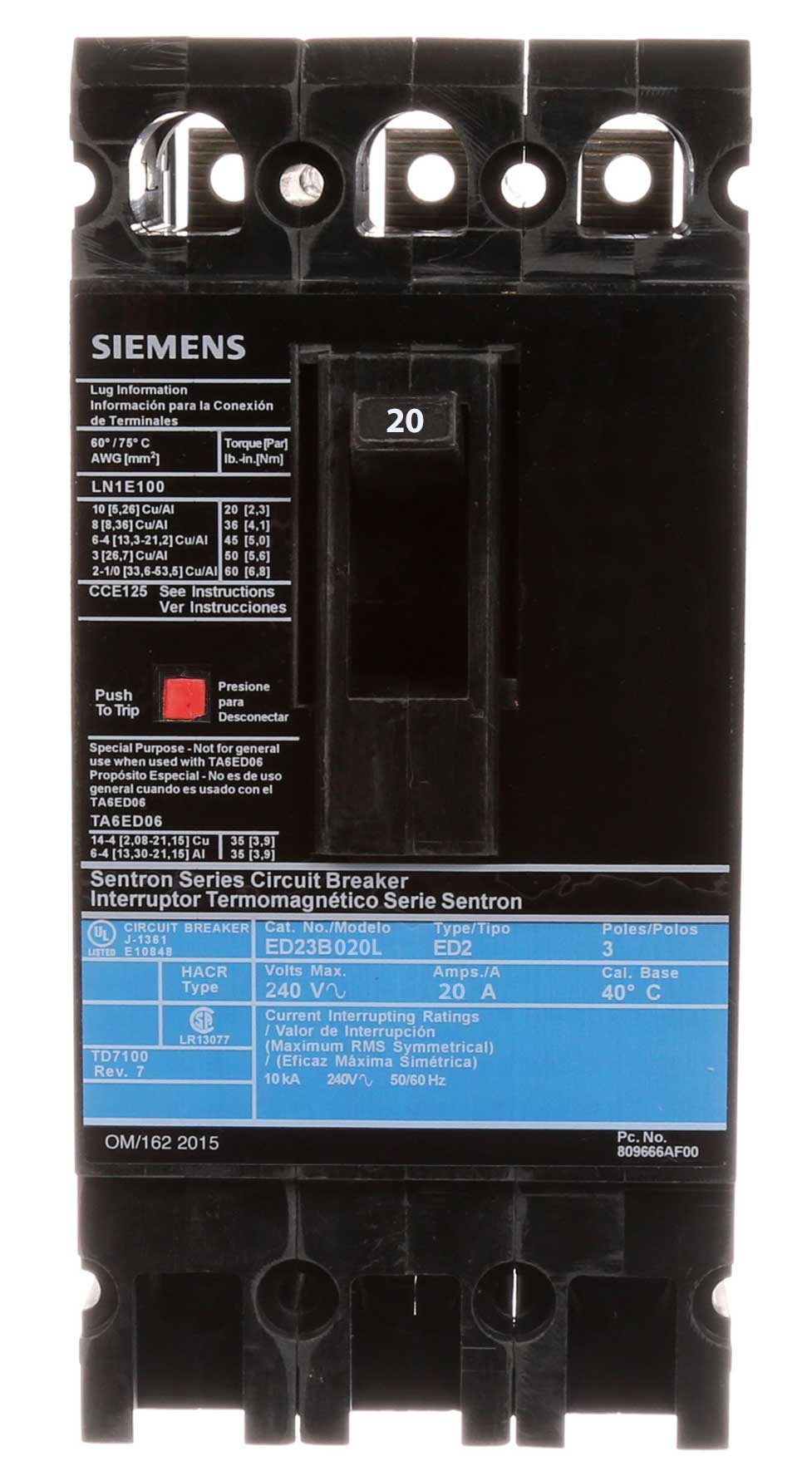

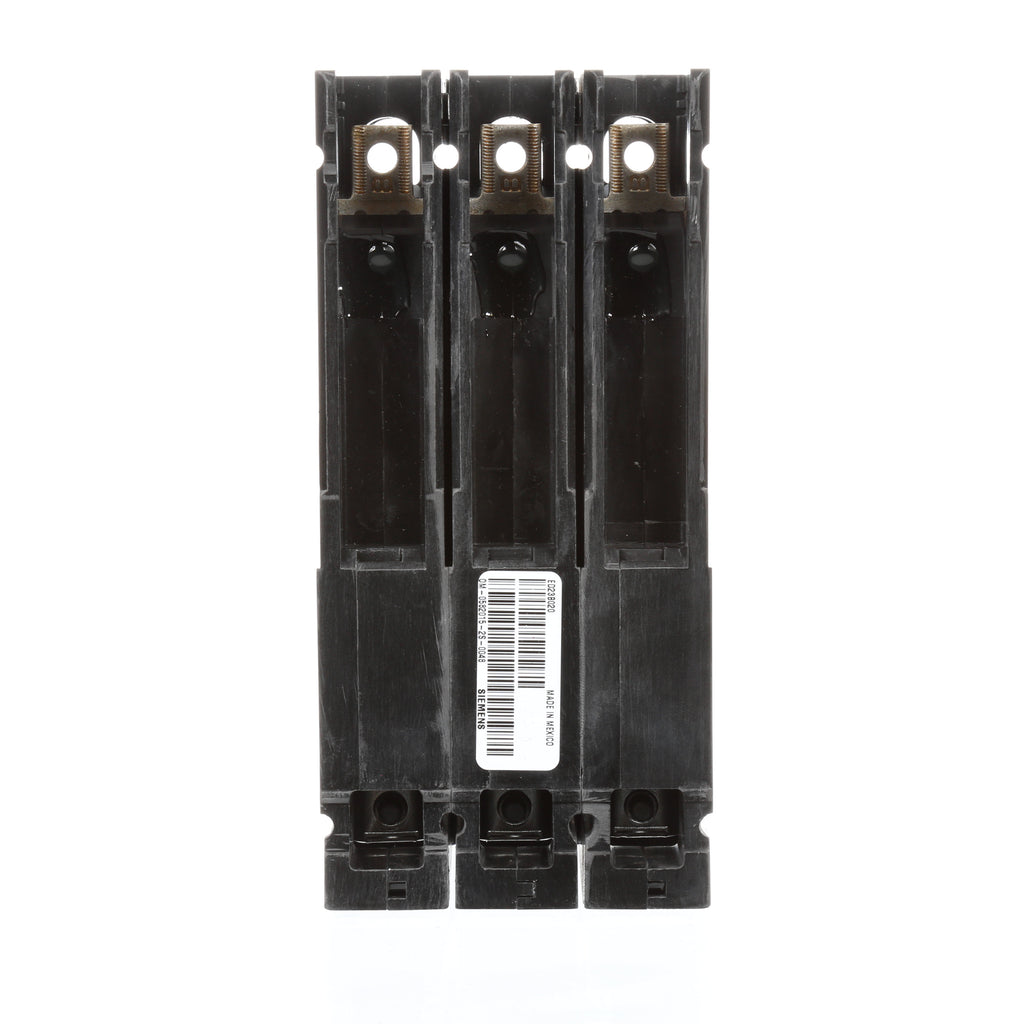

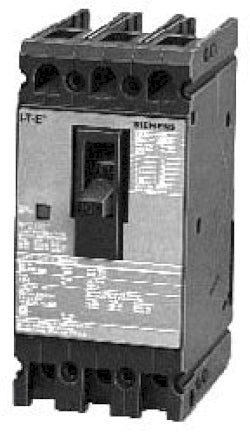

ED23B020 - Siemens 20 Amp 240 Volt 3 Pole Molded Case Circuit Breaker ED Frame

ED23B020

ED23B020 is a Siemens 20 Amp, 240 Volt, 3 Pole molded case circuit breaker designed for reliable low voltage power distribution protection.This Siemens ED Frame breaker features a 10kA interrupt rating at 240VAC, thermal magnetic trip unit, and load lug load side terminations. It is a standard 40°C breaker with a non-interchangeable trip unit, suitable for three-phase applications requiring robust circuit protection.

Key Specifications
• Amperage: 20 Amps
• Voltage: 240 Volts
• Poles: 3
• Interrupt Rating: 10kA at 240VAC
• Frame: ED Frame
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Mounting Type: Molded Case
• Connection: Load Lugs Included, Line Lugs Not Included
• Phase: 3-Phase
• Operating Temperature: 40°C Standard
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ED23B020
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 783643208971
• GTIN : 00783643208971
• Country of Origin : Mexico
• Dimensions : 3 in x 6.34 in
• Weight : 3.62
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
