ED23B025 - Siemens 25A 240V 3 Pole Molded Case Circuit Breaker

ED23B025

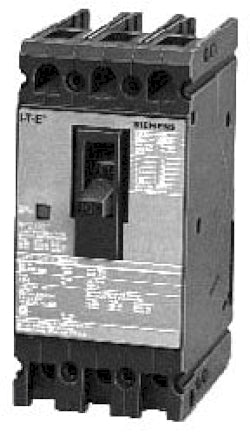

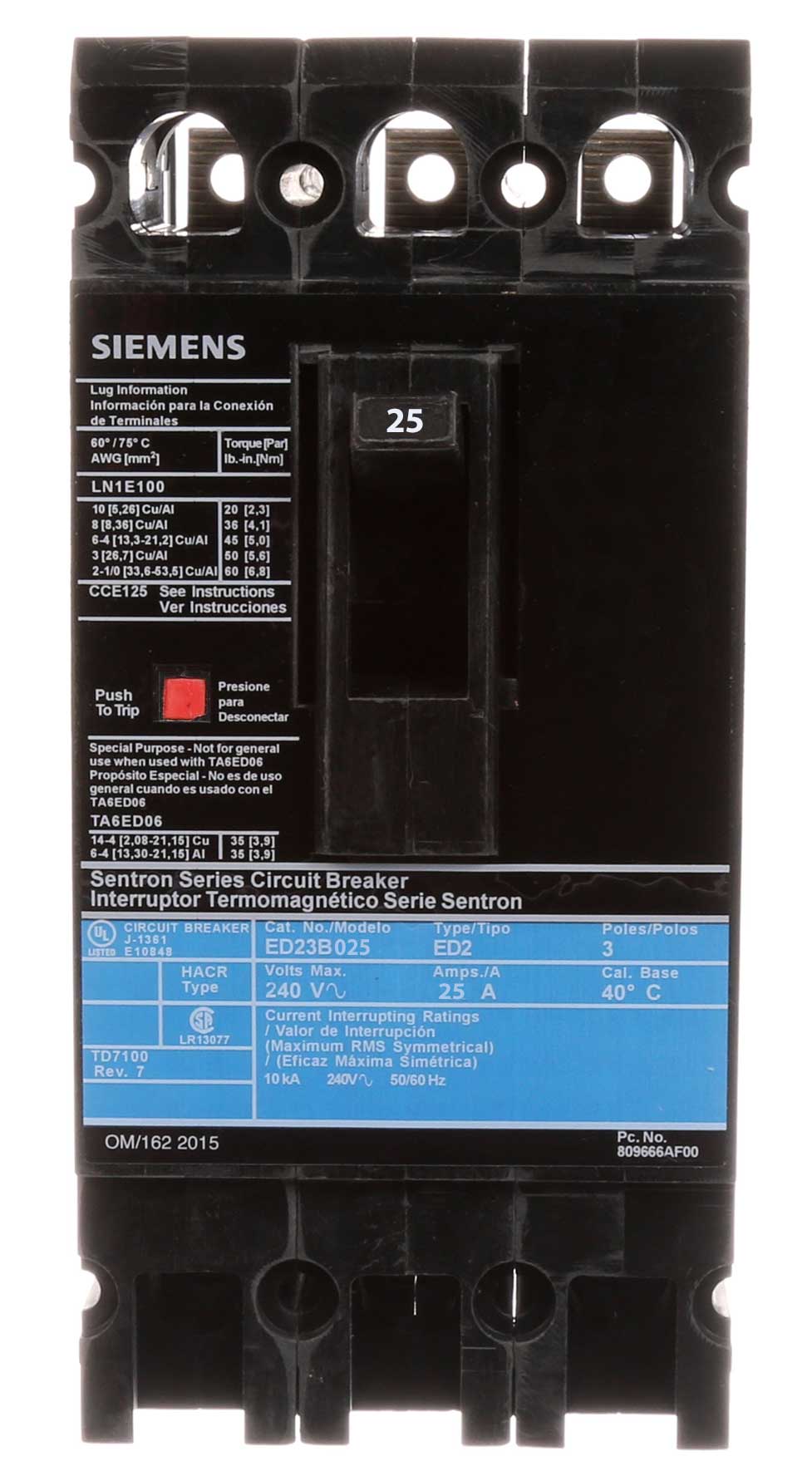

ED23B025 is a Siemens 3 pole molded case circuit breaker designed for reliable protection in commercial and industrial applications. This breaker features a 25A current rating and a 240VAC voltage rating, making it suitable for a wide range of electrical systems. The ED23B025 is part of the Siemens Sentron Series and utilizes the ED frame. It is a thermal magnetic breaker with a standard interrupting capacity of 10kA at 240V. The breaker is bolt-on type, ensuring secure mounting and easy installation. It is designed for 40°C ambient temperature and includes load lugs for straightforward wiring.

• Part Number: ED23B025
• Manufacturer: Siemens
• Series: Sentron
• Frame: ED
• Amperage: 25A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 240V
• Trip Unit: Thermal Magnetic
• Ambient Temperature: 40°C
• Special Features: Load Lugs Only

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED23B025
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643208988
• GTIN : 00783643208988
• Country of Origin : Mexico
• Weight : 3.62
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
