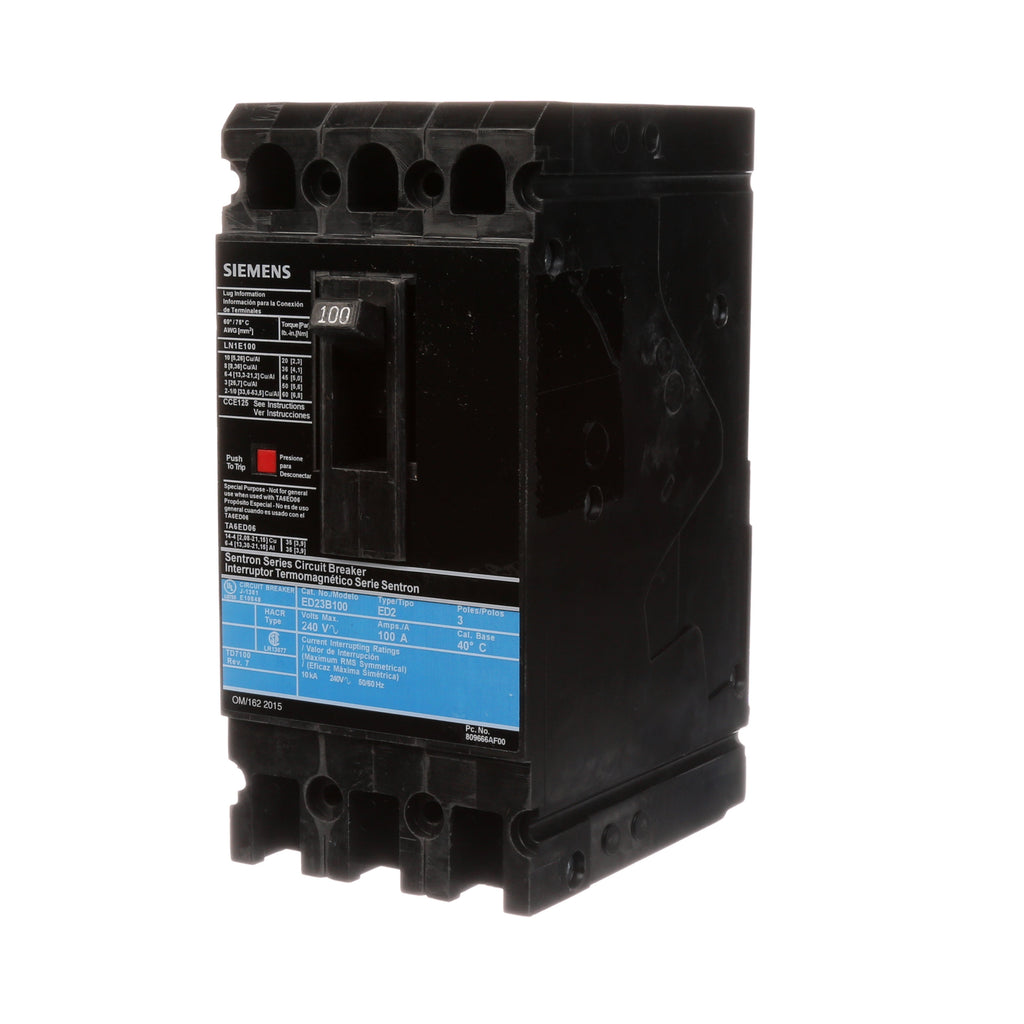

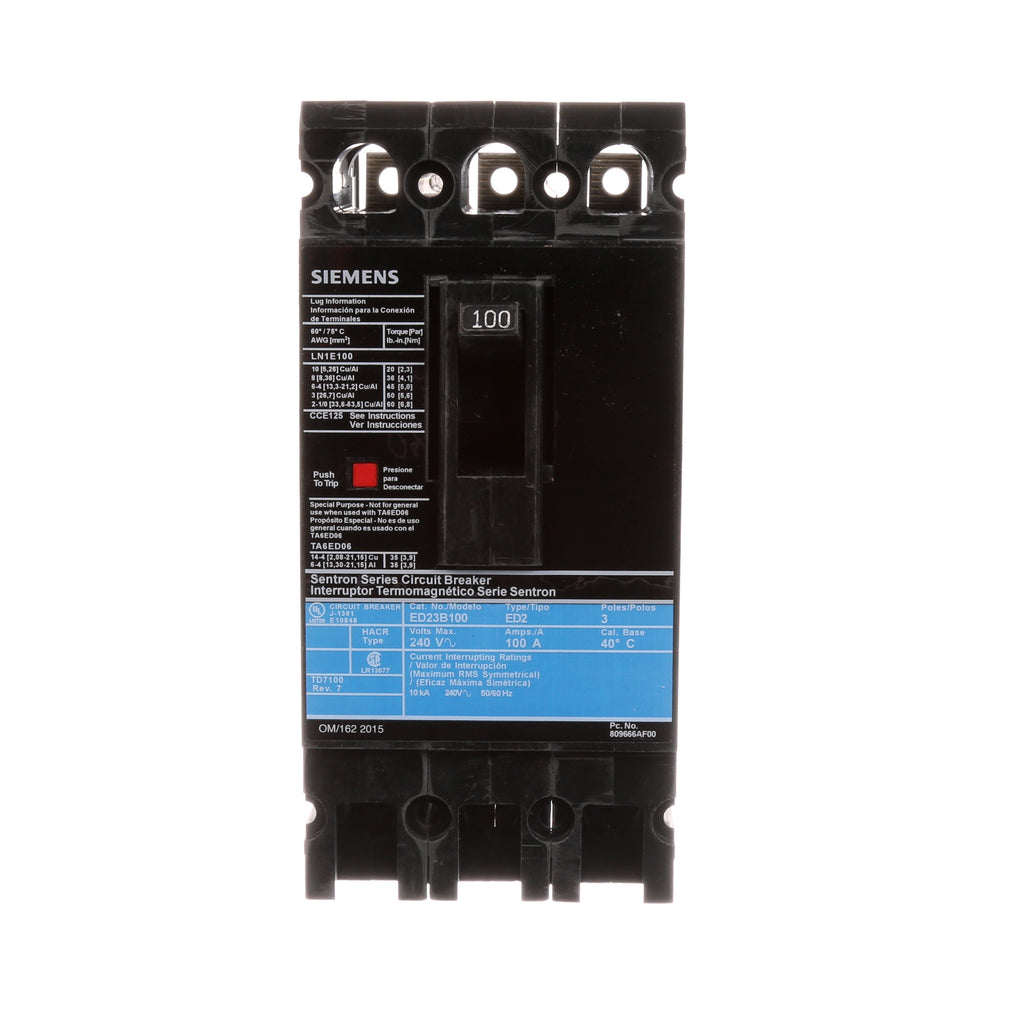

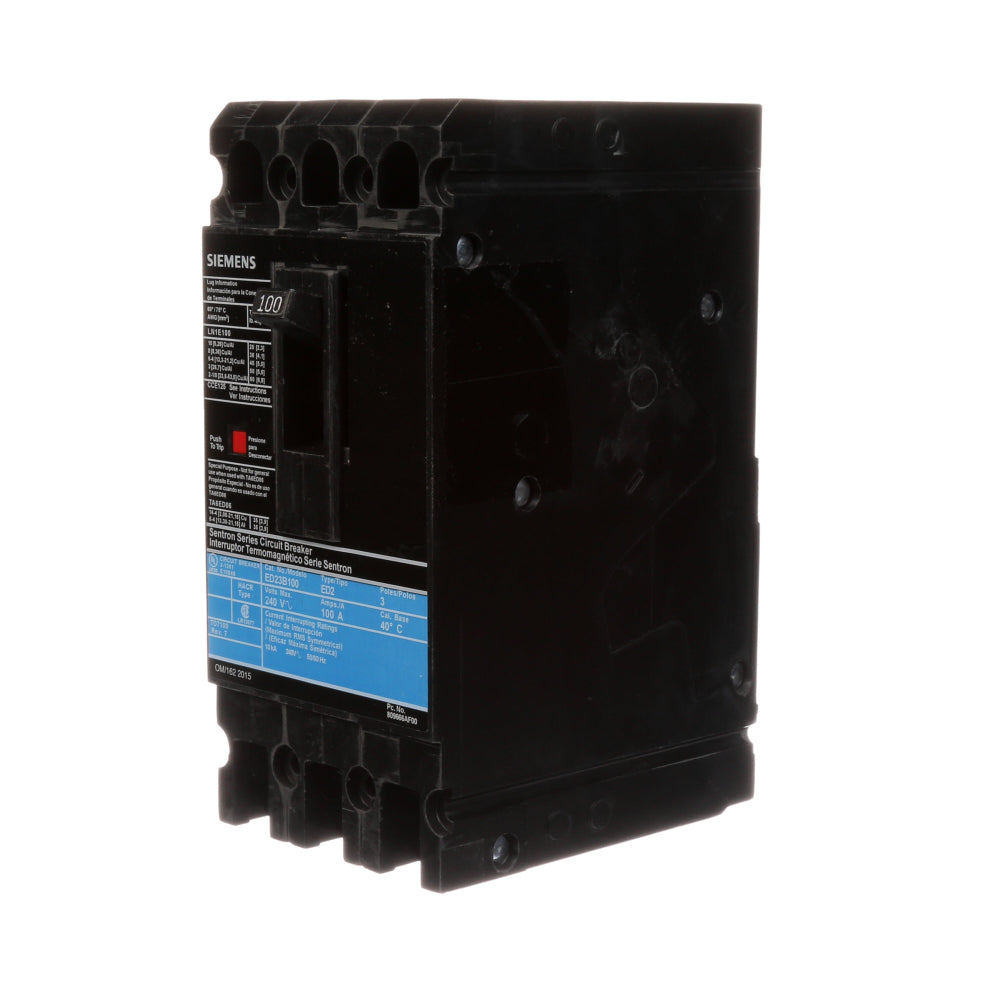

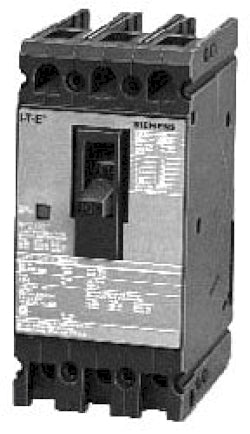

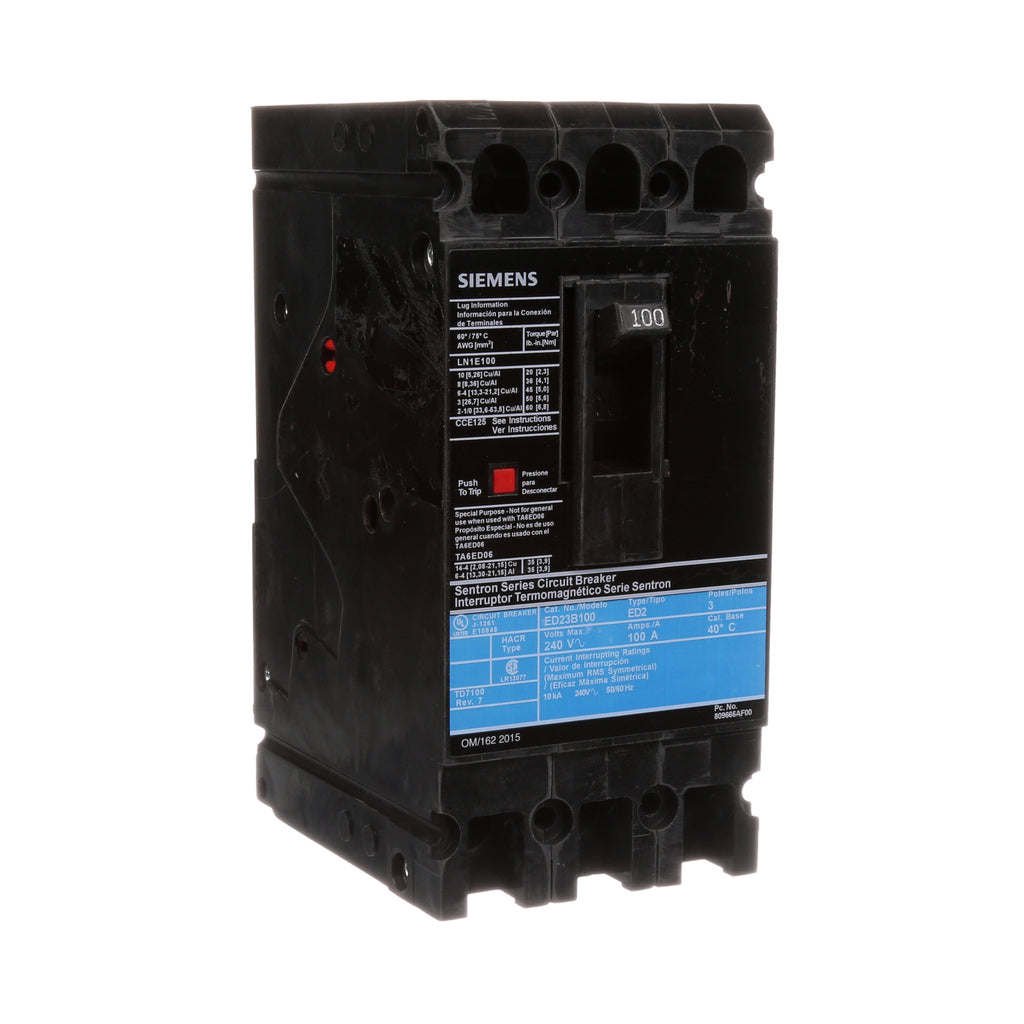

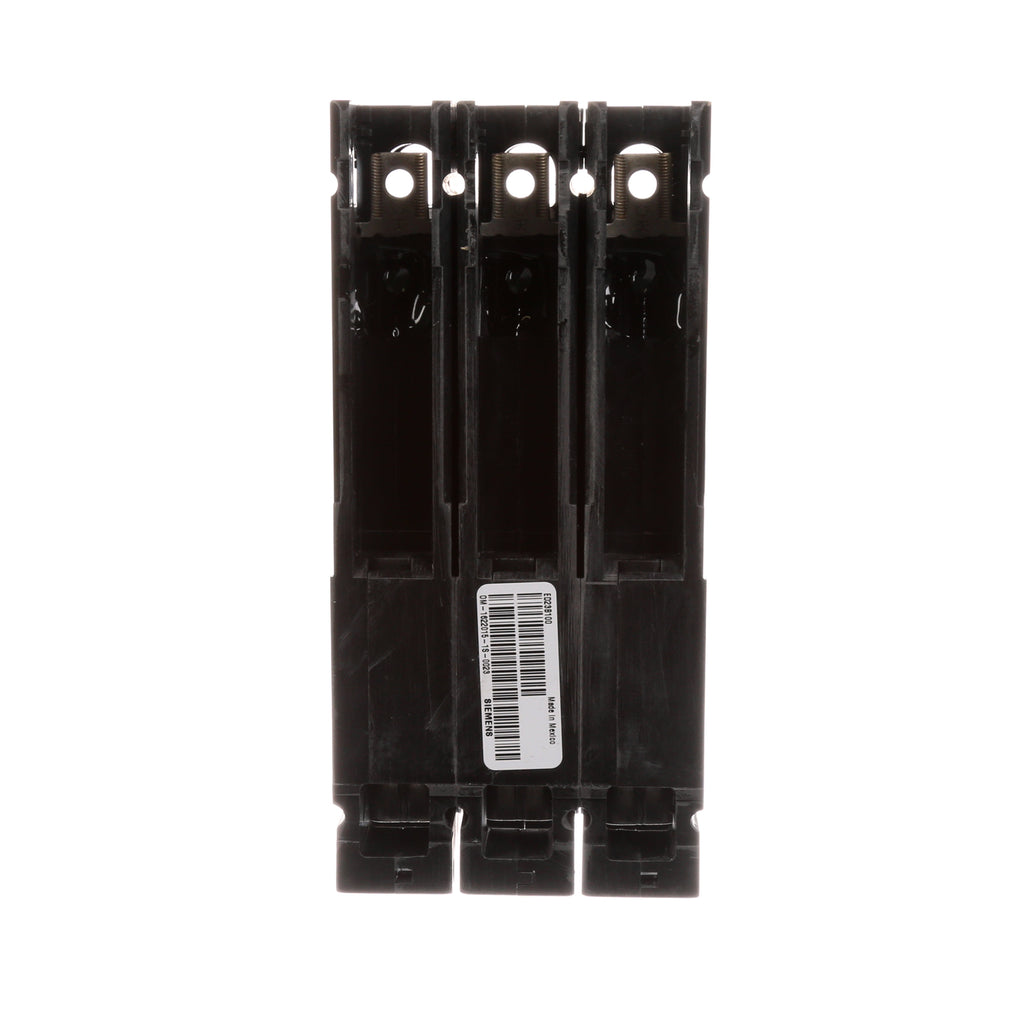

ED23B100 - Siemens 100A 240V 3-Pole ED Frame Thermal Magnetic Circuit Breaker

ED23B100

ED23B100 is a Siemens Sentron ED series low voltage molded case circuit breaker designed for reliable protection in electrical systems.This 3-pole circuit breaker features a 100 ampere rating, 240 volts AC voltage rating, and a 10 kA interrupting capacity at 240V. It uses a thermal magnetic trip unit and is built on the ED frame with a standard 40 degree Celsius temperature rating. The breaker is bolt-on mounted and meets UL 489 and IEC 60947-2 standards for safety and performance.

Key Specifications
• Manufacturer: Siemens
• Part Number: ED23B100
• Amperage: 100A
• Voltage Rating: 240 VAC
• Poles: 3
• Interrupt Rating: 10 kA at 240V
• Frame/Series: ED
• Trip Unit Type: Thermal Magnetic
• Mounting Type: Bolt-on
• Temperature Rating: 40°C
• Certifications: UL 489, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED23B100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209084
• GTIN : 00783643209084
• Country of Origin : Mexico
• Dimensions : 3 in x 6.34 in
• Weight : 3.699
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
