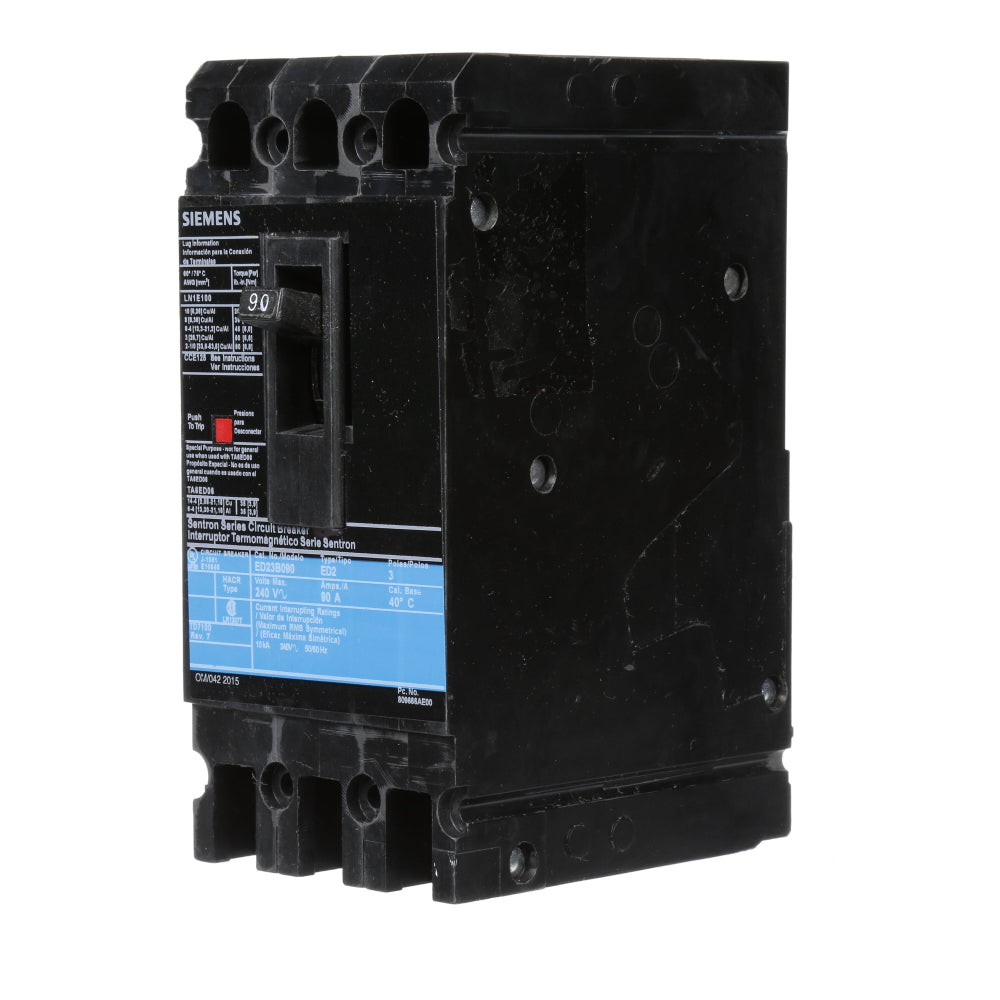

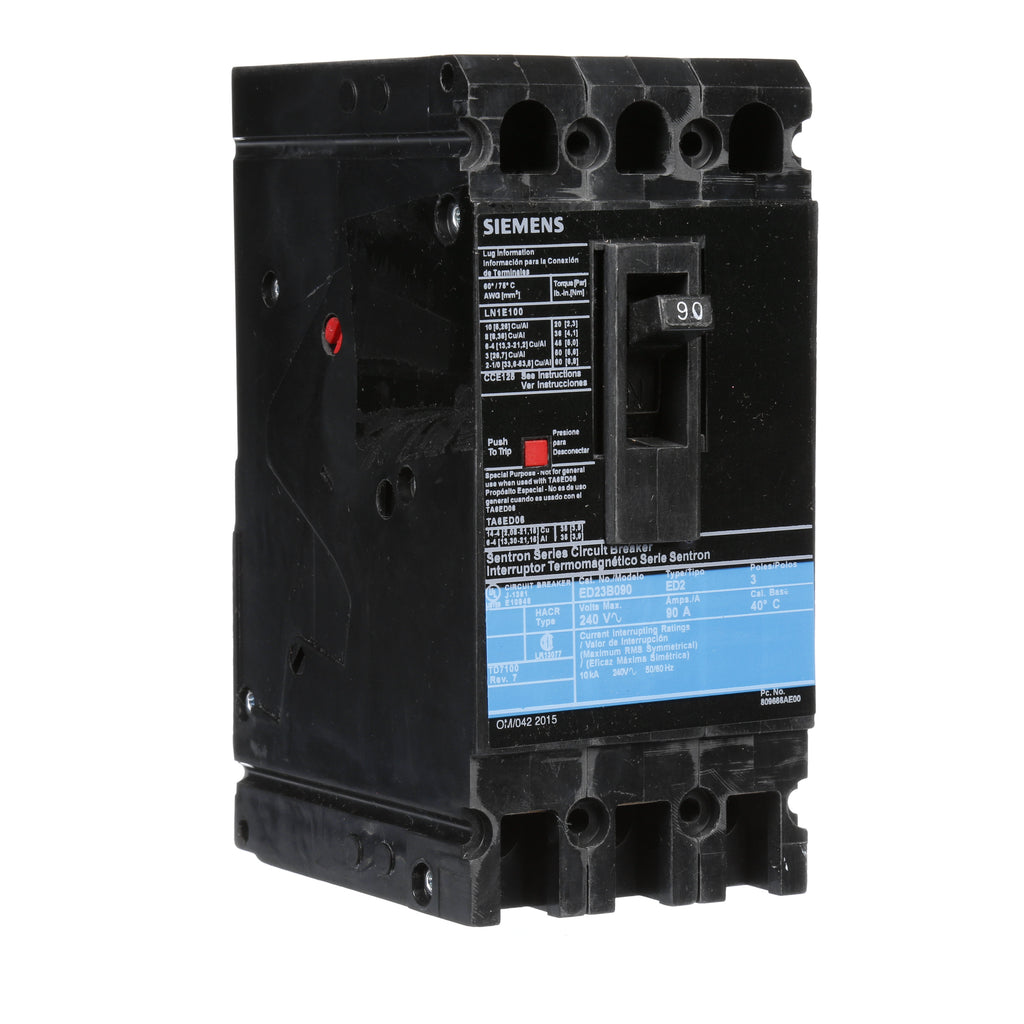

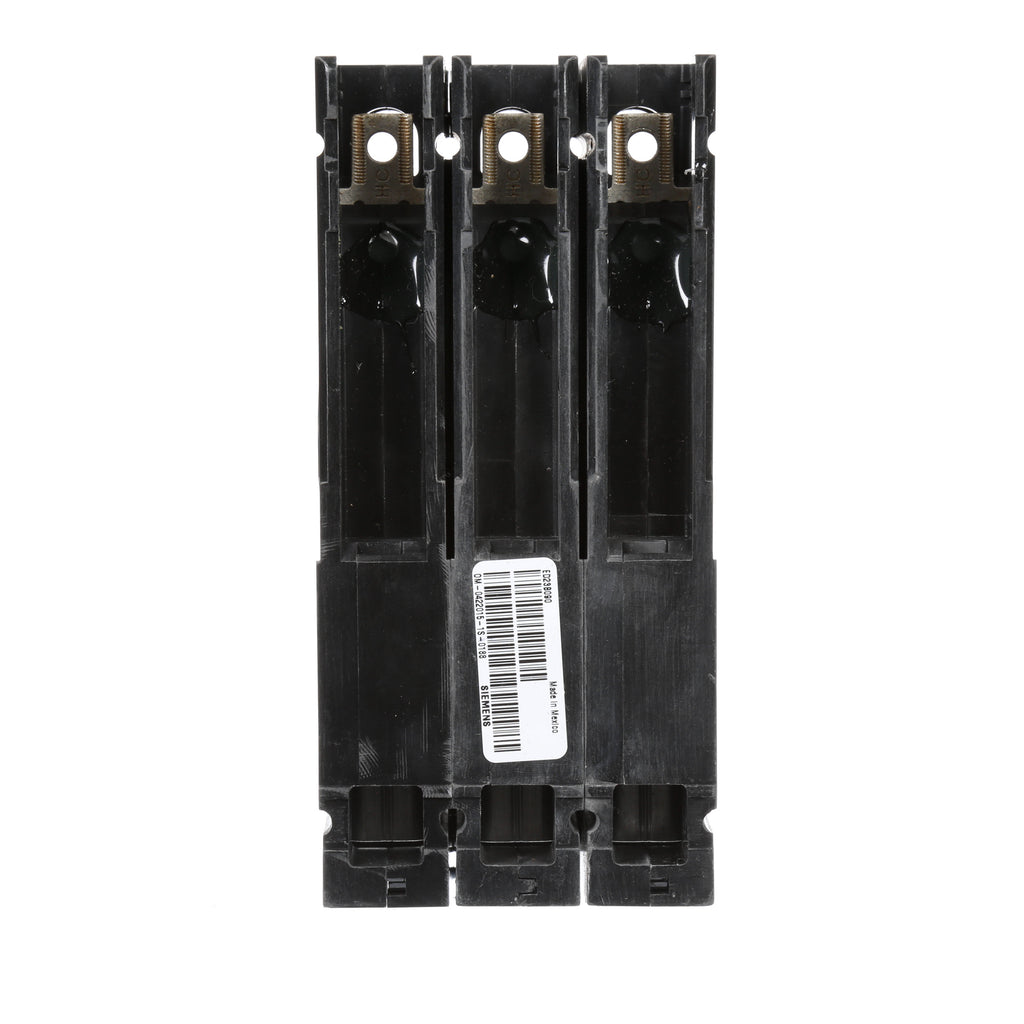

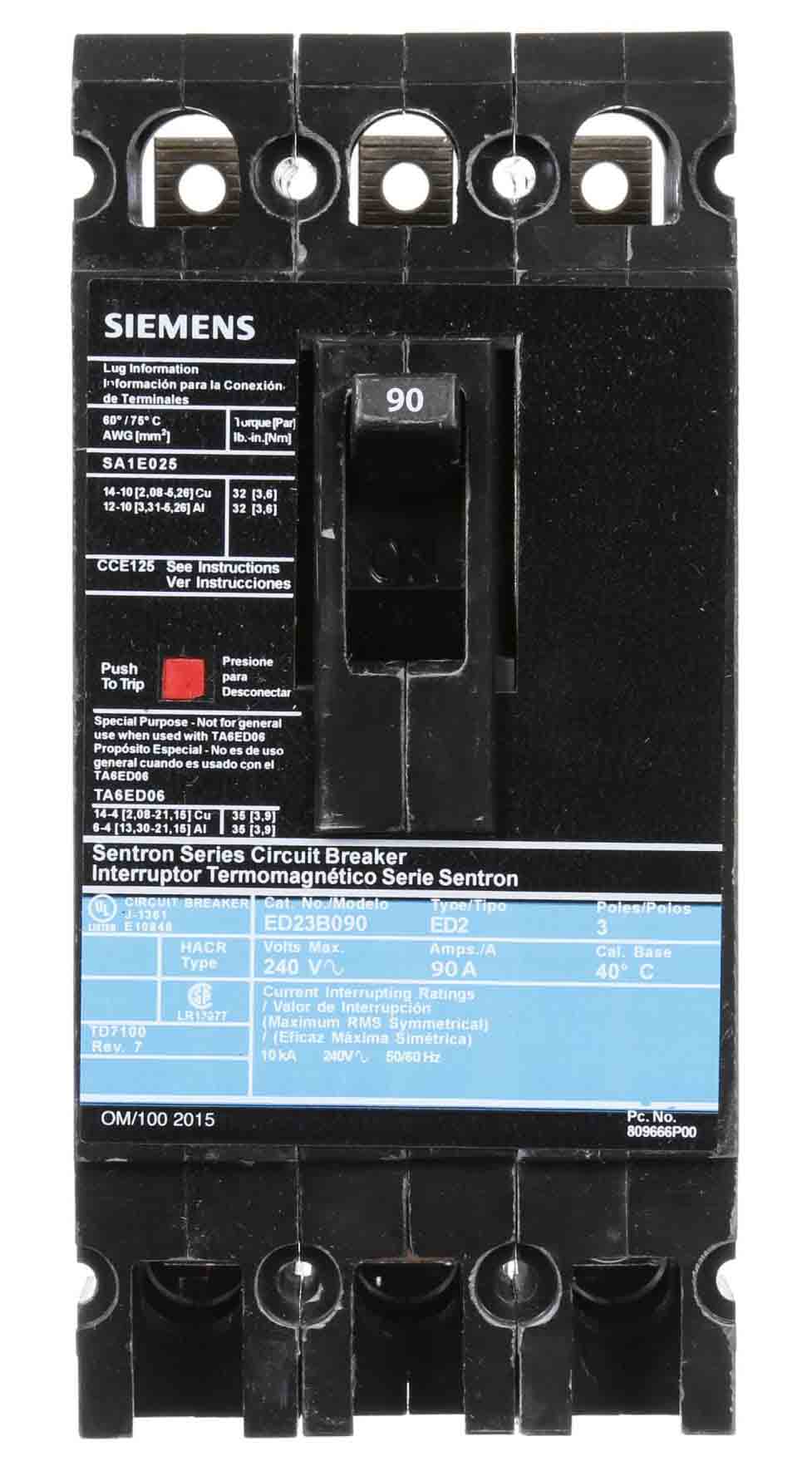

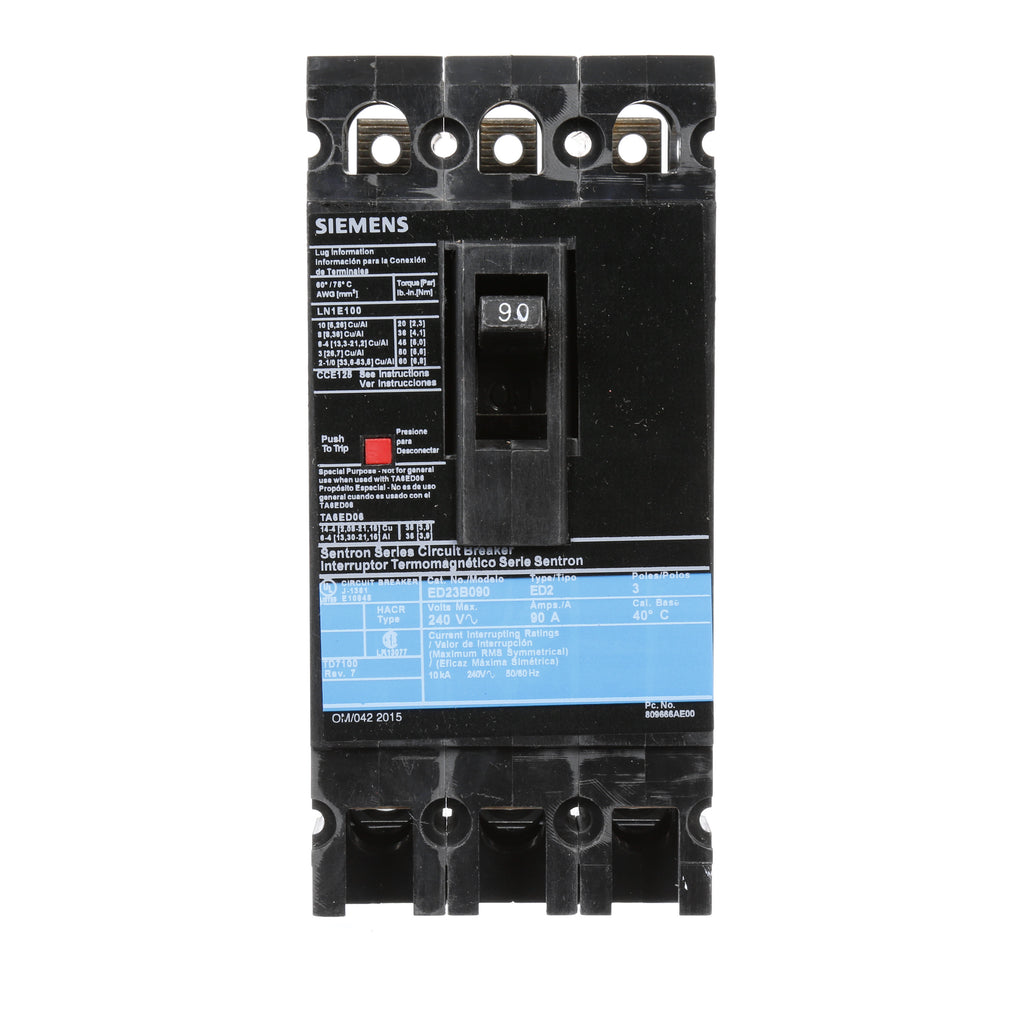

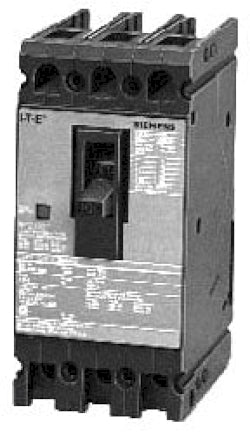

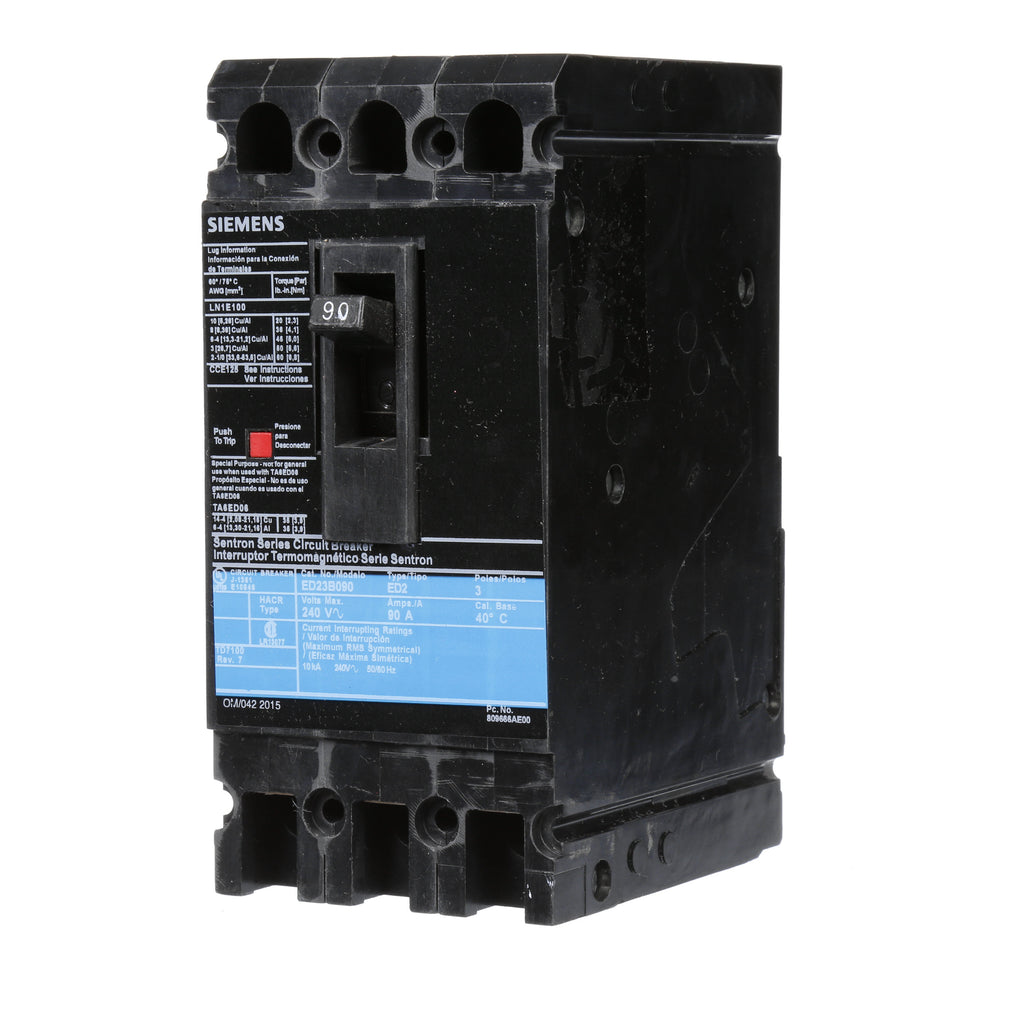

ED23B090 - Siemens 90A 240V 3-Pole Thermal Magnetic Circuit Breaker ED Frame Bolt-On Mount

ED23B090

ED23B090 is a Siemens 90 Amp, 240 Volt, 3-Pole thermal magnetic circuit breaker with bolt-on mounting and ED frame type.ED23B090 features a 10,000 amp interrupting rating at 240 VAC, suitable for low voltage power distribution applications. It has a compact design with dimensions of 6.35 inches high, 3 inches wide, and 3.92 inches deep, weighing 3.8 lbs. The breaker supports wire sizes from #10 AWG to 1/0 AWG with a lug kit and is HACR rated for standard 40°C operation.

Key Specifications
• Amperage: 90 A
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 240 VAC
• Frame Type: ED
• Trip Unit: Thermal Magnetic
• Dimensions: 6.35" H x 3" W x 3.92" D
• Weight: 3.8 lbs
• Wire Size Range: #10 AWG to 1/0 AWG (with lug kit)
• Certifications: HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED23B090
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209077
• GTIN : 00783643209077
• Country of Origin : Mexico
• Dimensions : 3 in x 6.34 in
• Weight : 3.801
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : 10 to 1/0 AWG Aluminum/Copper
