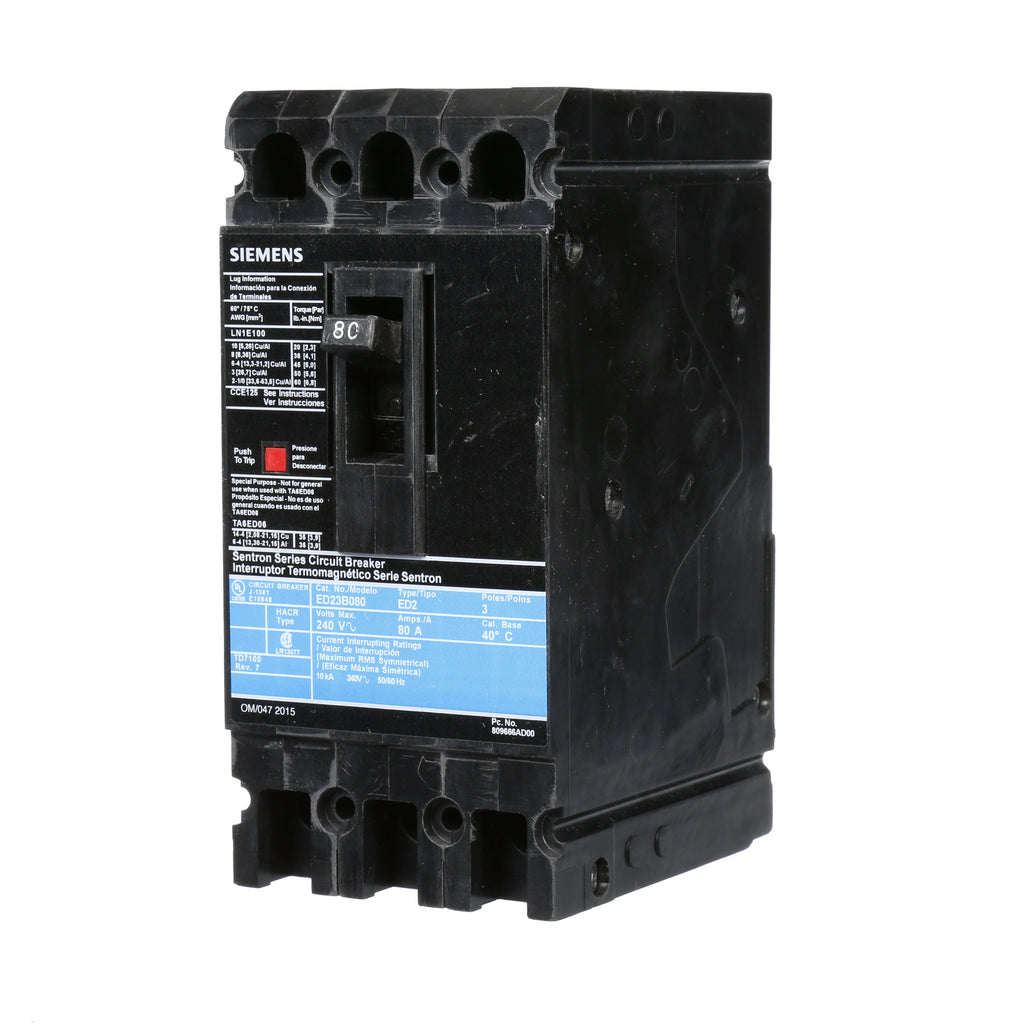

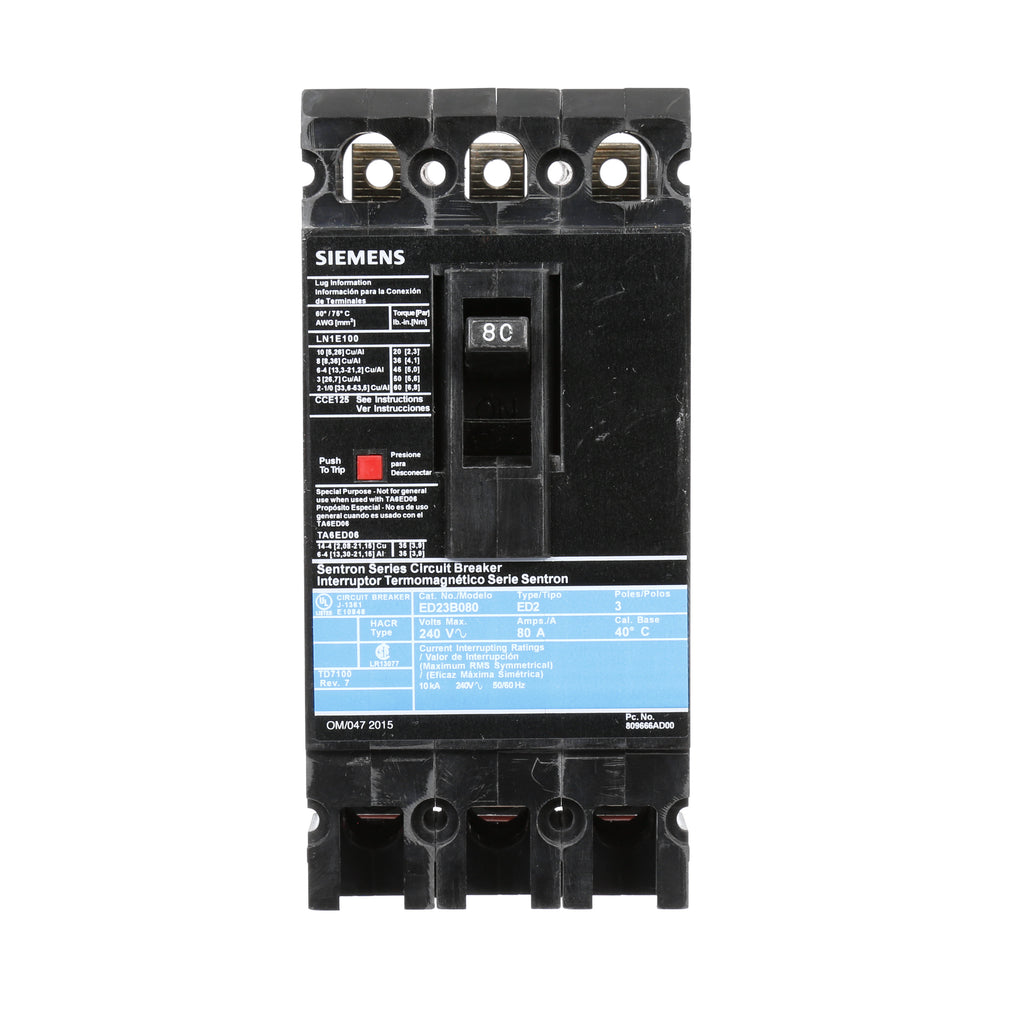

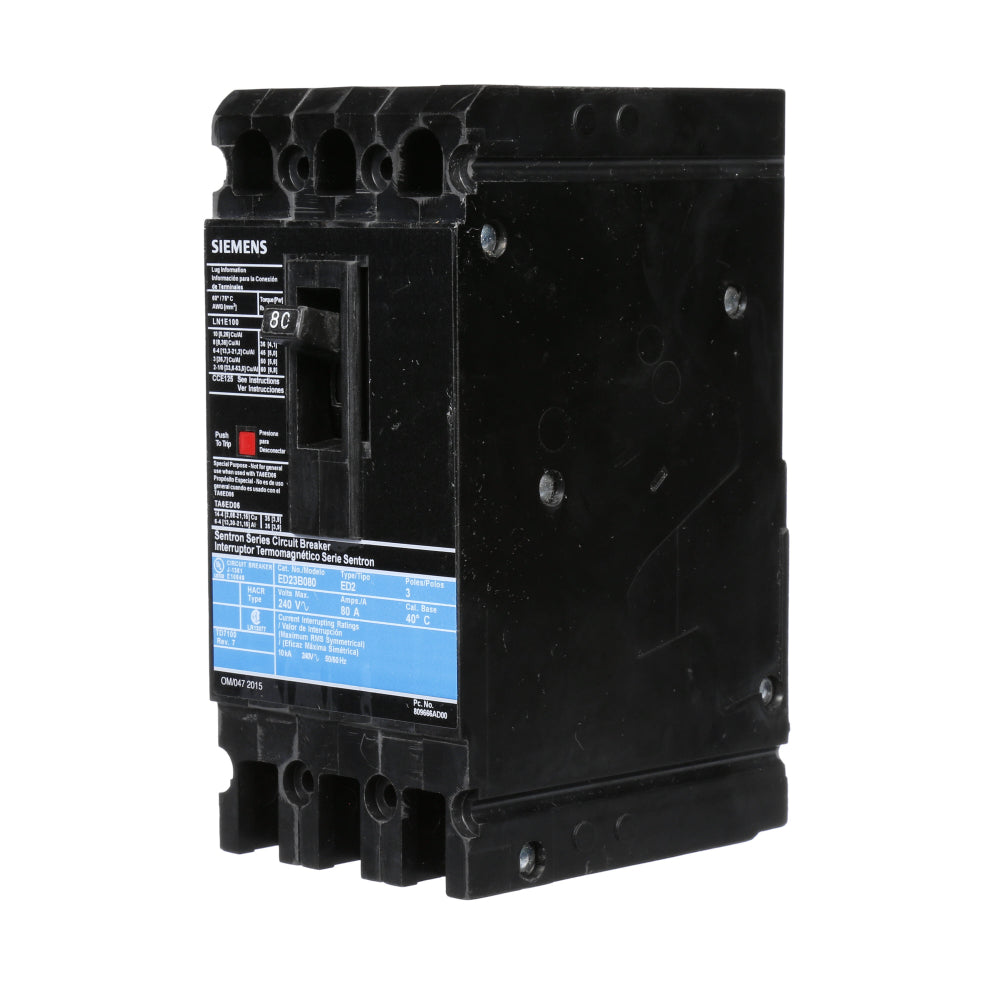

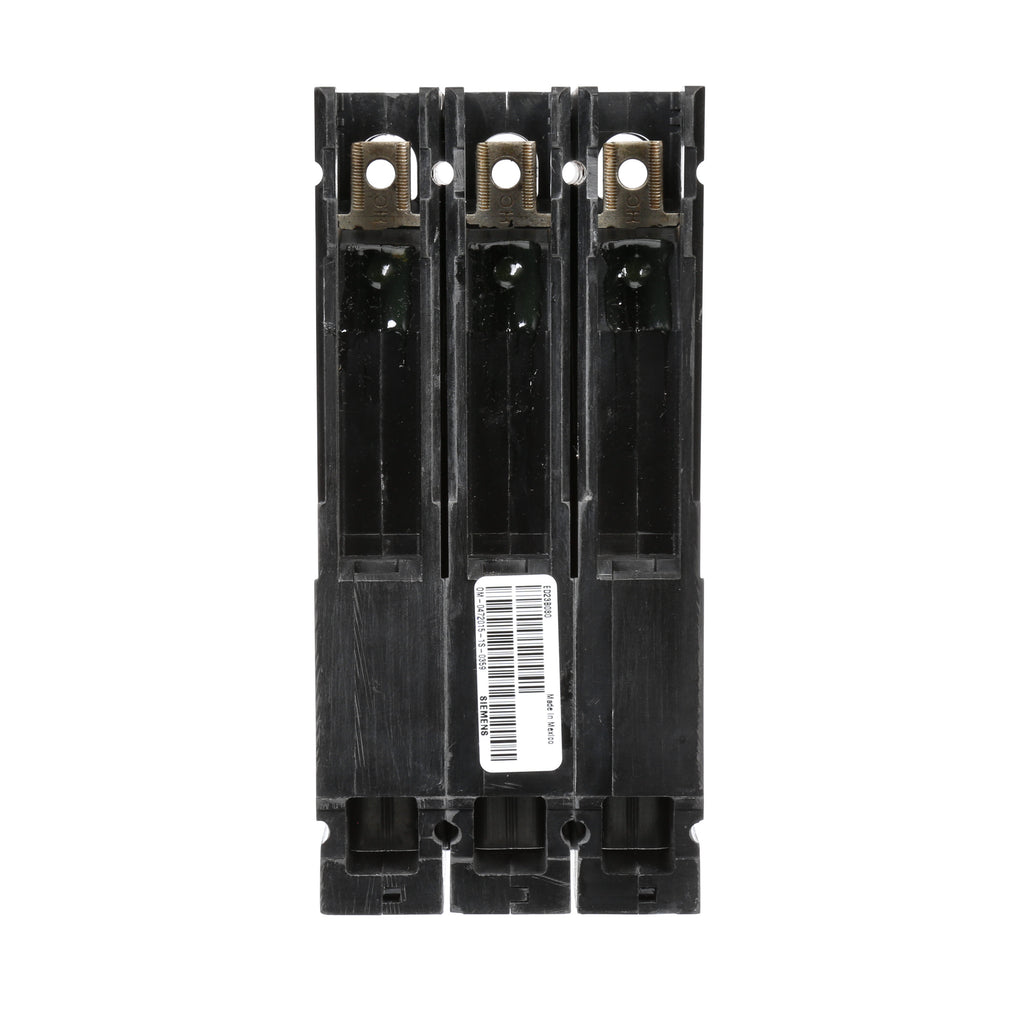

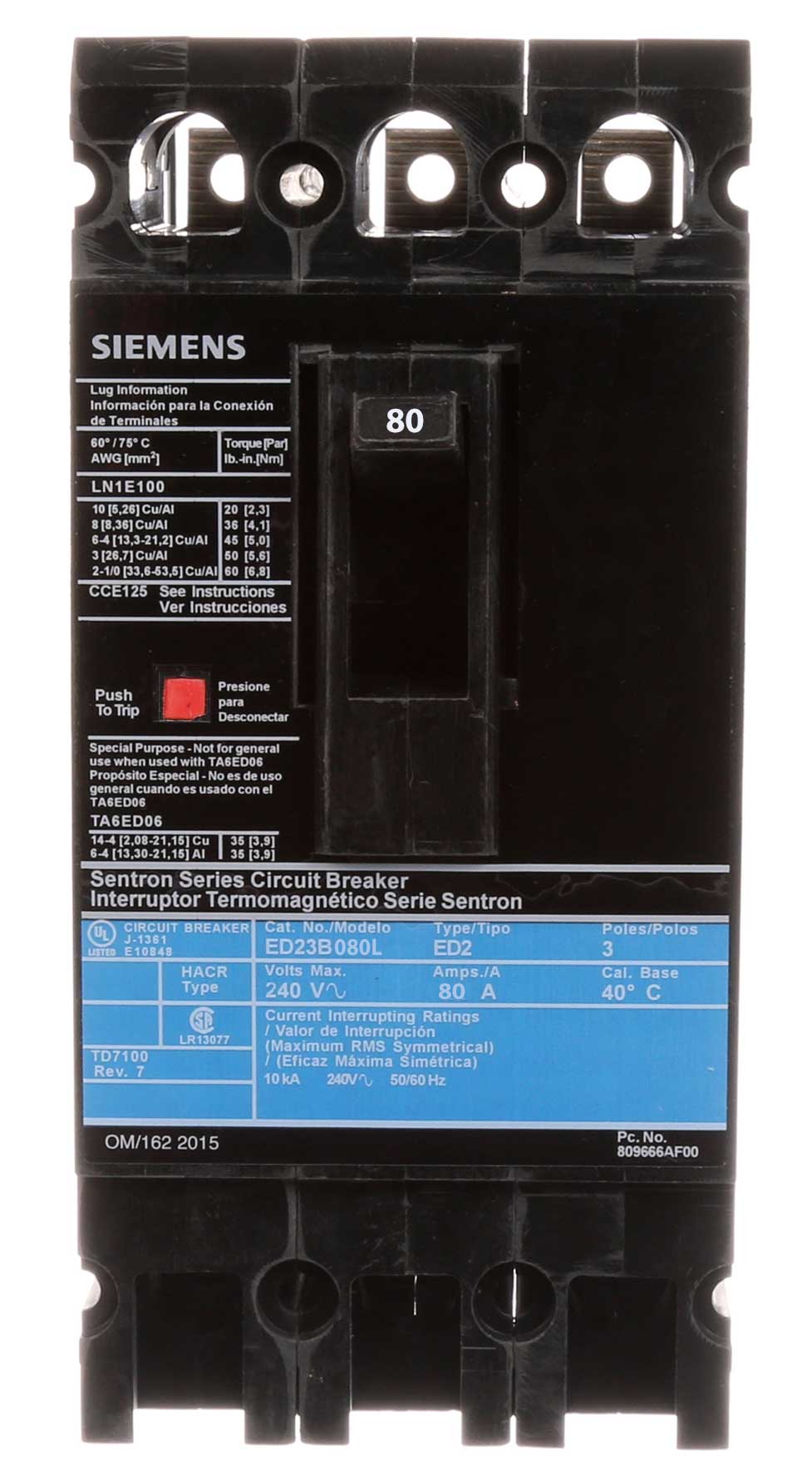

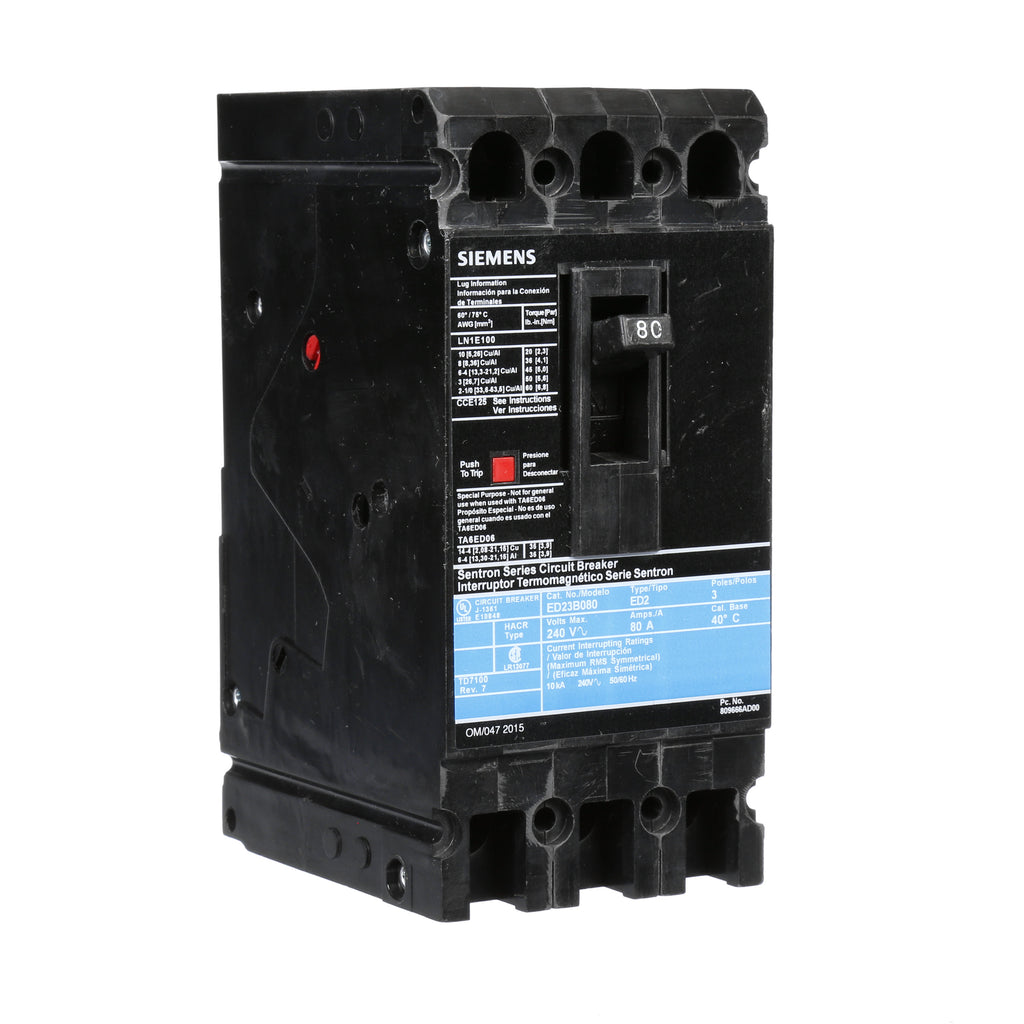

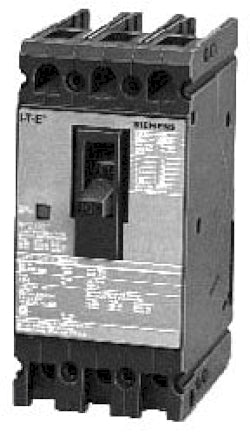

ED23B080 - Siemens 80A 240V 3 Pole Molded Case Circuit Breaker Bolt-On ED Series

ED23B080

ED23B080 is a Siemens 3 pole, 80 amp, 240 volt molded case circuit breaker from the ED series with bolt-on mounting.This thermal magnetic circuit breaker features a standard interrupt rating of 10kA at 240V AC, long-time and instantaneous trip functions, and load side lug terminals. It is designed for use in three-phase electrical systems and provides reliable protection with a compact 6.35" x 3" x 3.92" form factor.

• Manufacturer: Siemens
• Series: ED
• Amperage: 80A
• Voltage Rating: 240V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 240V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Connection: Load side lug terminals
• Phase: 3
• Dimensions: 6.35" x 3" x 3.92"
• Weight: 3.7 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED23B080
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209060
• GTIN : 00783643209060
• Country of Origin : Mexico
• Dimensions : 3 in x 6.34 in
• Weight : 3.739
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
