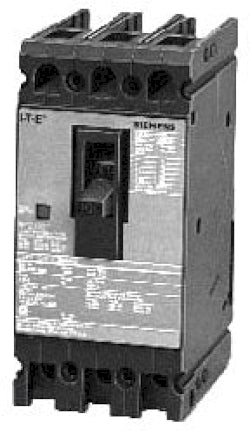

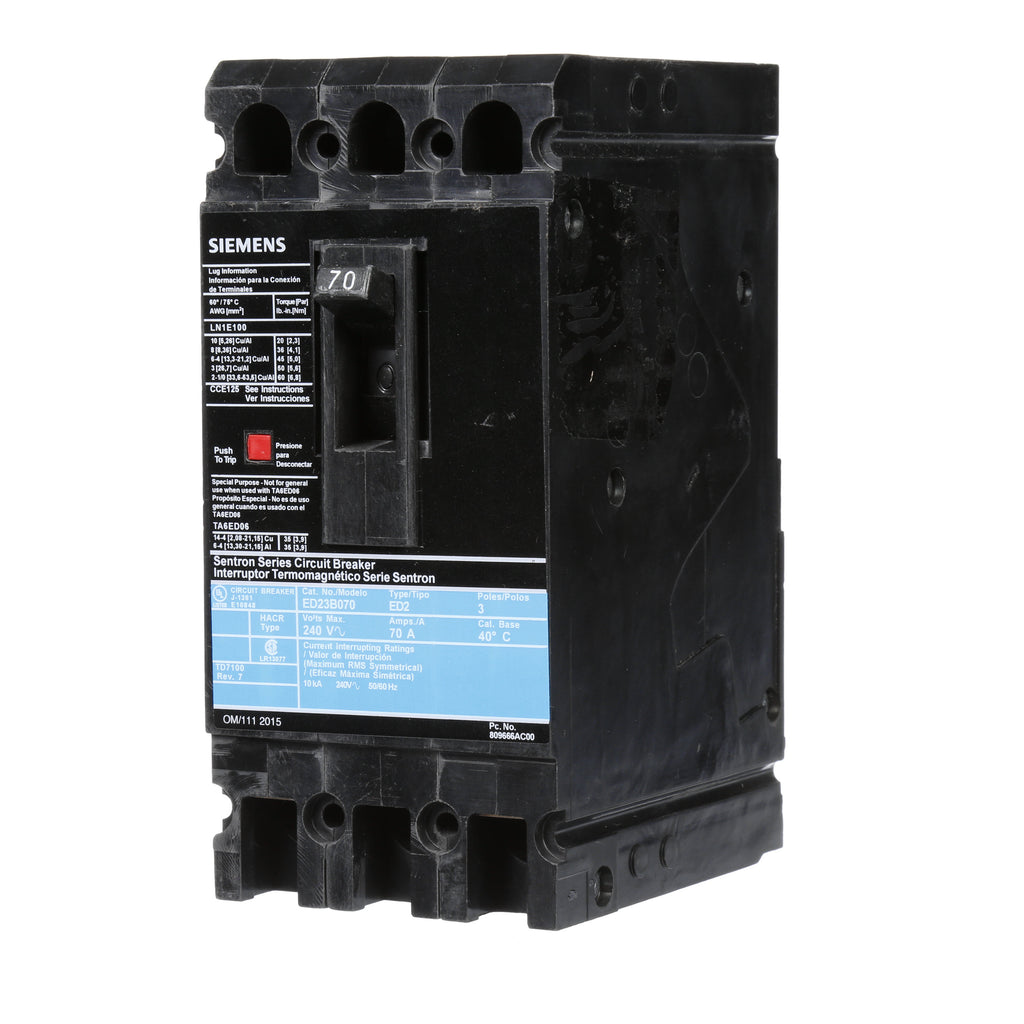

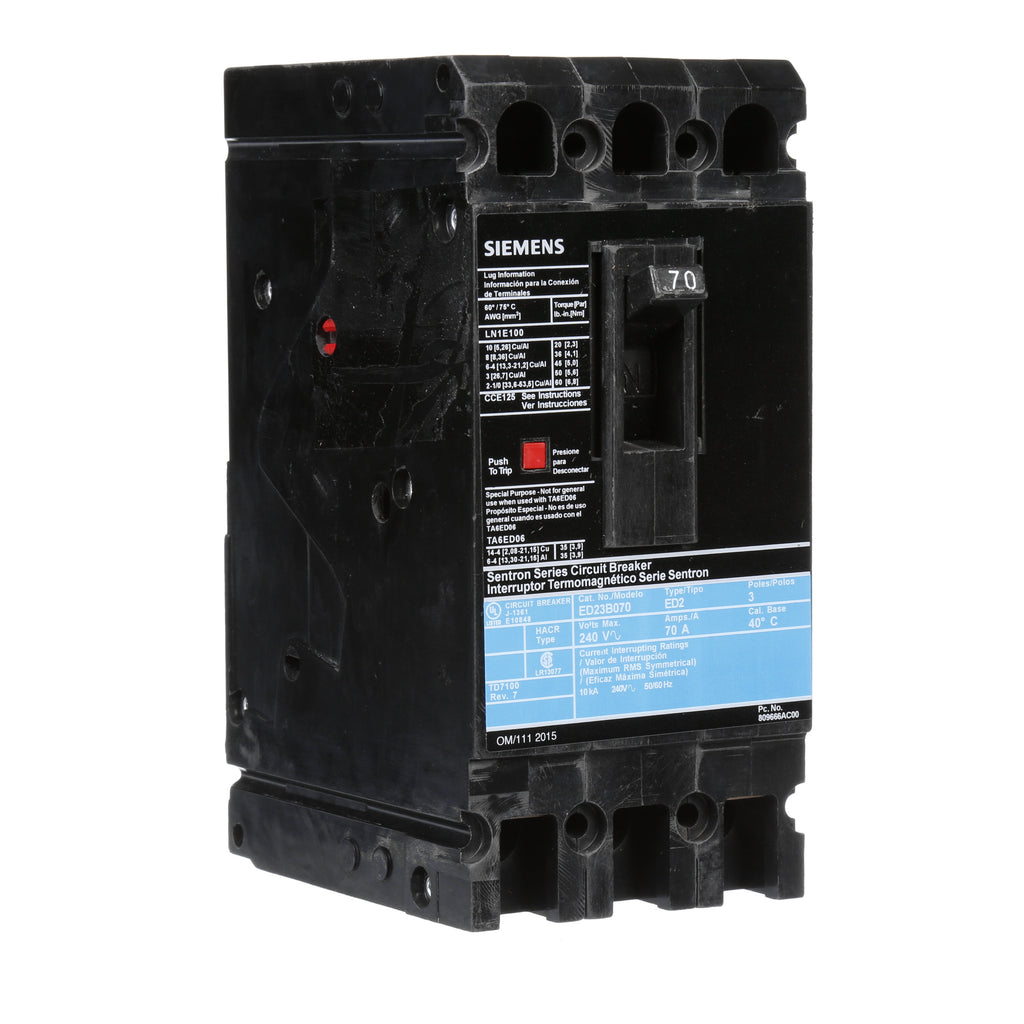

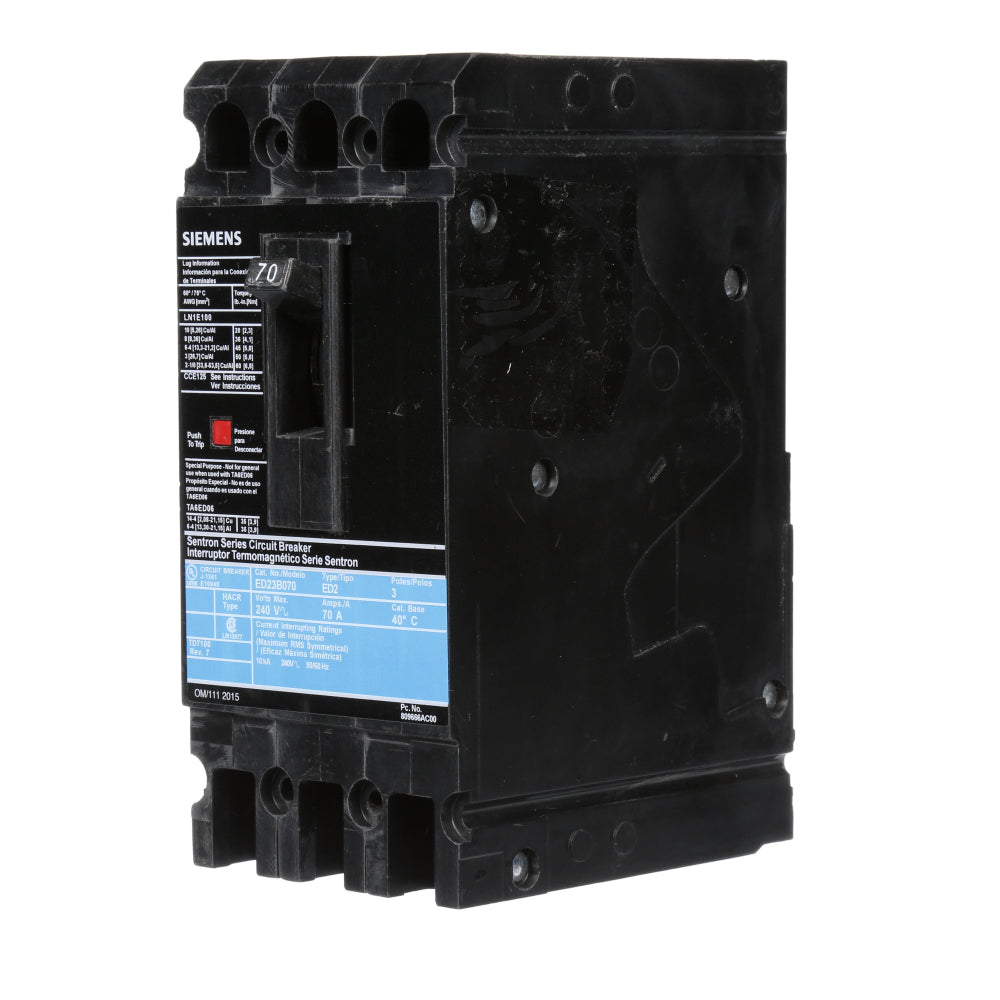

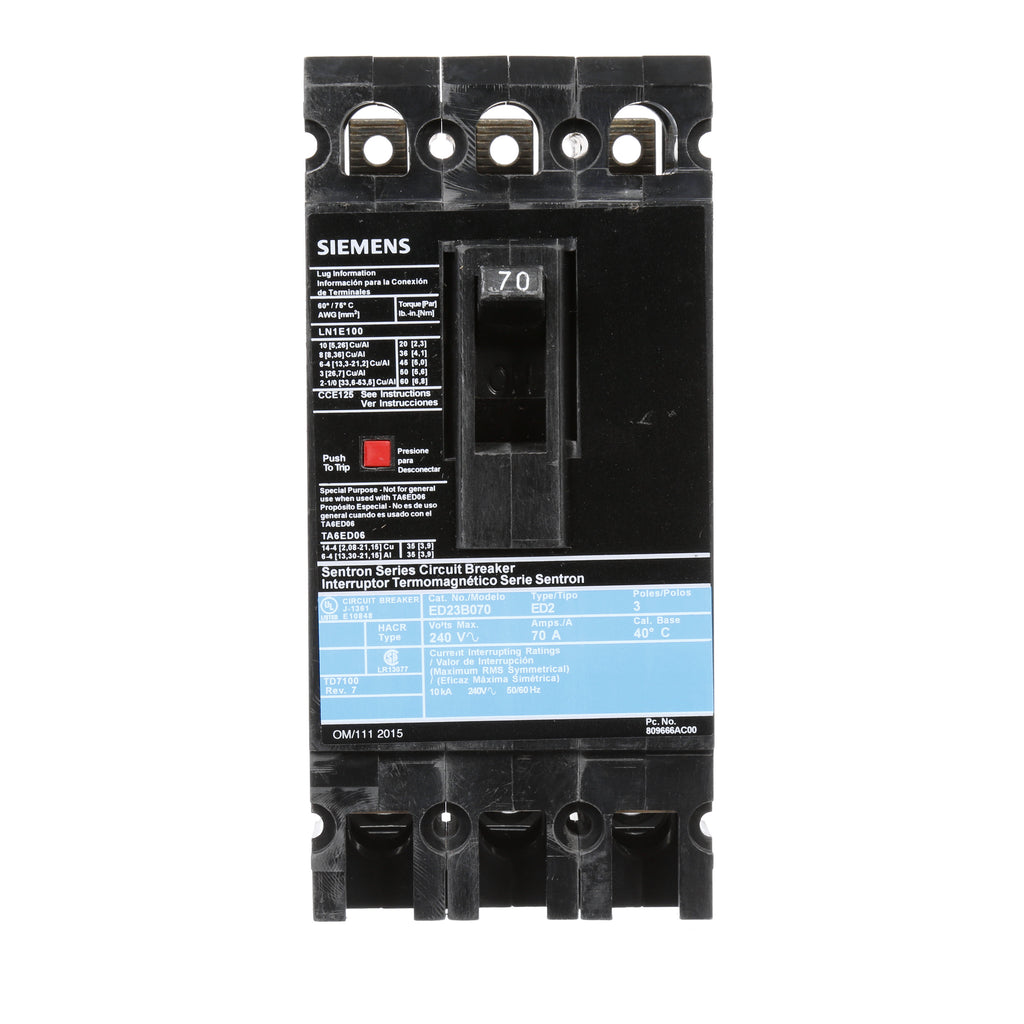

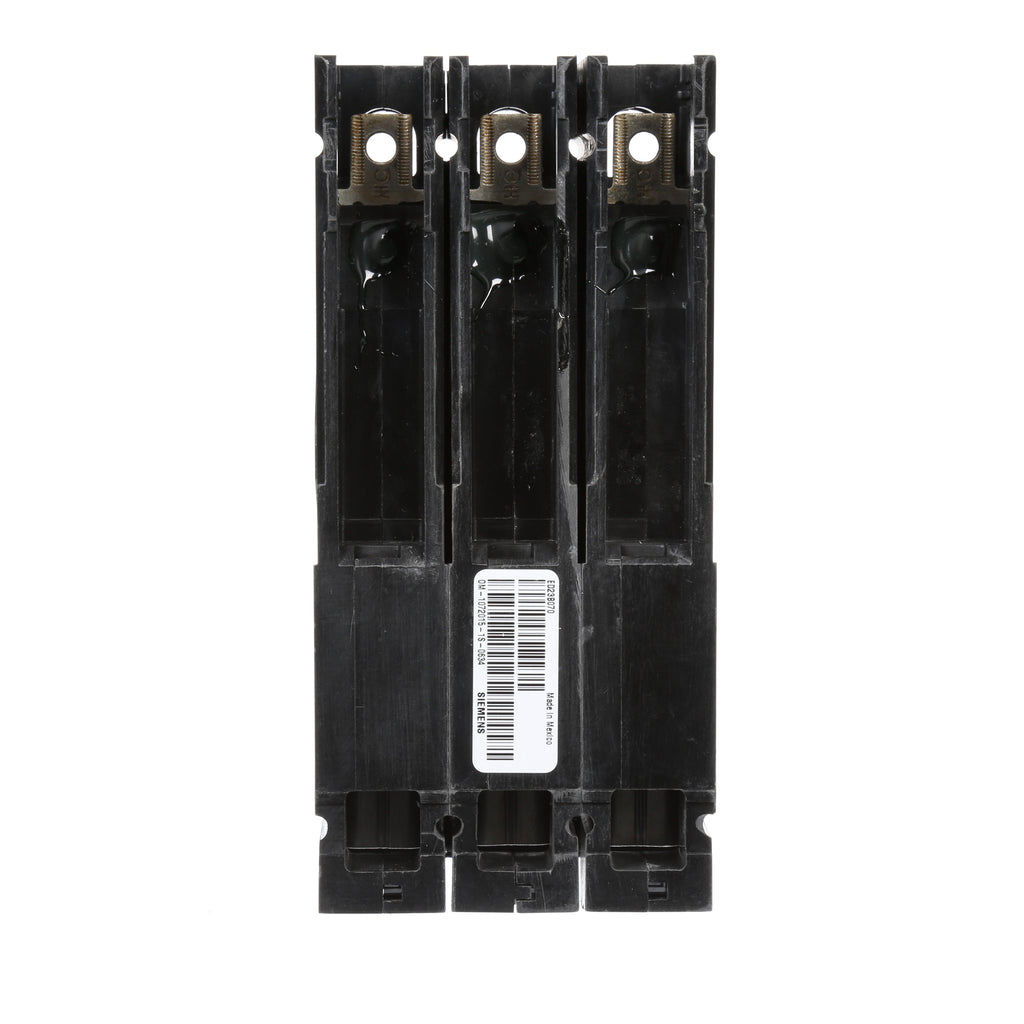

ED23B070 - Siemens 70 Amp 240V 3-Pole ED Frame Circuit Breaker

ED23B070

ED23B070 is a Siemens 3-pole circuit breaker rated for 70 amps and 240 volts, designed for reliable circuit protection in industrial and commercial applications.This Siemens ED frame breaker features a bolt-on mounting type, a standard interrupt rating of 10 kA at 240 VAC, and a non-interchangeable trip unit. It is rated for operation at 40 degrees Celsius and includes load lug terminals for secure connections.

• Manufacturer: Siemens
• Part Number: ED23B070
• Amperage: 70 Amps
• Voltage: 240 VAC
• Poles: 3
• Frame Type: ED
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 240 VAC
• Trip Unit: Non-Interchangeable
• Operating Temperature: 40°C
• Special Features: Load Lug Terminals
• Certifications: Standard industrial certifications (per Siemens ED frame standards)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED23B070
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209053
• GTIN : 00783643209053
• Country of Origin : Mexico
• Dimensions : 3 in x 6.34 in
• Weight : 0.328
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
