ED23B060 - Siemens 60 Amp 3 Pole 240VAC 10kAIC Molded Case Circuit Breaker, Sentron ED2 Series, Thermal Magnetic Trip, UL 489 / IEC 60947-2

ED23B060

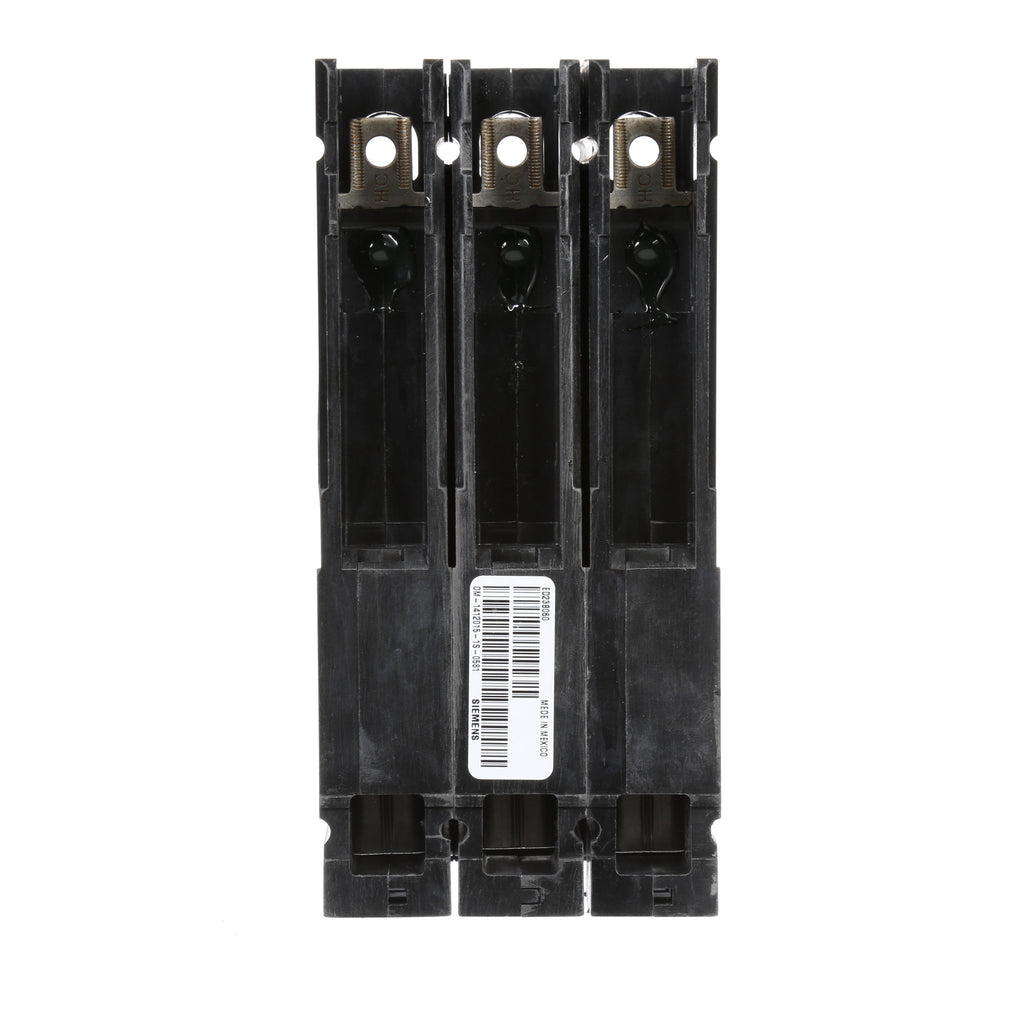

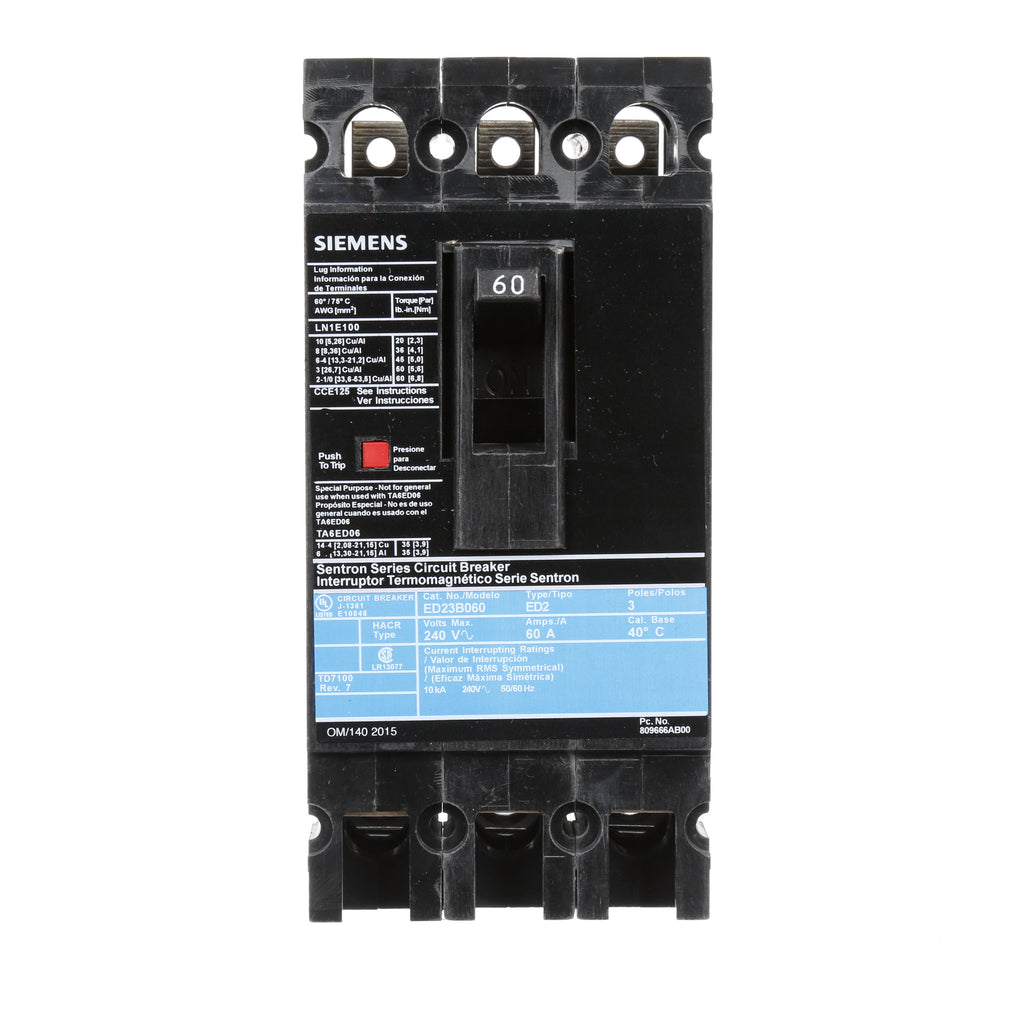

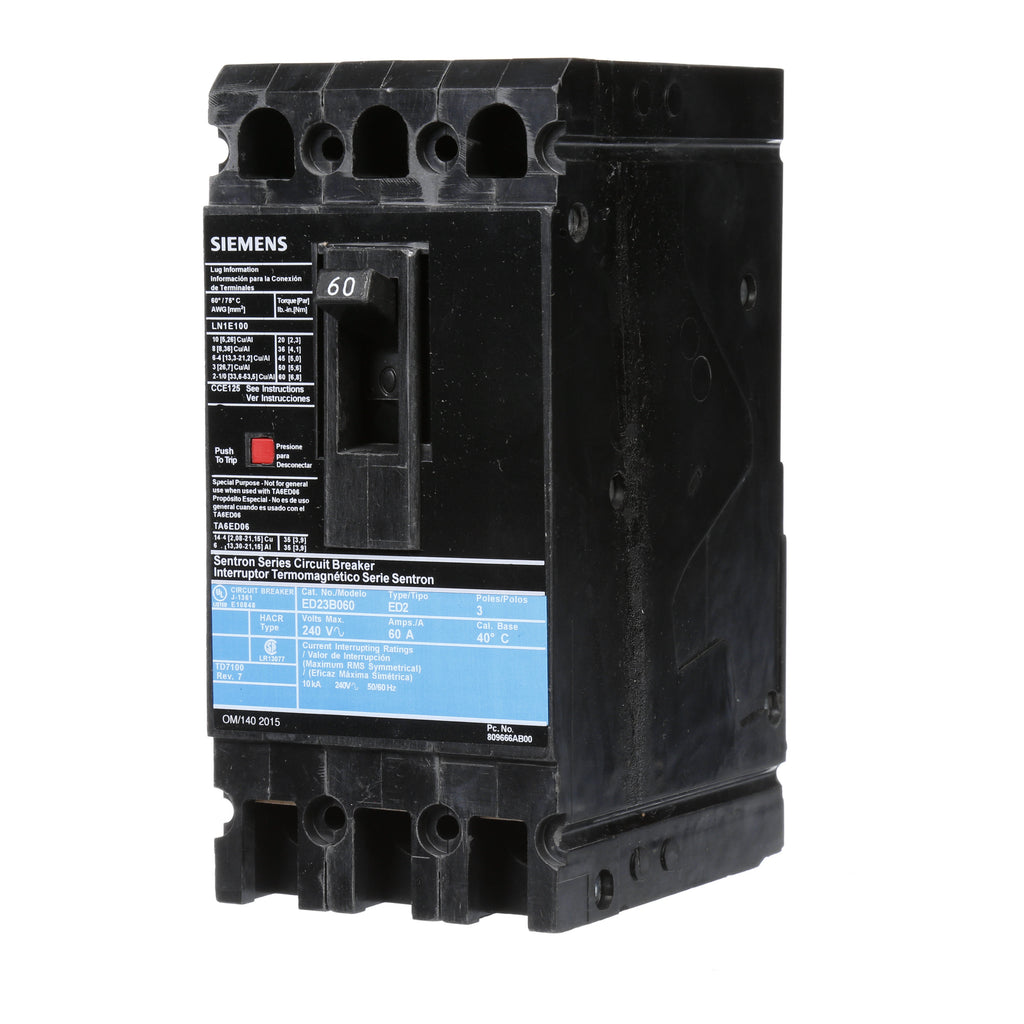

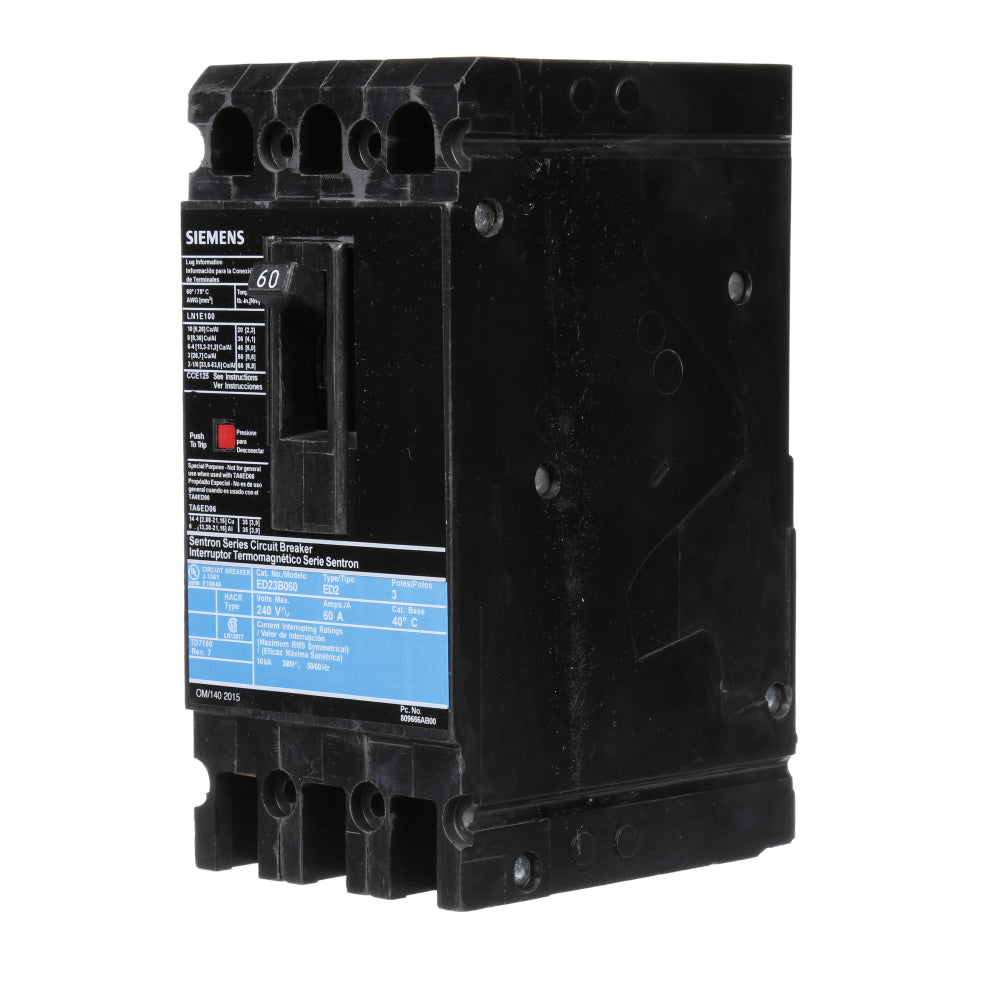

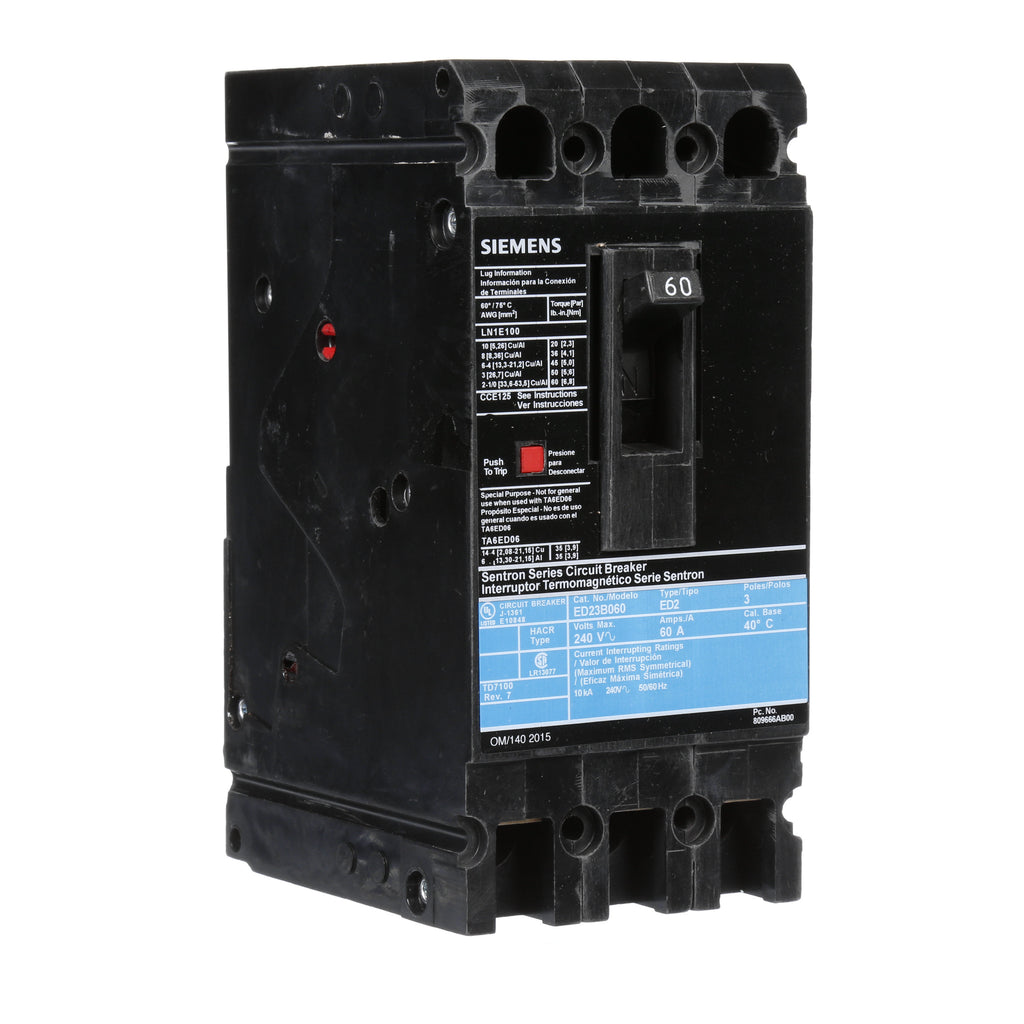

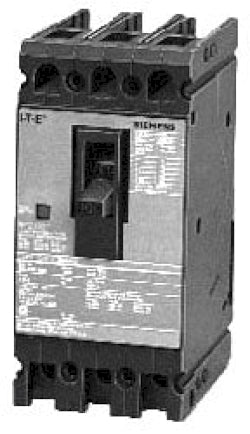

ED23B060 is a Siemens Sentron ED2 Series molded case circuit breaker designed for reliable power distribution protection.

This thermal magnetic circuit breaker features a 60 Amp current rating, 3 poles, and a voltage rating of 240VAC (also suitable for 125VDC). It offers a 10kA interrupting rating at 240VAC, complies with UL 489 and IEC 60947-2 standards, and is equipped with load lugs only (LN1E100), accepting 10–1/0 AWG copper wire. The ED2 frame supports up to 100A, with a 60A trip unit, and is rated for operation at 40°C ambient temperature.

Key Specifications
• Part Number: ED23B060
• Manufacturer: Siemens
• Amperage: 60A
• Voltage: 240VAC / 125VDC
• Poles: 3
• Mounting Type: Panel Mount (Molded Case)
• Interrupt Rating: 10kAIC at 240VAC
• Series/Frame: Sentron ED2 (Frame: 100A)
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, IEC 60947-2
• Wire Range: 10–1/0 AWG (Copper)
• Ambient Temperature: 40°C
• Special Features: Load Lugs Only

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED23B060
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209046
• GTIN : 00783643209046
• Country of Origin : Mexico
• Dimensions : 3 in x 6.34 in
• Weight : 3.719
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
