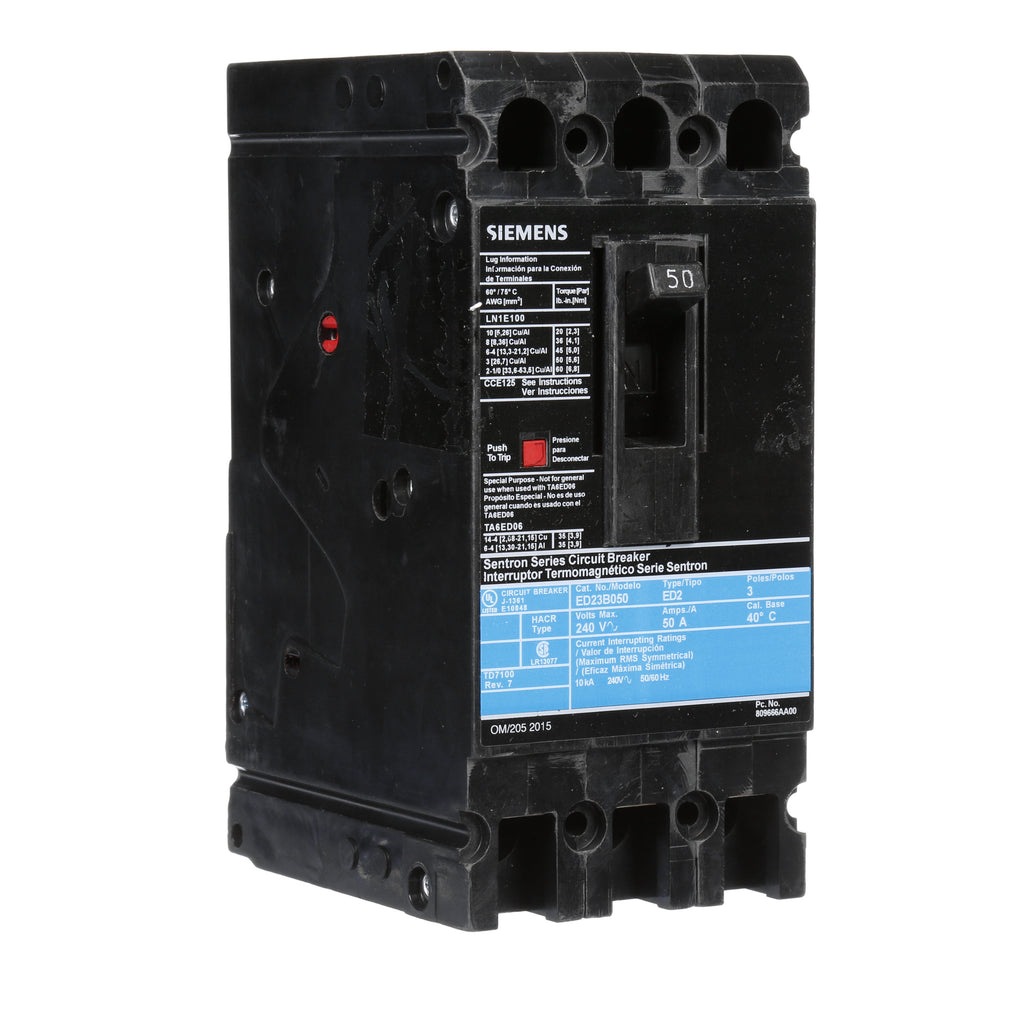

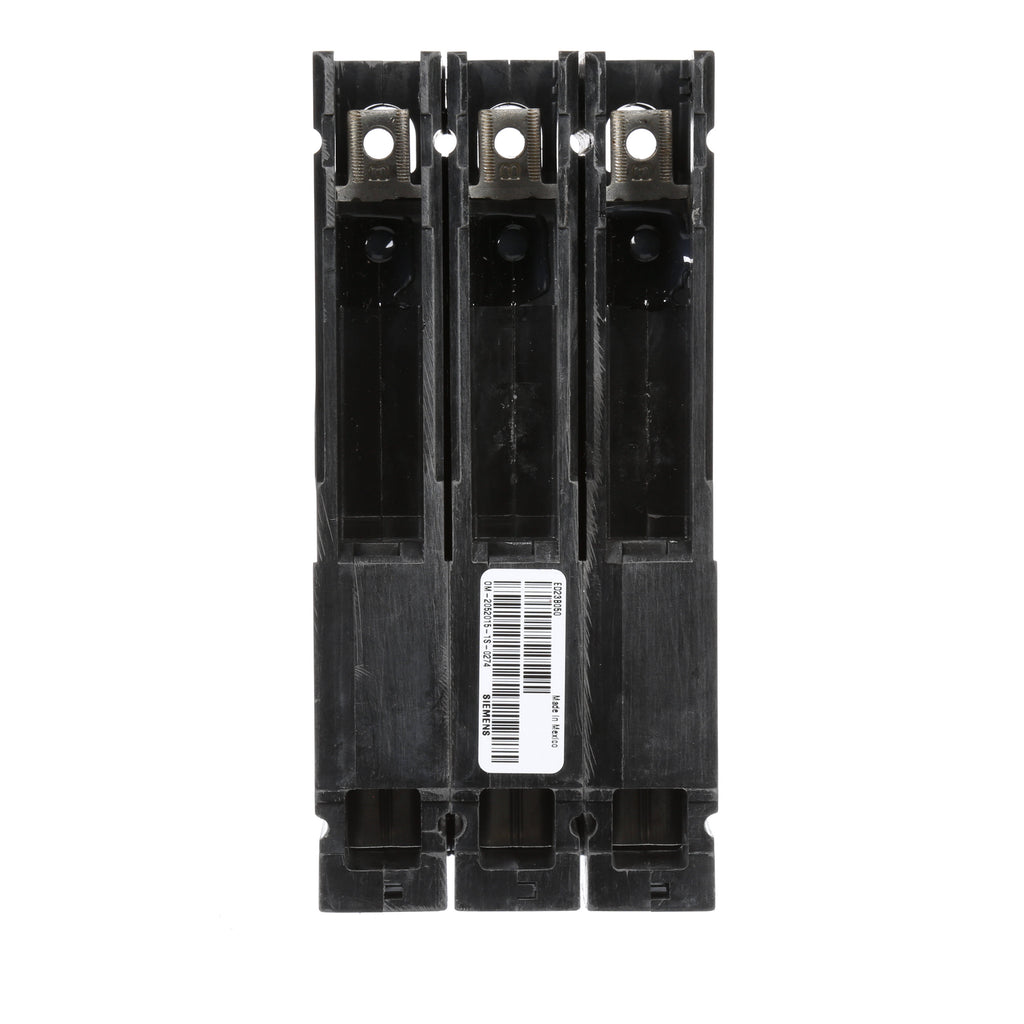

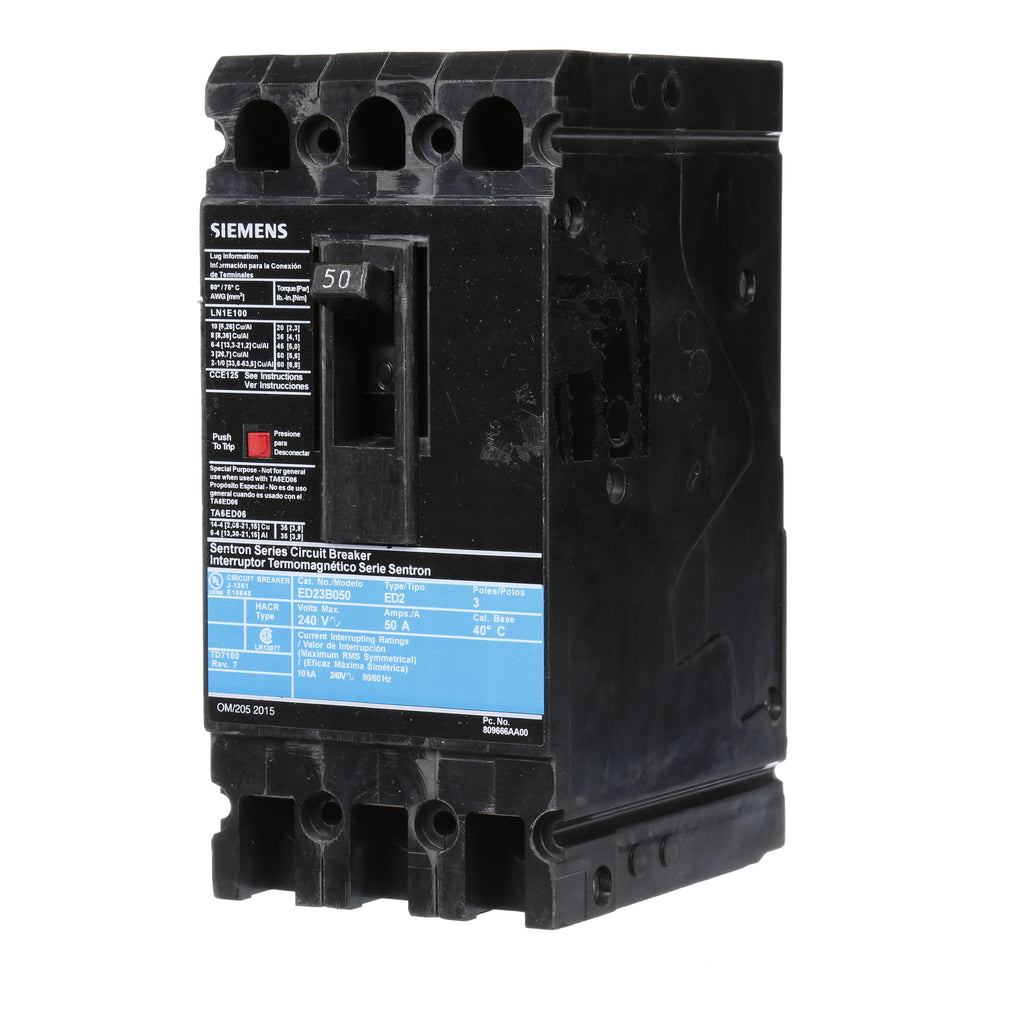

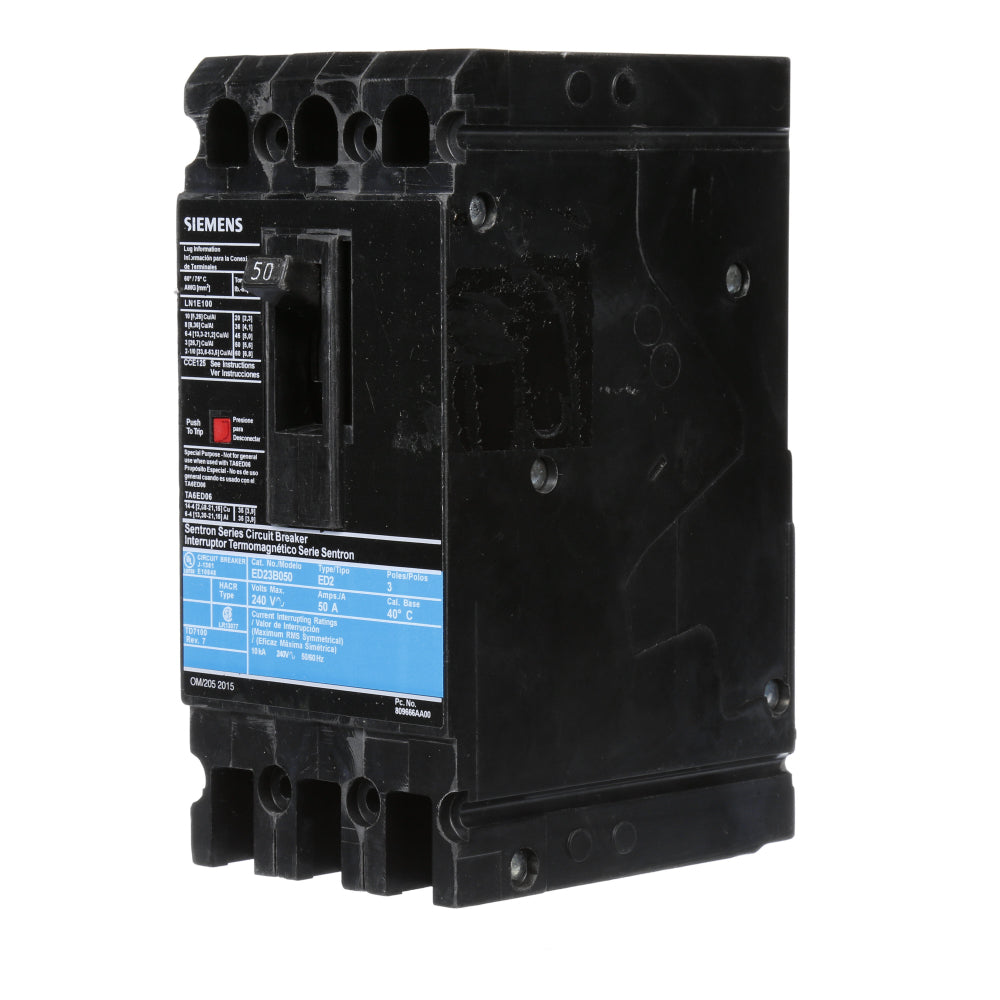

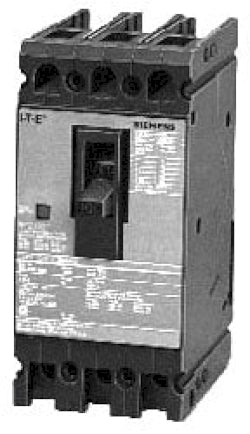

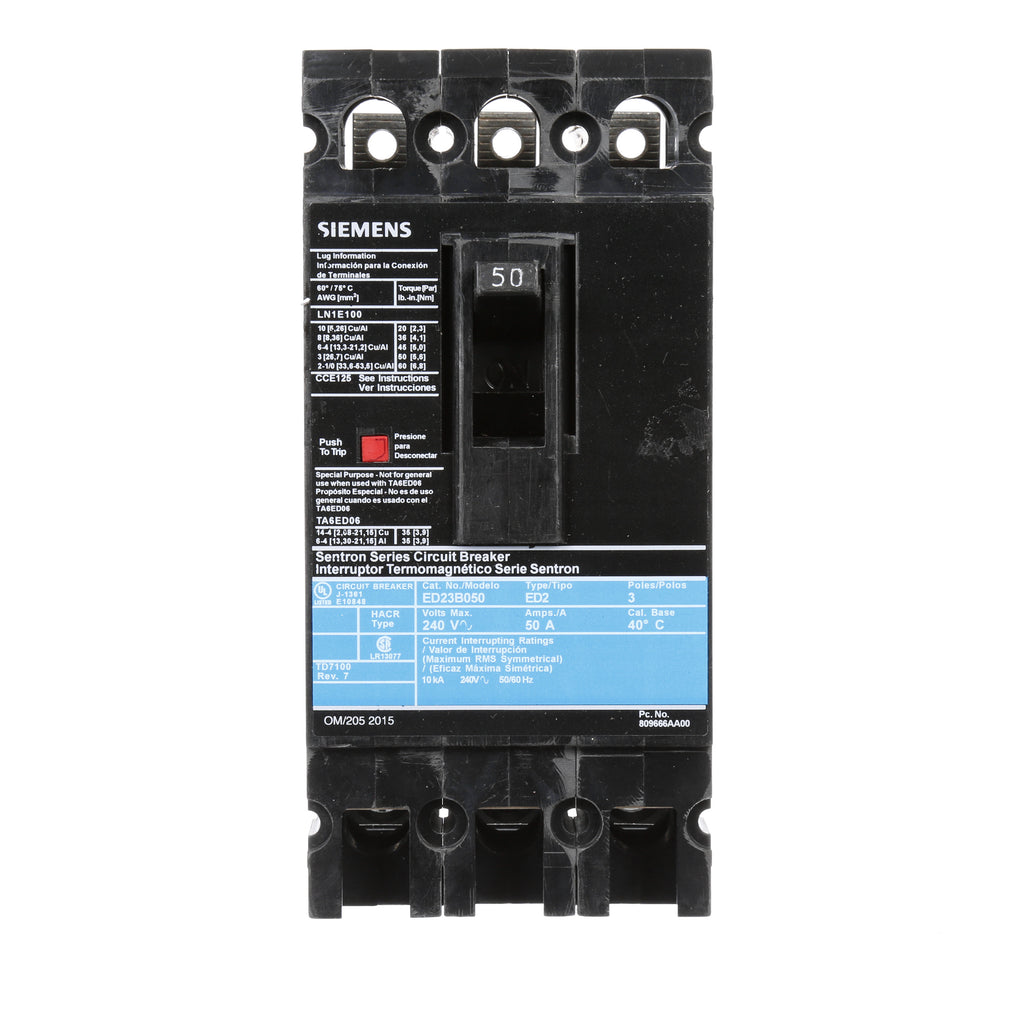

ED23B050 - Siemens 50 Amp 240V 3-Pole Molded Case Circuit Breaker ED Frame Bolt-On Mount

ED23B050

ED23B050 is a Siemens 3-pole molded case circuit breaker rated for 50 amps and 240 volts AC, designed for bolt-on mounting.This Siemens Sentron ED series breaker features a thermal magnetic trip unit with a 10kA interrupting rating at 240 VAC. It is rated for 50 amps continuous current at 40 degrees Celsius and supports 3-phase power distribution. The breaker is bolt-on mounted and UL listed, suitable for industrial and commercial electrical protection.

• Manufacturer: Siemens
• Part Number: ED23B050
• Amperage: 50 Amps
• Voltage Rating: 240 VAC
• Poles: 3
• Interrupt Rating: 10 kA at 240 VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Series/Frame: Sentron ED
• Temperature Rating: 40°C
• Phase: 3-Phase
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED23B050
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209039
• GTIN : 00783643209039
• Country of Origin : Mexico
• Dimensions : 3 in x 6.34 in
• Weight : 3.62
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
