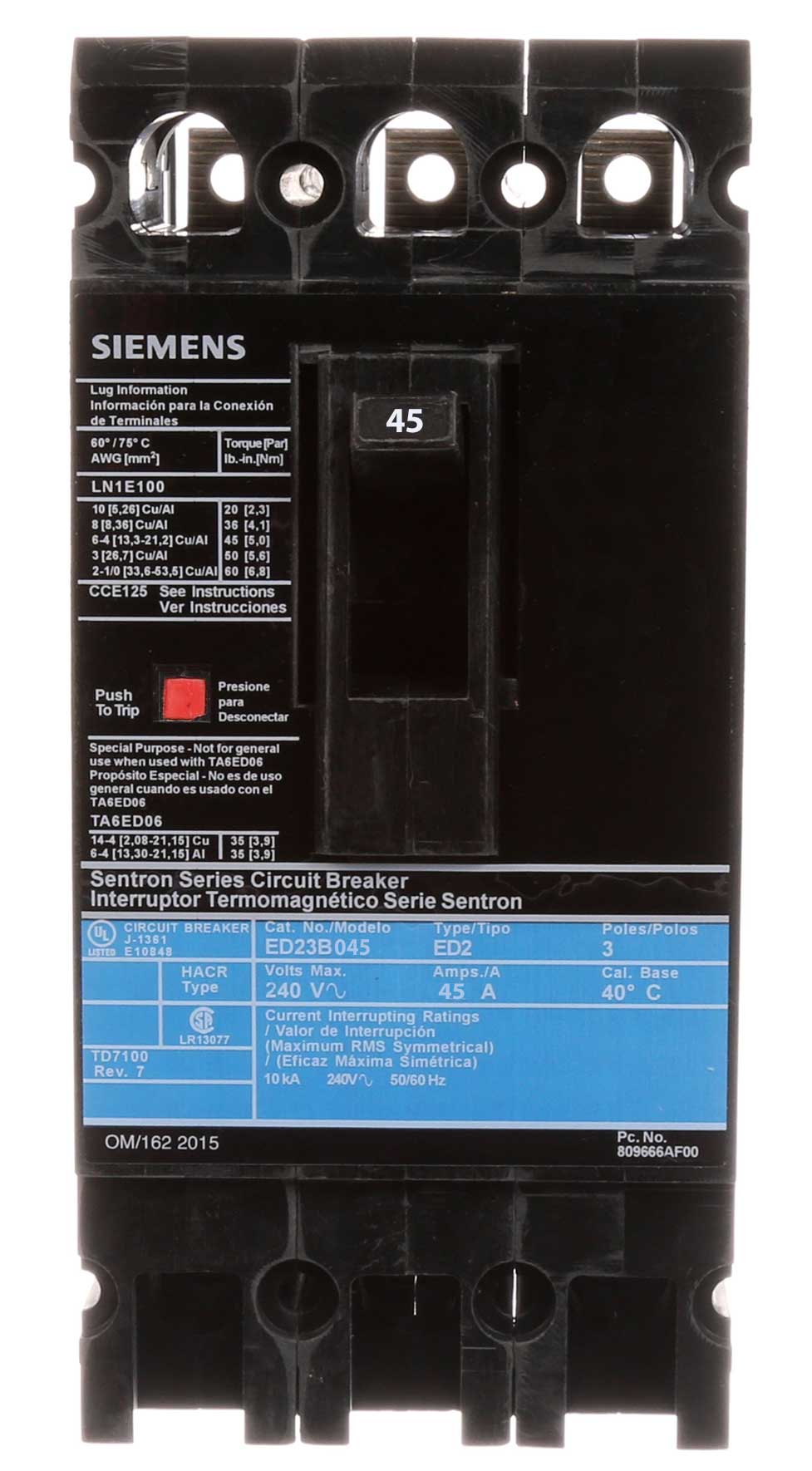

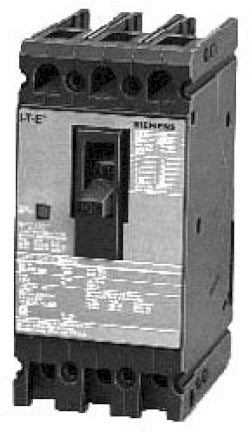

ED23B045 - Siemens 45A 240V 3-Pole Molded Case Circuit Breaker Thermal Magnetic Trip

ED23B045

ED23B045 is a Siemens Sentron Series 3-pole molded case circuit breaker designed for reliable protection in 240V electrical systems. This breaker features a 45A current rating and a 10kA interrupt capacity, making it suitable for a wide range of commercial and industrial applications. The ED23B045 is a bolt-on, thermal magnetic trip unit breaker with standard interrupting capacity. It is rated for 40°C operation and meets UL 489 and IEC 60947-2 standards. The breaker is ideal for use in panels requiring dependable circuit protection and easy installation.

• Part Number: ED23B045
• Manufacturer: Siemens
• Series: Sentron
• Frame: ED
• Poles: 3
• Amperage: 45A
• Voltage: 240VAC
• Interrupt Rating: 10kA at 240V
• Mounting Type: Bolt-on
• Trip Unit: Thermal Magnetic
• Standards: UL 489, IEC 60947-2
• Operating Temperature: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED23B045
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209022
• GTIN : 00783643209022
• Country of Origin : Mexico
• Weight : 3.62
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
