Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED23B040L

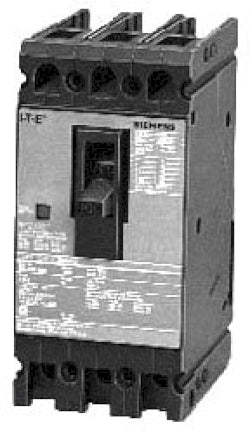

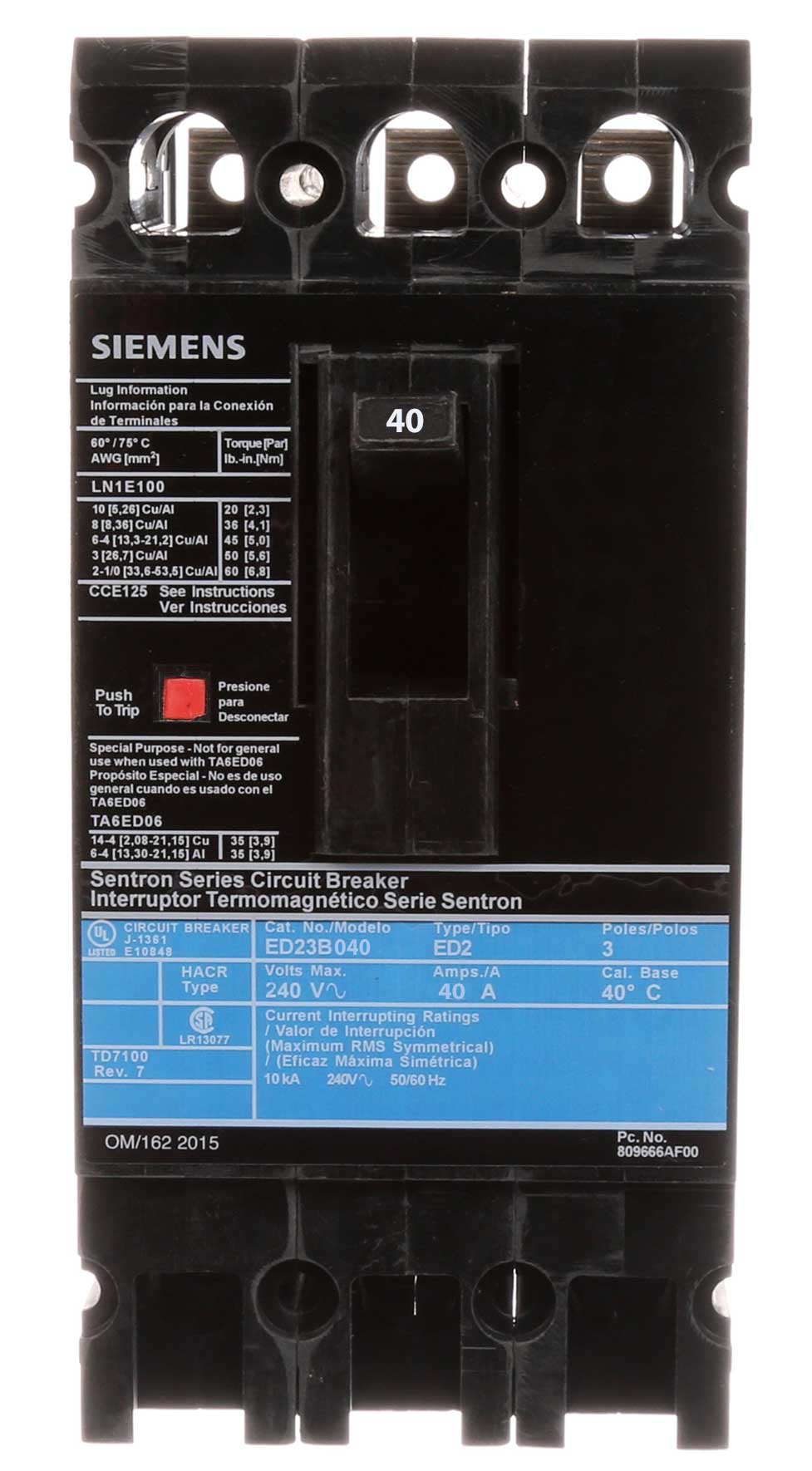

ED23B040L is a Siemens Sentron Series molded case circuit breaker designed for reliable protection in electrical systems.This 3-pole breaker is rated for 40 amps at 240 volts with a 10kA interrupting capacity at 240V. It features a thermal-magnetic trip unit and is part of the ED frame series. The breaker supports line and load lug connections and accommodates wire sizes from 10 to 1/0 AWG copper. It meets UL 489 and IEC 60947-2 standards for safety and performance.
- Key Specifications
- Amperage: 40A
- Voltage: 240V AC
- Poles: 3
- Interrupt Rating: 10kA at 240V
- Series/Frame: Sentron Series, ED Frame
- Trip Unit: Thermal-Magnetic
- Mounting Type: Molded Case
- Wire Range: 10 to 1/0 AWG Copper
- Certifications: UL 489, IEC 60947-2
- Special Features: Line and Load Lugs
- Part Number: ED23B040L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 240
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Protection : Thermal Magnetic
- UPC : 783643003095
- GTIN : 00783643003095
- Country of Origin : Mexico
- Weight : 3.505
