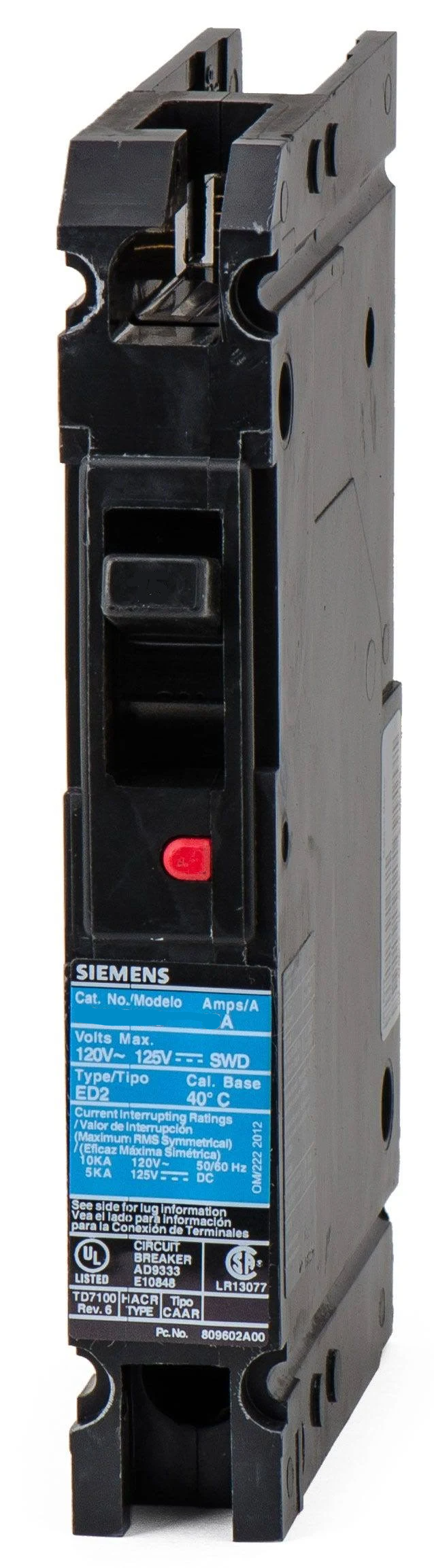

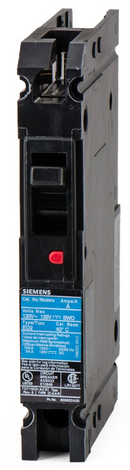

ED21B070 - Siemens 70A 1-Pole Molded Case Circuit Breaker 120V AC 10kA ED2 Series

ED21B070

ED21B070 is a Siemens 70 Amp, 1-pole molded case circuit breaker designed for 120V AC applications with a 10kA interrupt rating.

This ED2 series breaker features a thermal magnetic trip unit with a fixed instantaneous trip, bolt-on mounting style, and load-side lug terminal connections. It is suitable for use with SB switchboards and Sentron panelboards, rated for 125V DC as well. The breaker is HACR rated and UL listed, ensuring compliance with industry standards.

• Amperage: 70A
• Voltage Rating: 120V AC
• Number of Poles: 1
• Interrupt Rating: 10kA at 120V AC
• Series/Frame: ED2 (125A/ED frame size)
• Trip Unit: Thermal Magnetic, Fixed Instantaneous Trip
• Mounting Type: Bolt On
• Terminal Connection: Load Side Lug
• DC Voltage Rating: 125V DC
• Standards: HACR Rated, UL Listed
• Phase: Single Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED21B070
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 120
• Amperage : 70
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643208797
• GTIN : 00783643208797
• Country of Origin : Mexico
• Weight : 1.1
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
