Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED21B020

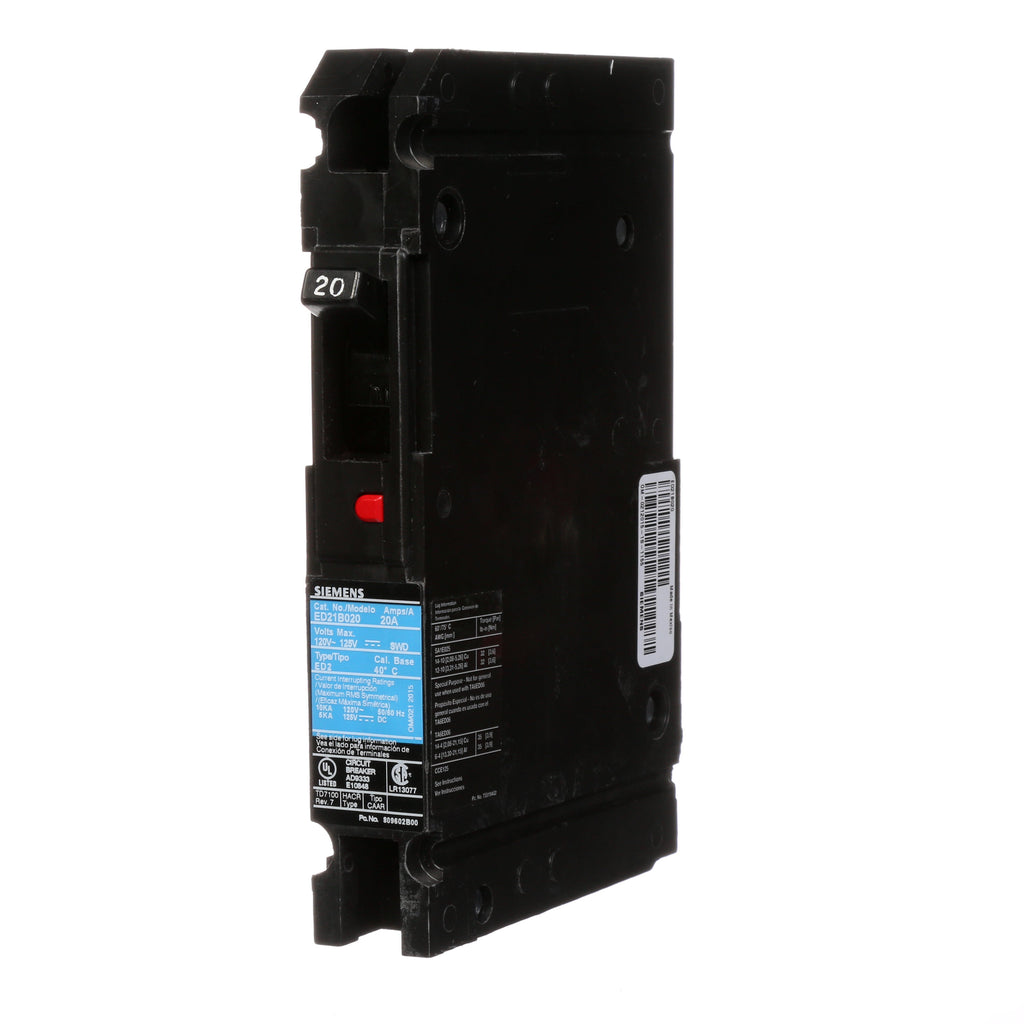

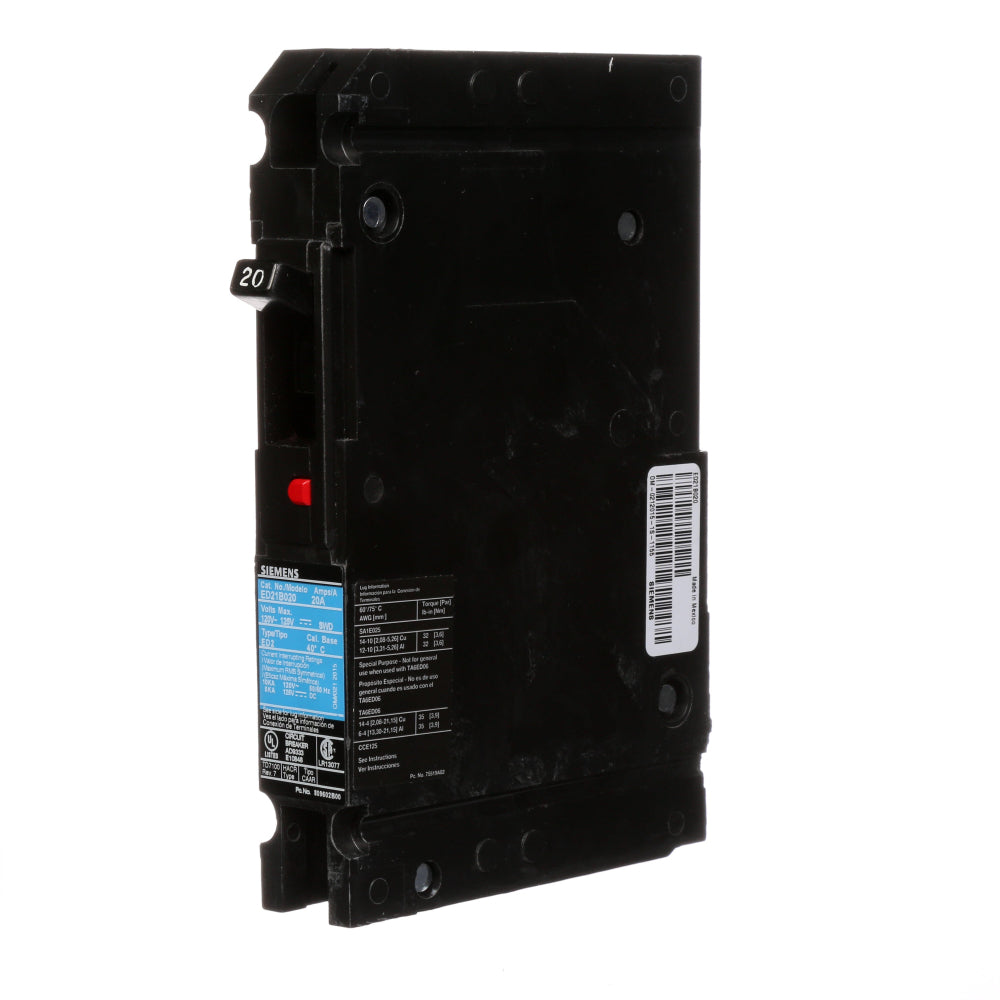

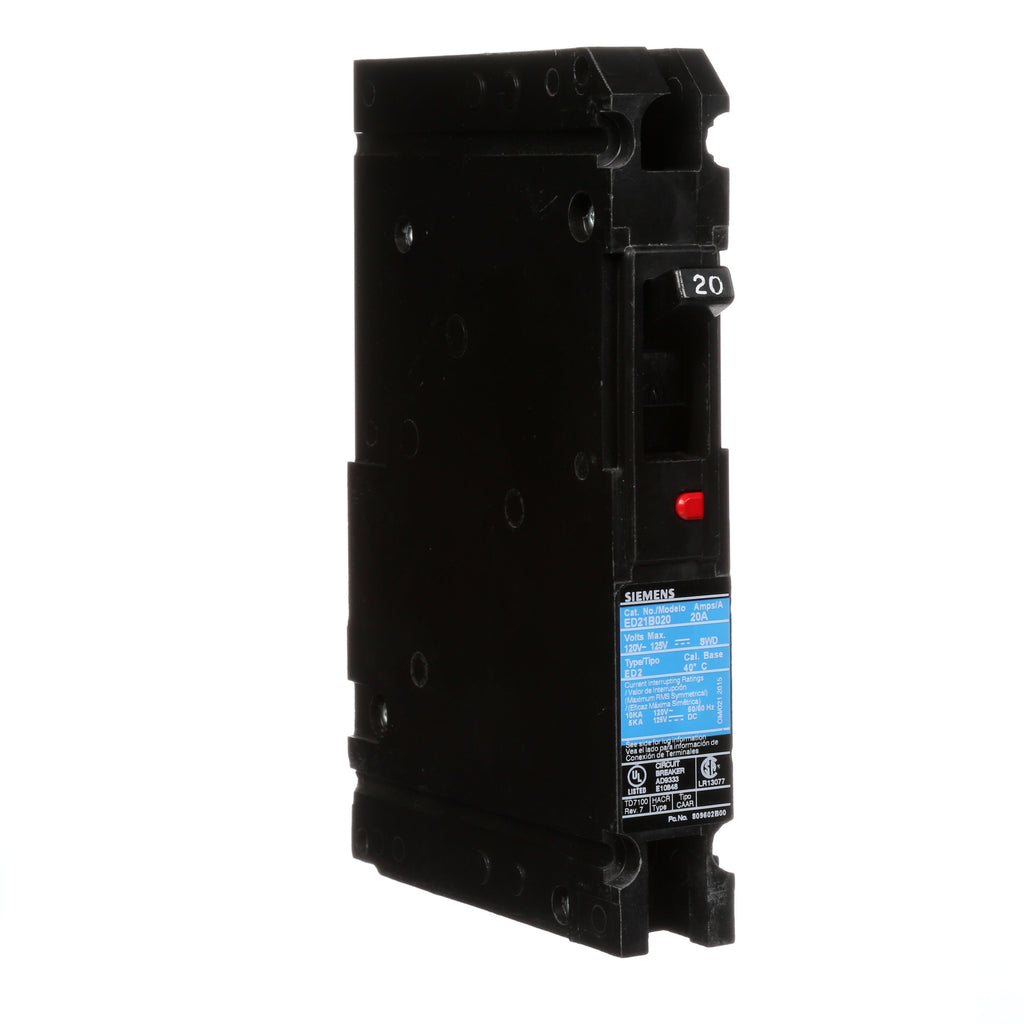

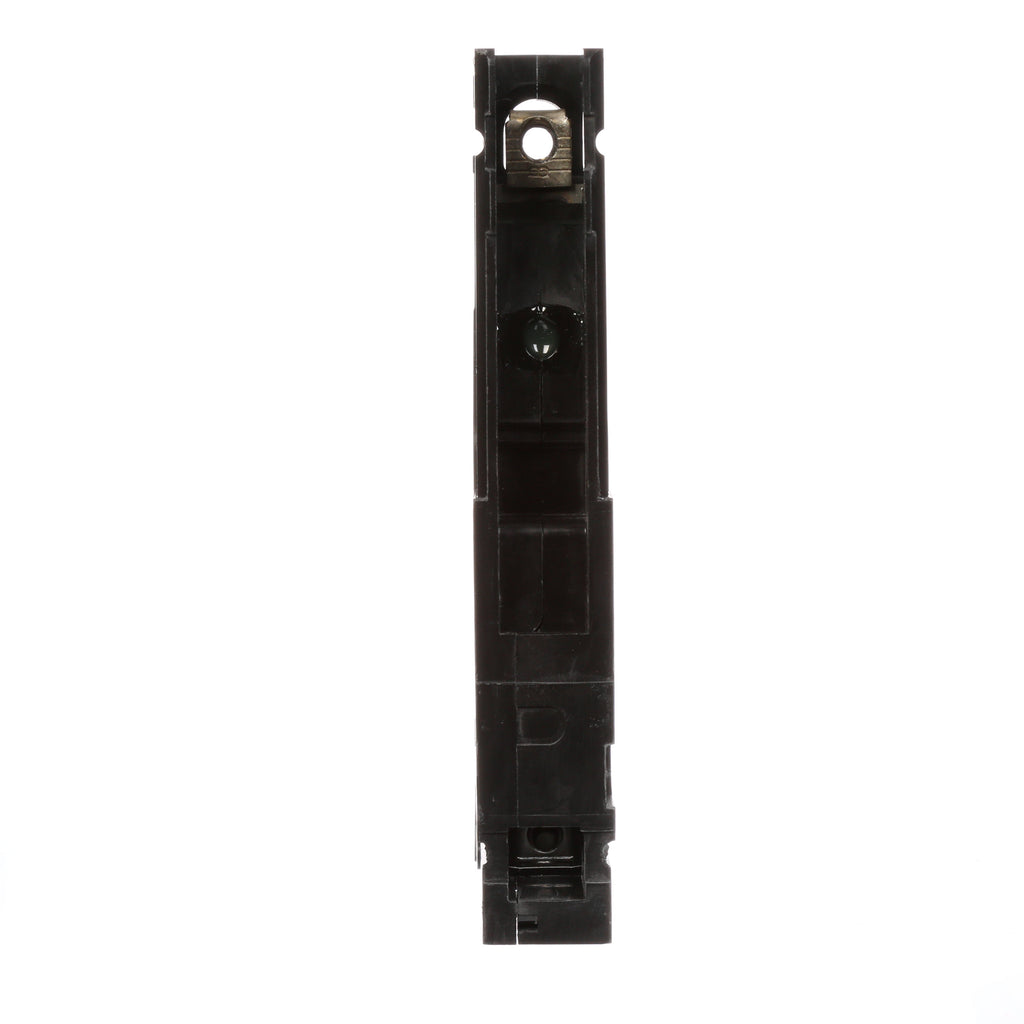

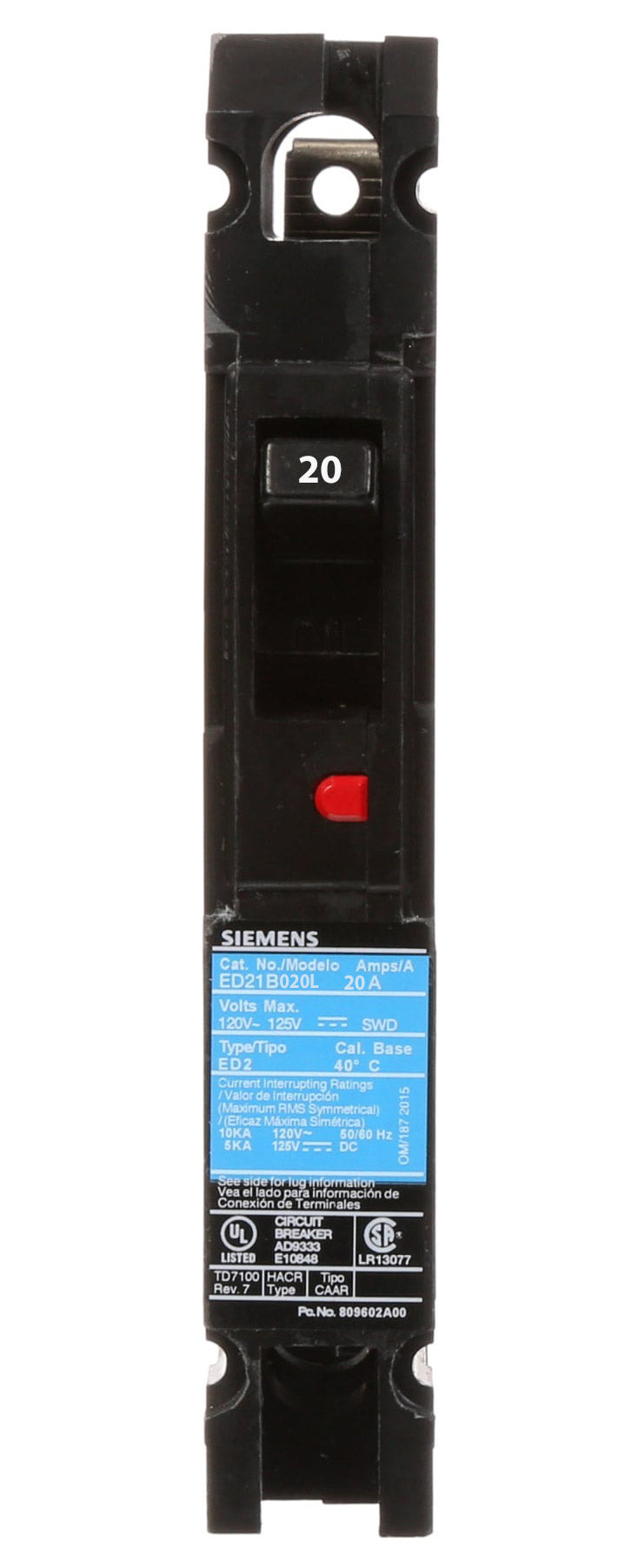

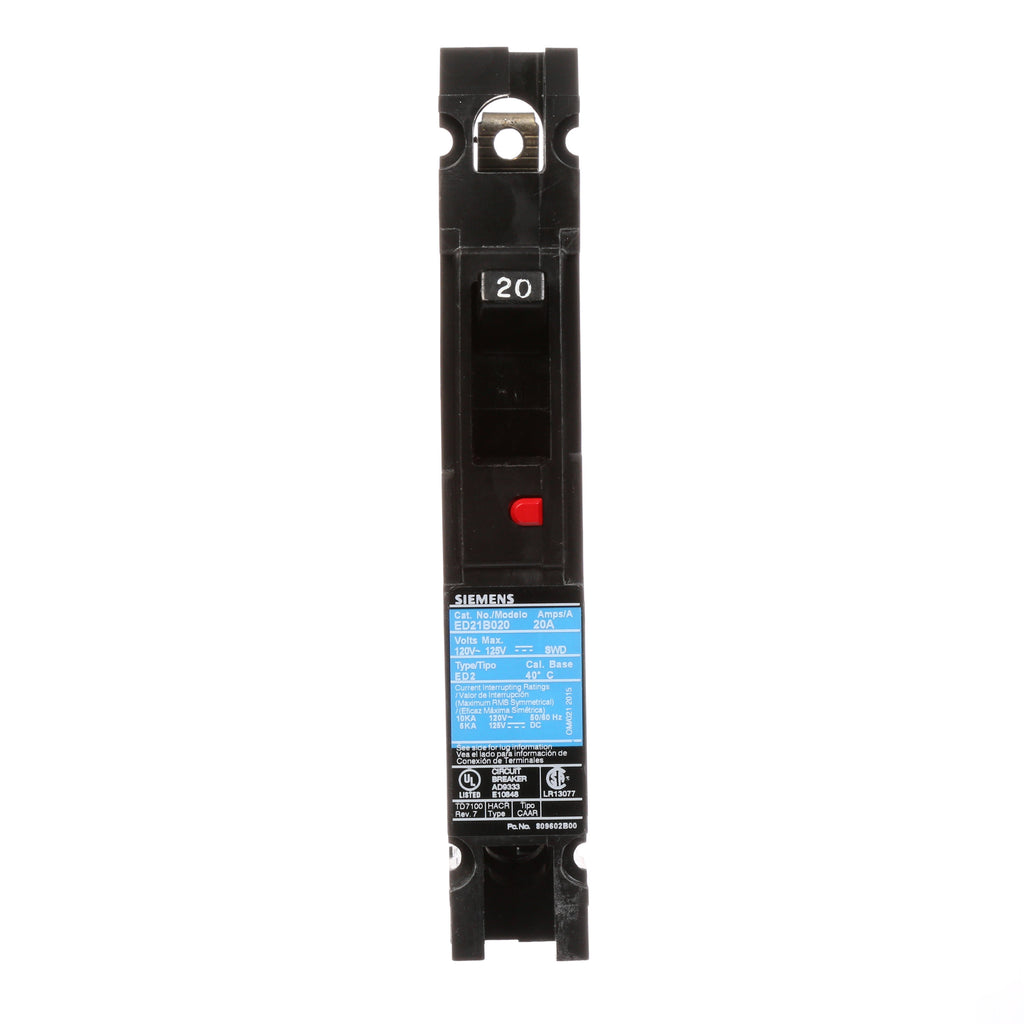

ED21B020 is a Siemens 20 Amp, 120 Volt, 1-pole molded case circuit breaker designed for reliable overload and short circuit protection.This Siemens ED series breaker features a thermal-magnetic trip unit with a 10kA interrupt rating at 120V AC, bolt-on mounting, and is UL 489 and CSA listed. It supports wire sizes 14-10 AWG copper and 12-10 AWG aluminum with load lug terminals. The breaker is compact and suitable for various low voltage electrical applications.
- Amperage: 20A
- Voltage: 120 VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA at 120V AC
- Series/Frame: ED
- Trip Unit: Thermal-Magnetic
- Wire Range: 14-10 AWG Cu, 12-10 AWG Al
- Certifications: UL 489 Listed, CSA Certified
- Connection Type: Load Lugs
- Operating Temperature: 40°C
Specifications
- Part Number: ED21B020
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 078364320871
- GTIN : 00783643208711
- Country of Origin : Mexico
- Weight : 0.981
