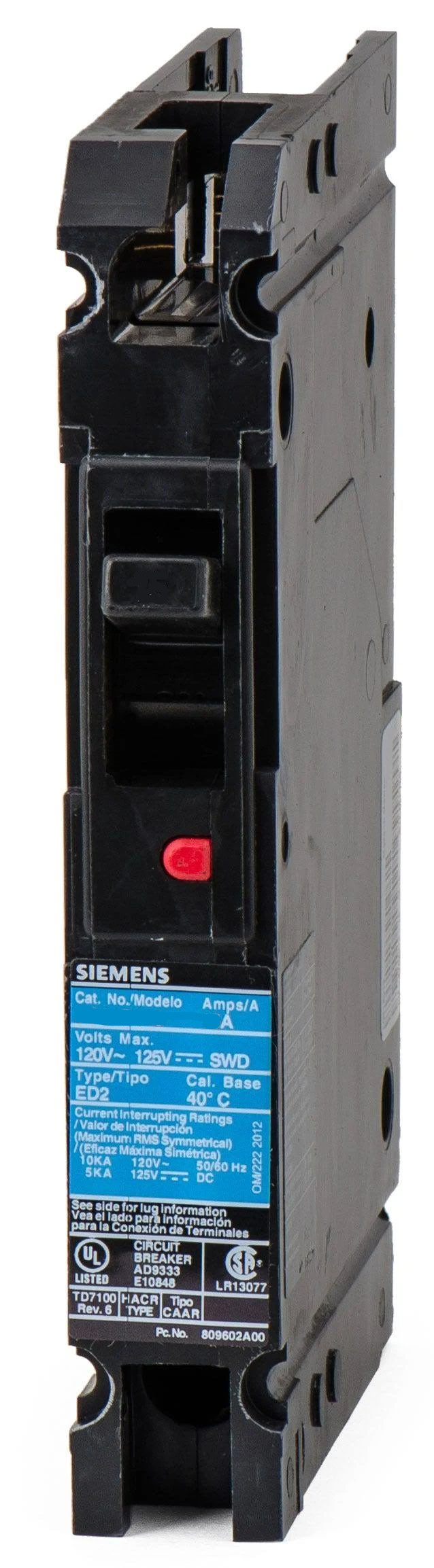

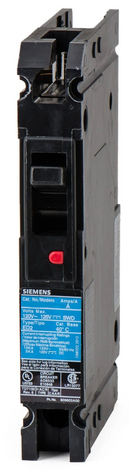

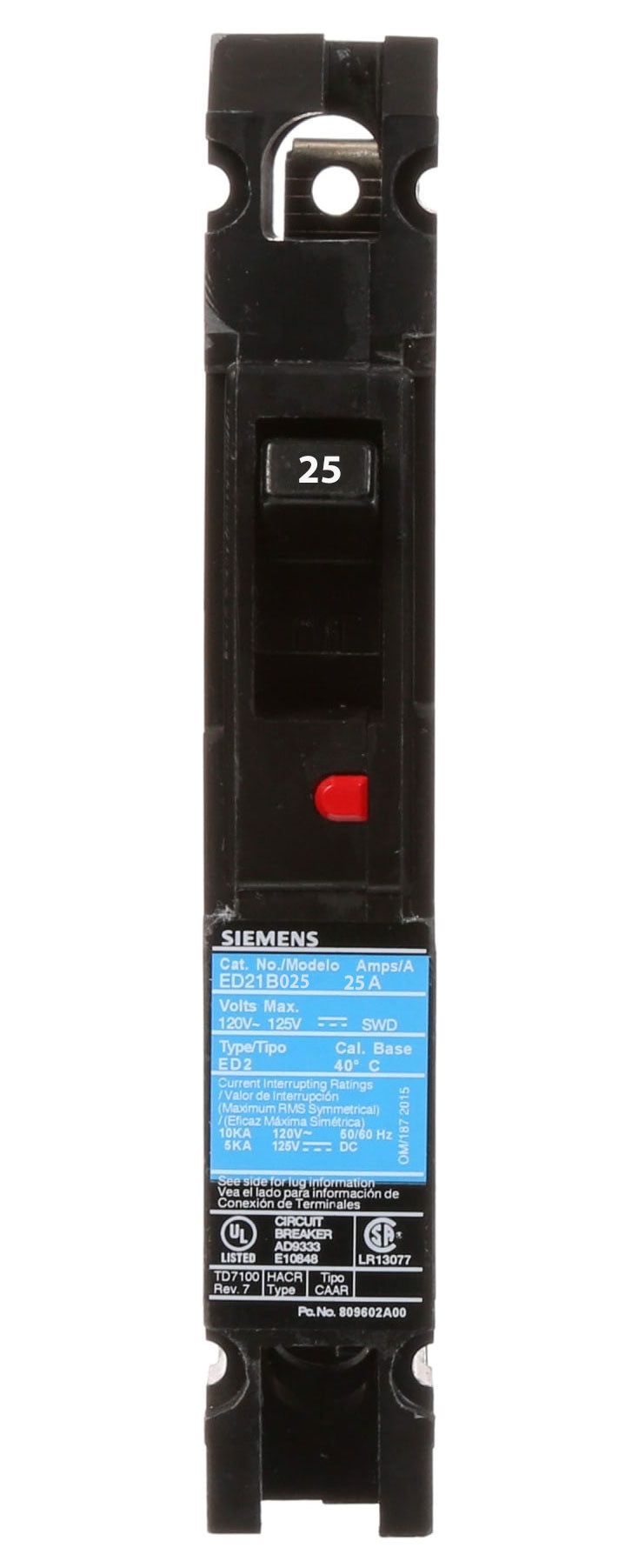

ED21B025 - Siemens 25A 1-Pole Molded Case Circuit Breaker 120V AC ED Frame 10kA Interrupt Rating

ED21B025

ED21B025 is a Siemens 25 Amp, 1-pole molded case circuit breaker designed for 120V AC applications with a 10kA interrupt rating.This Siemens ED21B025 circuit breaker belongs to the ED series frame and features a thermal magnetic trip unit. It is rated for 25 amps and 120 volts AC, with a DC voltage rating of 125V. The breaker is HACR rated and meets UL 489 and IEC 60947-2 standards, providing reliable overload and short circuit protection. It supports load lug connections with wire ranges of 14-10 AWG copper and 12-10 AWG aluminum. The breaker is suitable for use in SB switchboards and Sentron panelboards.

• Amperage: 25A
• Voltage: 120V AC, 125V DC
• Poles: 1
• Interrupt Rating: 10kA at 120V AC
• Series/Frame: ED2
• Trip Unit: Thermal Magnetic
• Mounting Type: Load Lug
• Wire Range: 14-10 AWG (Cu), 12-10 AWG (Al)
• Certifications: UL 489, IEC 60947-2, HACR Rated
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED21B025
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 120
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643208728
• GTIN : 00783643208728
• Country of Origin : Mexico
• Weight : 1.199
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Wire Size : AWG 14 to AWG 10, AWG 12 to AWG 10, Copper/Aluminum
