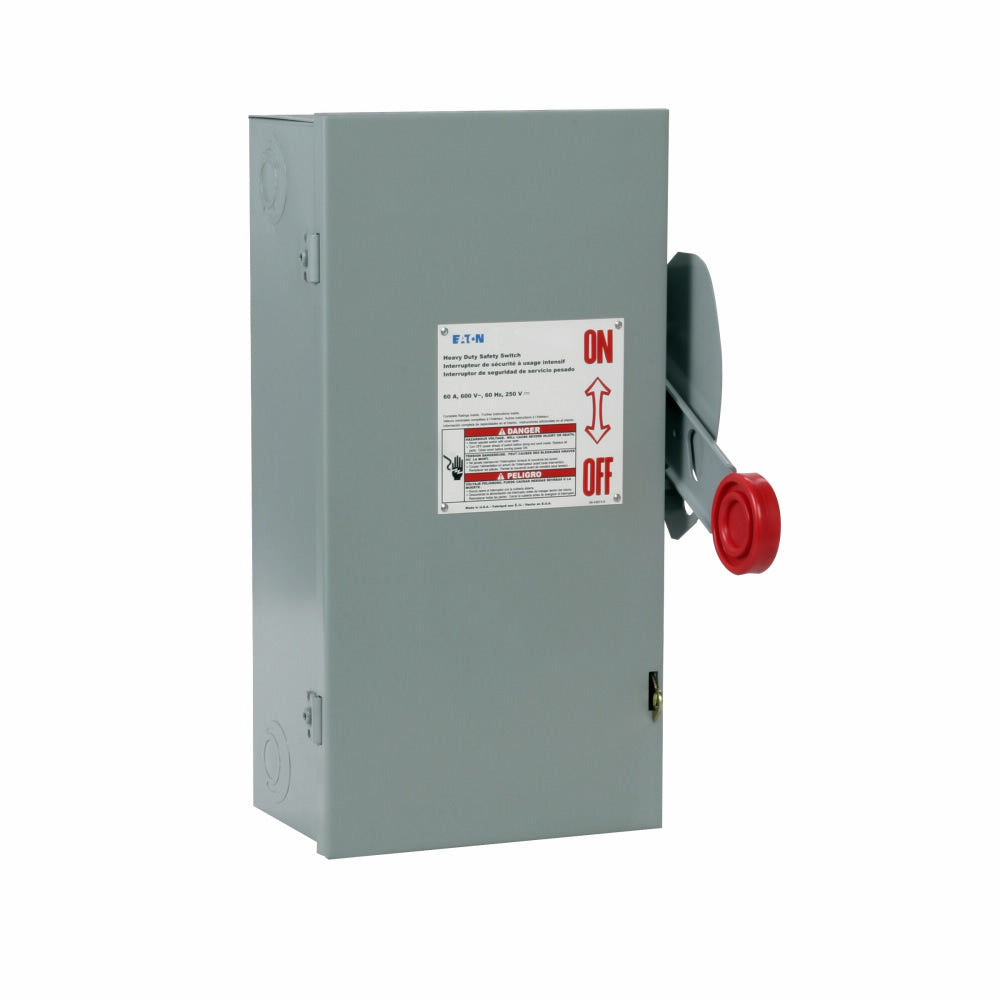

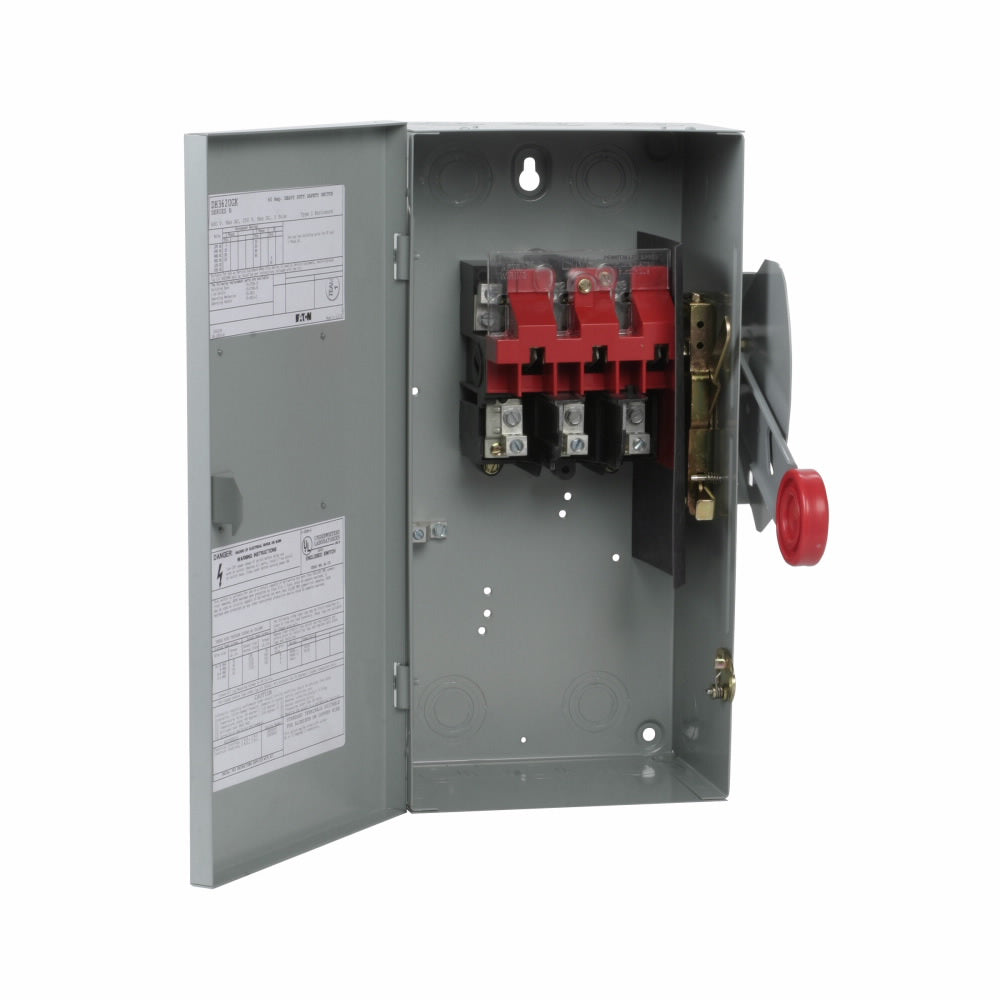

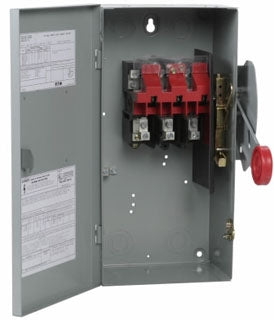

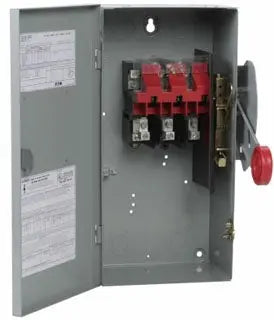

DH362UGK - Eaton Cutler Hammer 60A 600V 3-Pole Heavy Duty Non-Fusible Safety Switch NEMA 1 Painted Steel

DH362UGK

DH362UGK is a heavy duty, single-throw, non-fusible safety switch from Eaton Cutler Hammer designed for industrial power distribution applications.

This switch features a 60 ampere rating, 600 volt AC voltage rating, and a three-pole configuration housed in a NEMA 1 painted steel enclosure. It supports a three-wire setup and is suitable for surface mounting. The switch is UL listed and compliant with NEC 230.62 (C) barrier requirements, making it suitable for service entrance use with an optional neutral or ground lug kit. It provides interrupt ratings of 10 HP at 240 VAC single phase and up to 60 HP at 600 VAC three phase, ensuring reliable circuit protection in demanding environments.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 600 V AC
• Poles: 3
• Type: Single-throw, Non-fusible
• Enclosure: NEMA 1, Painted Steel
• Mounting Type: Surface mount
• Interrupt Rating: Up to 60 HP at 600 VAC 3 Phase
• Wires: 3-wire configuration
• Certifications: UL Listed
• Compliance: NEC 230.62 (C) Barrier
• Suitable for service entrance with neutral/ground lug kit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH362UGK
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 600 AC/250 DC
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 782113206004
• GTIN : 00782113144344
• Country of Origin : United States
• Dimensions : 10 in x 15.88 in x 8.13 in (Length/Depth x Height x Width)
• Weight : 16
• Certification : NEMA KS-1, UL Listed, UL98
