DH362FDK - Cutler Hammer 60A 600V 3-Pole Heavy Duty Fusible Safety Switch NEMA 12/3R

DH362FDK

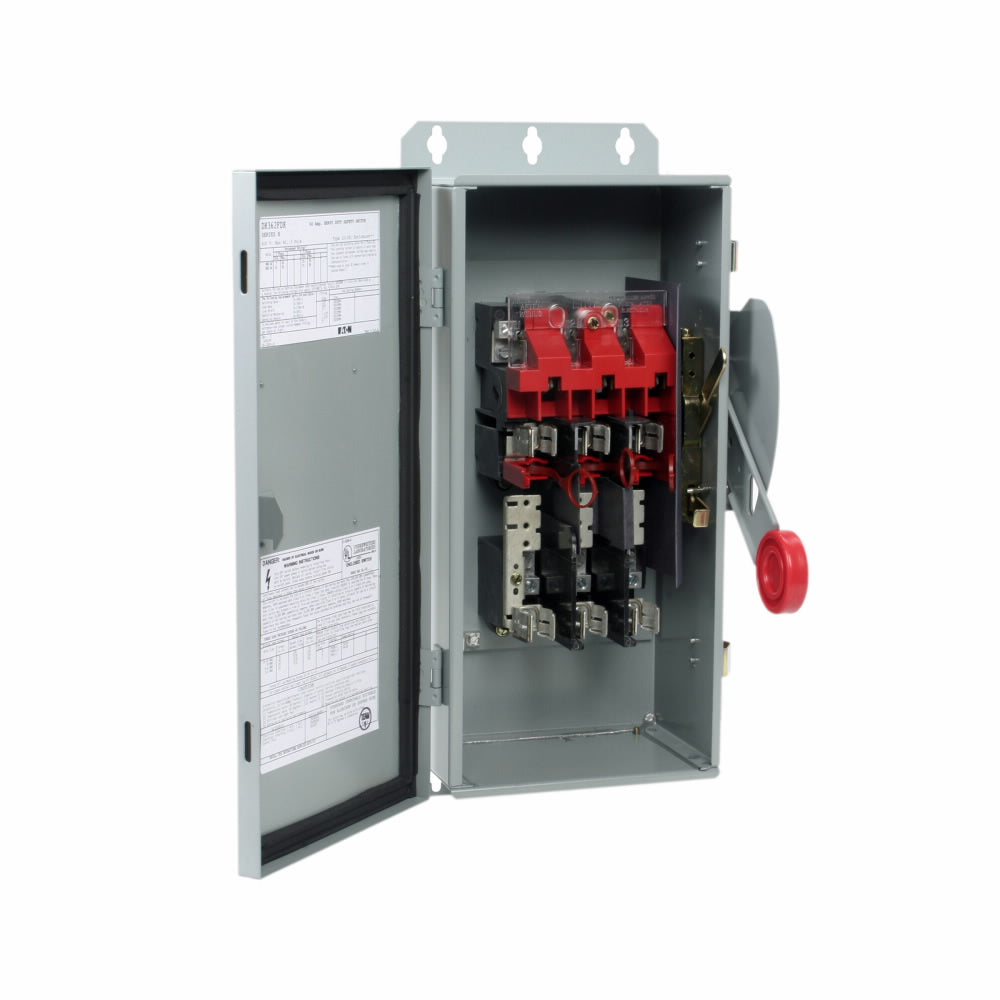

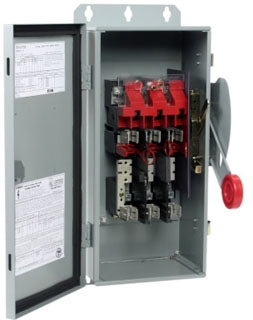

DH362FDK is a Cutler Hammer heavy duty fusible safety switch designed for reliable power disconnect and protection.This Eaton Cutler Hammer DH Series switch features a 60 ampere current rating, 600 volt voltage rating, and three poles with three wires. It is fusible without neutral, using Class H fuses, and housed in a painted galvanized steel enclosure rated for NEMA 12 and NEMA 3R environments. The switch supports a maximum horsepower rating of 20, 25/30, and 50 HP at 480/600 volts and accepts wire sizes from #14 to #2 AWG copper or aluminum. It is UL listed and suitable for heavy duty industrial applications.

Key Specifications
• Amperage: 60 A
• Voltage: 600 V
• Number of Poles: 3
• Fuse Type: Class H, Fusible without neutral
• Enclosure: Painted galvanized steel
• NEMA Rating: 12/3R
• Max Horsepower: 20, 25/30, 50 HP (1/3PH @480/600 V)
• Wire Size: #14-2 AWG Cu/Al
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: DH362FDK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 12
• Compatible Frames : THJK



Product Data

• UPC : 078211320614
• GTIN : 00782274049205
• Country of Origin : United States
• Dimensions : 20 in x 8.5 in x 9.5 in (Length/Depth x Height x Width)
• Weight : 22
• Certification : UL Listed
