2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH362FD5WRK

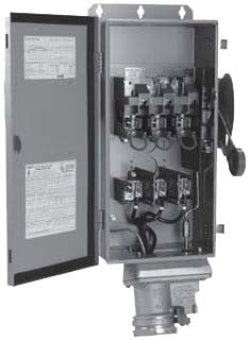

DH362FD5WRK is a Cutler Hammer heavy duty fusible receptacle safety switch rated for 60 amps and 600 volts with a 3-pole configuration.This switch features a painted galvanized steel enclosure with NEMA 12/3R rating, designed for three-phase, three-wire power applications. It includes Class H fuses and an Appleton POWERTITE® receptacle integrated with the switch mechanism to prevent plug insertion or removal when the switch is ON. It is UL listed and suitable for industrial portable power uses such as welders and conveyors.
- Amperage: 60 Amp
- Voltage: 600 VAC
- Poles: 3
- Mounting Type: Heavy Duty Receptacle
- Interrupt Rating: Class H Fuses
- Enclosure: Painted Galvanized Steel
- NEMA Rating: 12/3R
- Receptacle Type: Appleton POWERTITE®
- Series/Frame: Heavy Duty
- Trip Unit: Fusible
- Certifications: UL Listed, UL 98 Compliant
Specifications
- Part Number: DH362FD5WRK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
- Compatible Frames : THJK
Product Data
- UPC : 782113978567
- GTIN : 00782113978567
- Country of Origin : United States
- Dimensions : 30 in x 10 in x 13.75 in (Length/Depth x Height x Width)
- Weight : 27
- Certification : UL Listed
