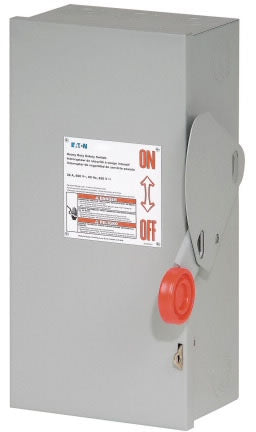

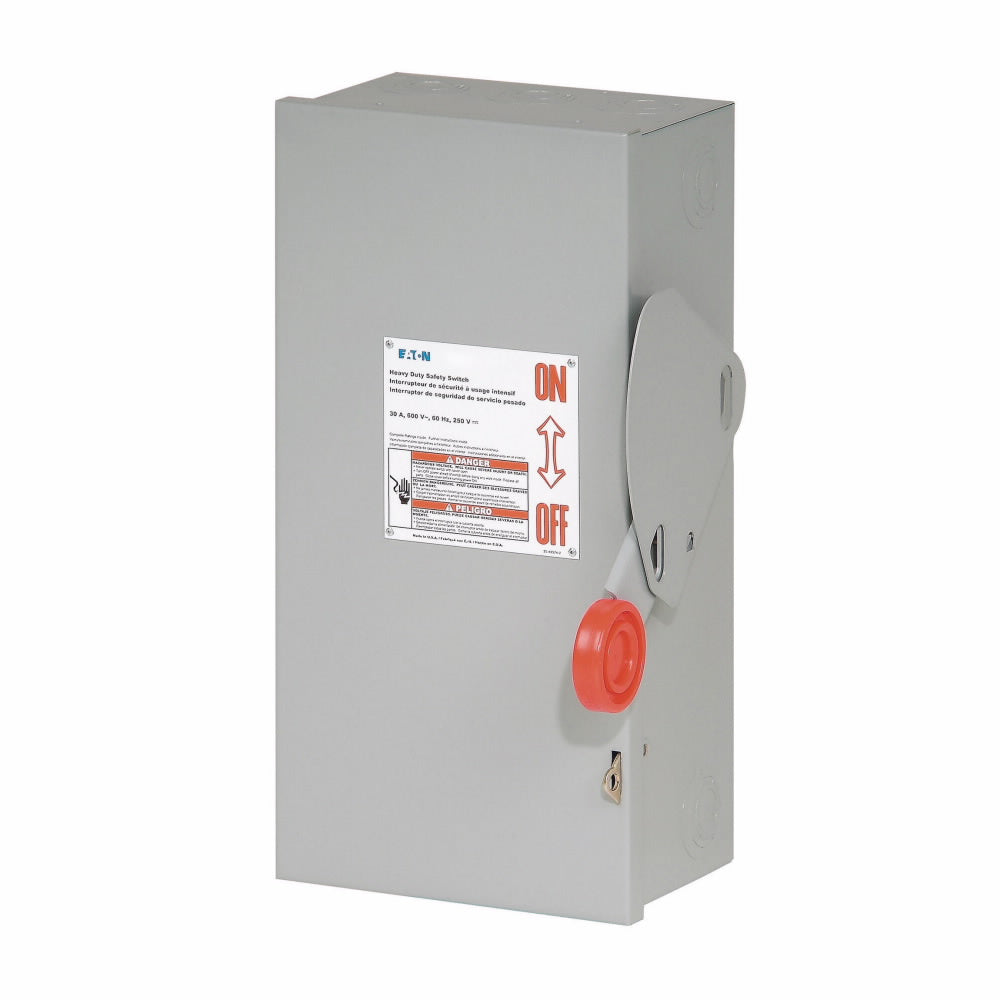

DH362FGK - Cutler Hammer 60A 600V 3-Pole Fusible Safety Switch NEMA 1 Painted Steel

DH362FGK

DH362FGK is a Cutler Hammer 3-pole, 60 Amp fusible safety switch designed for heavy-duty applications with a 600 Volt rating and NEMA 1 painted steel enclosure.This DH Series disconnect switch features a 200kA interrupting rating at 600V, Class H fuse provision without neutral, and supports wire sizes from #14 to 2 AWG Cu/Al. It is surface mounted and UL listed for industrial and service entrance use, suitable for up to 50 HP motors.

• Amperage: 60A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Surface
• Interrupting Rating: 200kA @ 600V
• Series/Frame: DH
• Trip Unit: Fusible without neutral (Class H)
• Enclosure: NEMA 1 Painted Steel
• Wire Size: #14 to 2 AWG Cu/Al
• Certifications: UL Listed
• Max HP: 20 HP (1 phase), 50 HP (3 phase)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH362FGK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 600 AC/250 DC
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : THKM

Product Data

• UPC : 782113205977
• GTIN : 00783643151161
• Country of Origin : United States
• Dimensions : 16.5 in x 8.5 in x 9.5 in (Length/Depth x Height x Width)
• Weight : 10
• Certification : NEMA KS-1, UL Listed, UL98
