Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH362NRK

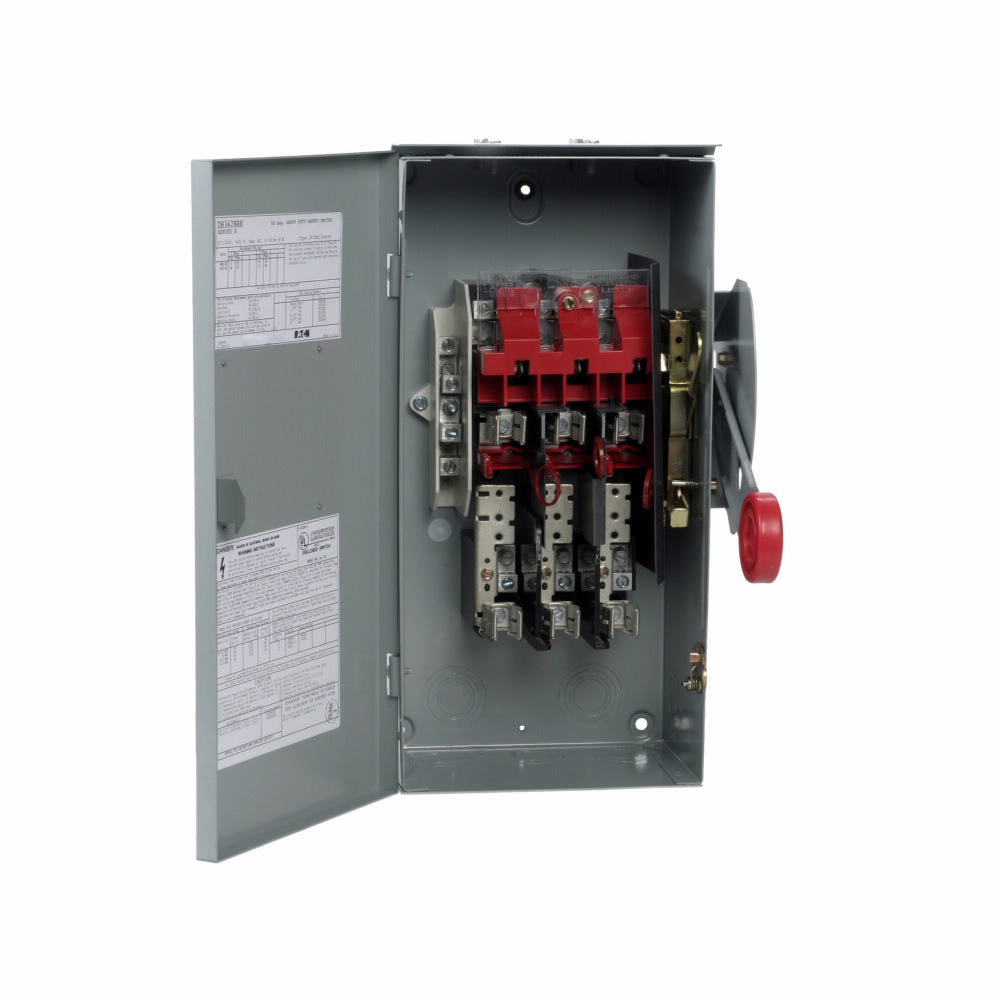

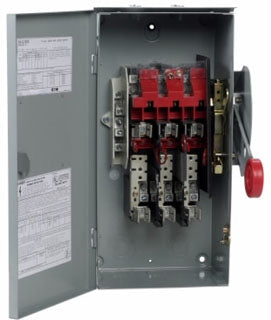

DH362NRK is a Cutler Hammer heavy duty fusible safety switch rated for 60 amps and 600 volts, designed for outdoor use with NEMA 3R enclosure.This Eaton Cutler Hammer switch features a 3-pole, 4-wire configuration with a painted galvanized steel enclosure. It includes Class H fuses with neutral, a single-throw visible blade mechanism, and is UL listed for safety and reliability. The switch is suitable for heavy-duty applications requiring a fusible disconnect with a 20-50 HP motor rating.
- Amperage: 60 A
- Voltage: 600 VAC / 250 VDC
- Poles: 3
- Wires: 4 (including neutral)
- Mounting Type: Outdoor NEMA 3R painted galvanized steel enclosure
- Interrupt Rating: Class H fuses
- Switch Type: Fusible, single throw, visible blade
- Frame/Series: Heavy Duty
- Certifications: UL Listed
- Horsepower Rating: Up to 50 HP
- Dimensions: Approx. 16.5" H x 9.25" W x 8.25" D
Specifications
- Part Number: DH362NRK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
- Compatible Frames : TKM
Product Data
- UPC : 782113206059
- GTIN : 00782113206141
- Country of Origin : United States
- Dimensions : 16.5 in x 8.25 in x 9.25 in (Length/Depth x Height x Width)
- Weight : 20
- Certification : UL Listed
