Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH362NGK

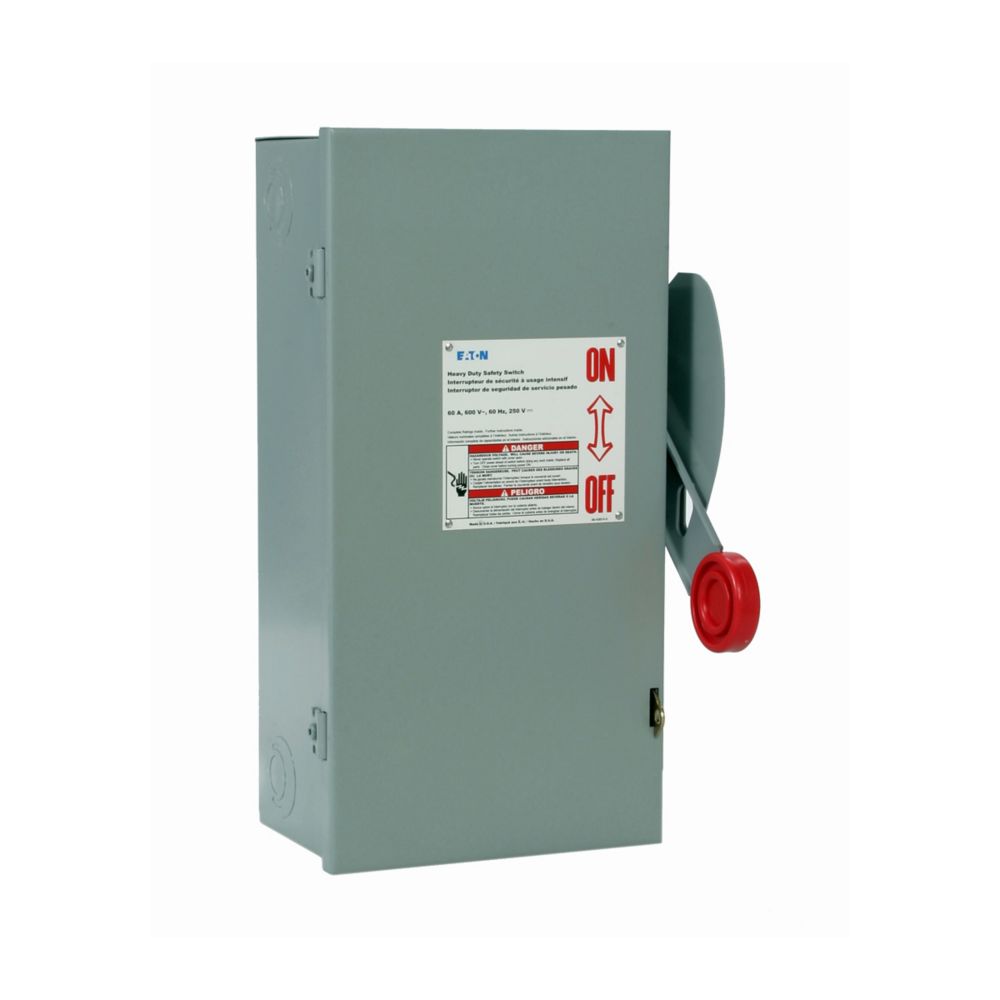

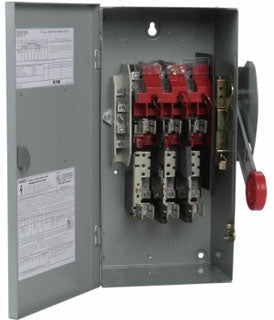

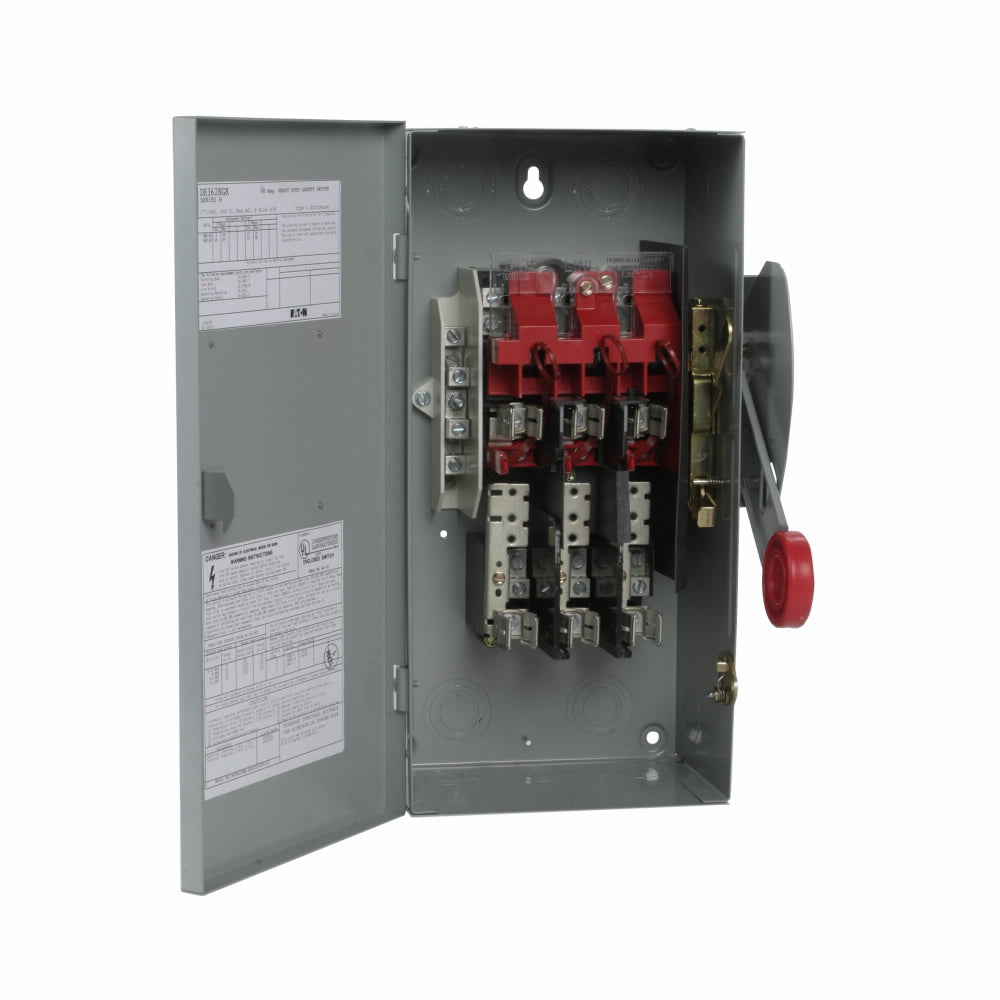

DH362NGK is a Cutler Hammer heavy duty fusible safety switch rated for 60 amps and 600 volts with a 3-pole, 4-wire configuration and NEMA 1 enclosure.This heavy duty single-throw safety switch features a painted steel enclosure, Class H fuse provision with fusible neutral, and is UL listed. It supports up to 50 hp at 3-phase 600 V and complies with NEC 230.62 (C) barrier requirements.
- Amperage: 60 Amp
- Voltage: 600 Volt AC
- Poles: 3
- Wires: 4
- Enclosure: NEMA 1, Painted Steel
- Fuse Class: Class H Fusible with Neutral
- Max Horsepower: 50 hp (3-Phase @ 600 V)
- UL Listed
- NEC 230.62 (C) Compliant Barrier
- Dimensions: 5.25 in Depth x 7.75 in Width x 15.81 in Height
- Series/Frame: K Series Heavy Duty
Specifications
- Part Number: DH362NGK
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 782113206035
- GTIN : 00782113206035
- Country of Origin : United States
- Dimensions : 5.25 in x 15.81 in x 7.75 in (Length/Depth x Height x Width)
- Weight : 20
- Certification : UL Listed
