D325NR - Square D 400A 240VAC 3-Pole Fusible General Duty Safety Switch NEMA 3R Surface Mount

D325NR

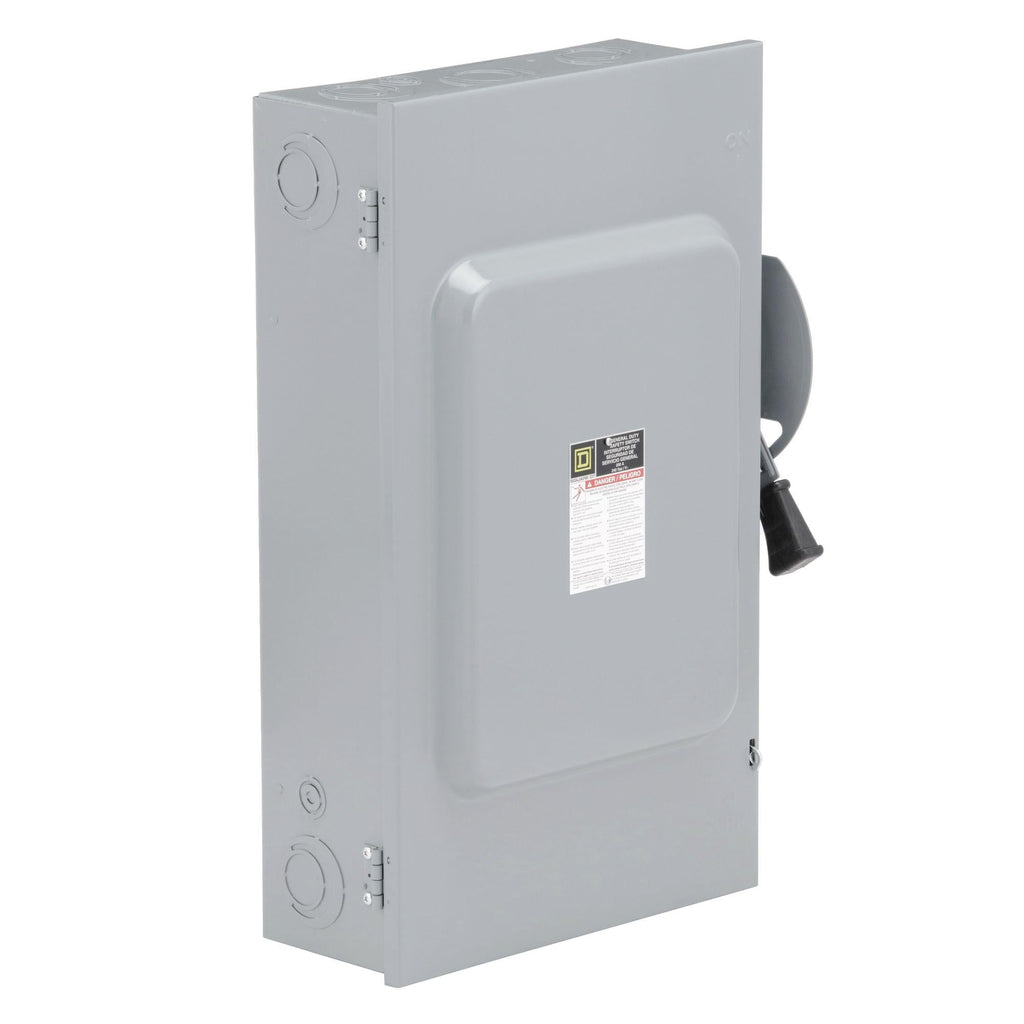

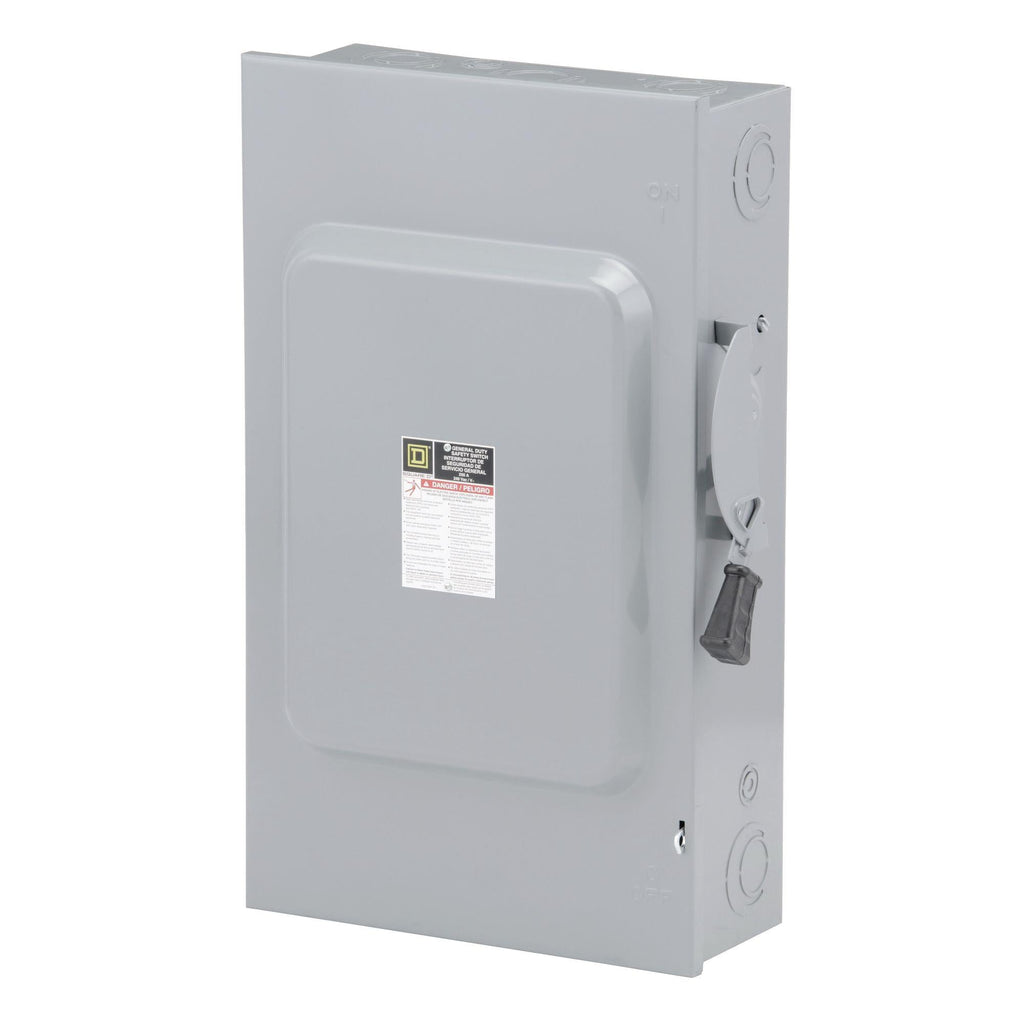

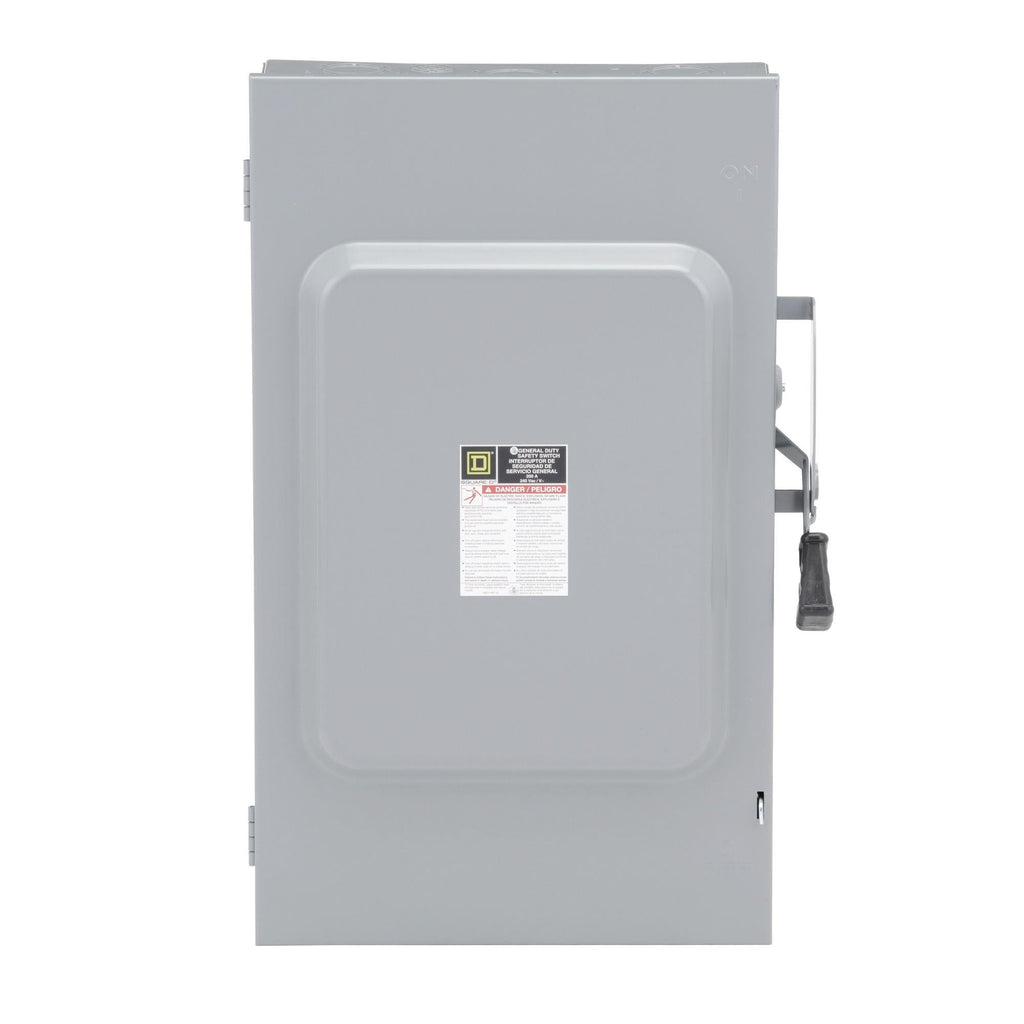

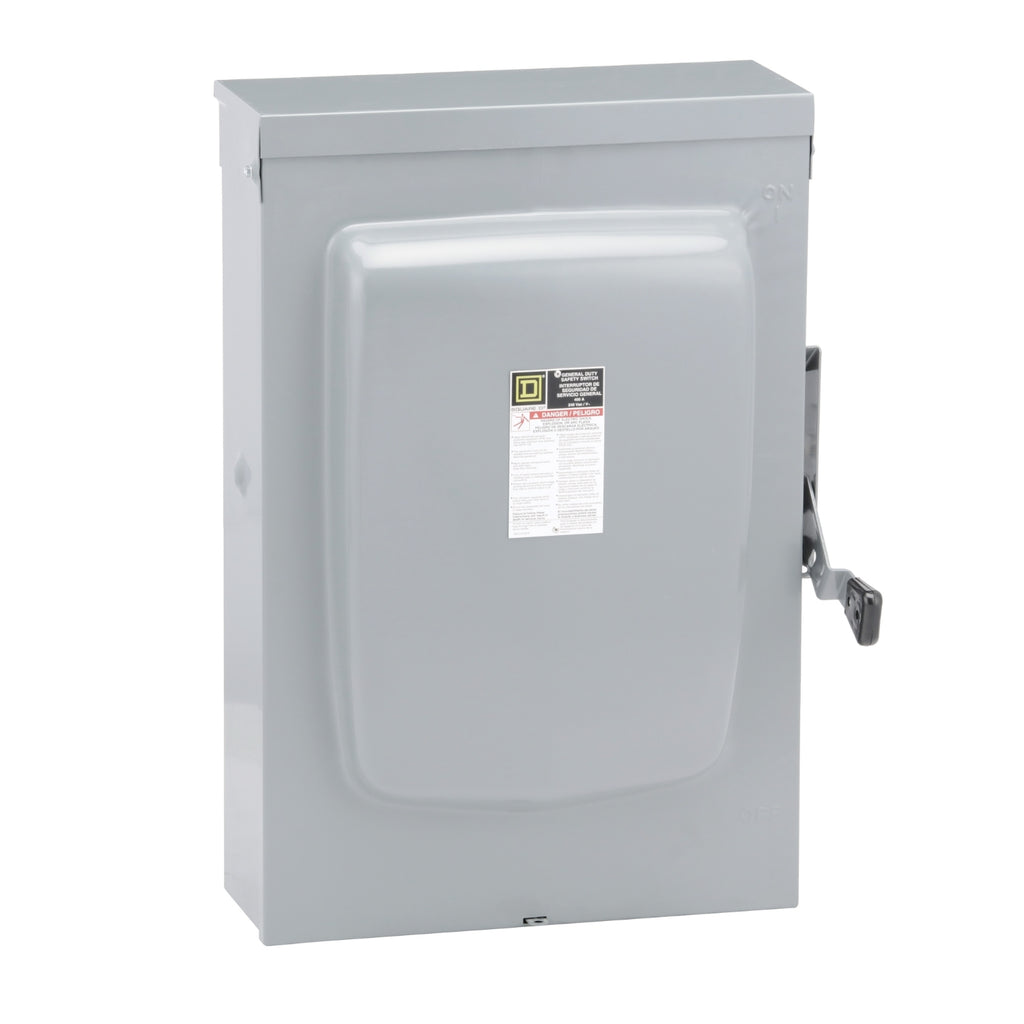

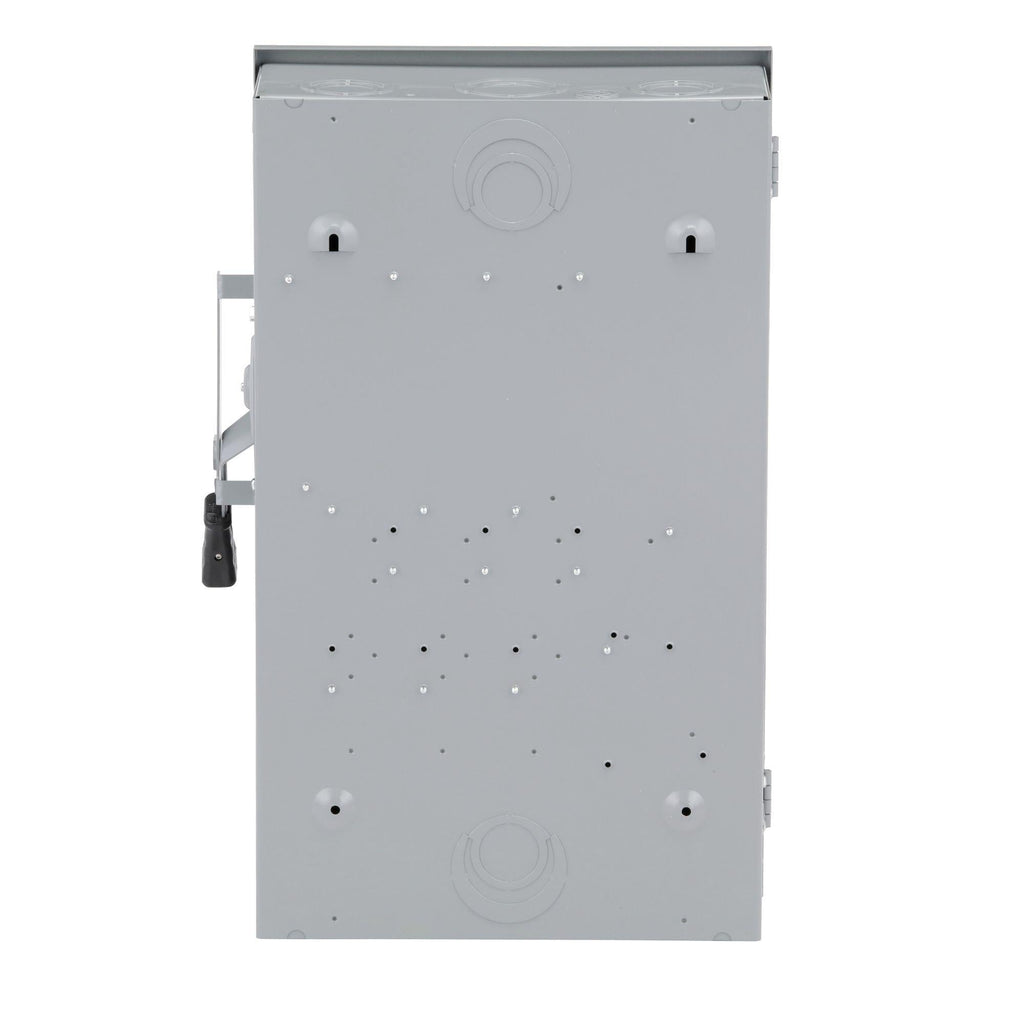

D325NR is a Square D general duty fusible safety switch rated for 400 amps, 240 volts AC, with 3 poles and a NEMA 3R enclosure.This switch features a 100kA interrupt rating, surface mounting, and a factory-installed neutral. It is designed for general duty applications including lighting, air conditioning, and appliances, suitable for residential and commercial use. The switch is UL listed, has a 3-pole single throw contact form, and accepts lug terminals for 10-6 AWG aluminum or copper conductors.

• Amperage: 400A
• Voltage: 240VAC
• Poles: 3
• Interrupt Rating: 100kA
• Mounting Type: Surface Mount
• Enclosure: NEMA 3R
• Series/Frame: E1
• Fusible: Yes
• Neutral: Factory Installed
• UL Listed
• Dimensions: 30.63" H x 22.25" W x 10.13" D
• Contact Form: 3PST (3 Pole Single Throw)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: D325NR
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : D
• Voltage : 240 AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : RLF

Product Data

• UPC : 78590146157
• GTIN : 00785901461579
• Country of Origin : Mexico
• Dimensions : 30.63 in (778.002 mm) x 22.25 in (565.15 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 69.979
• Certification : UL listed
