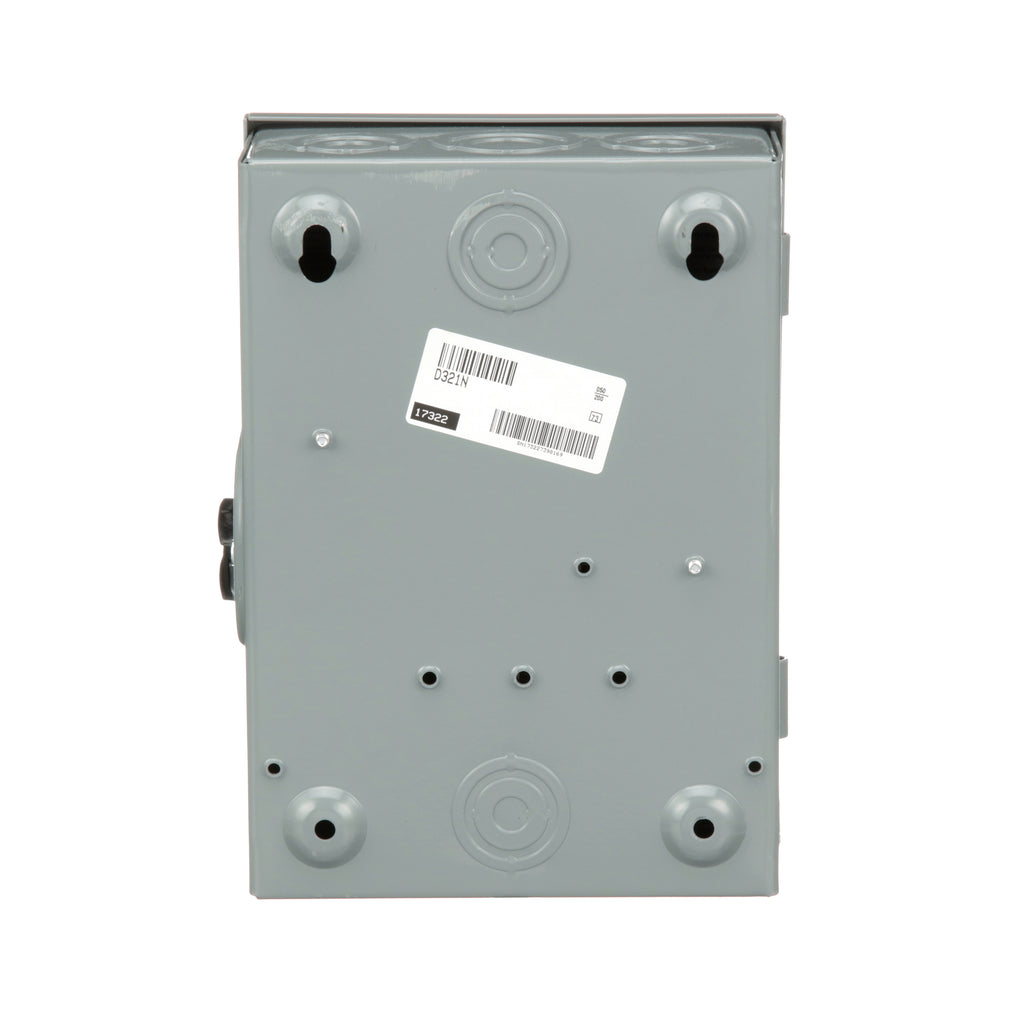

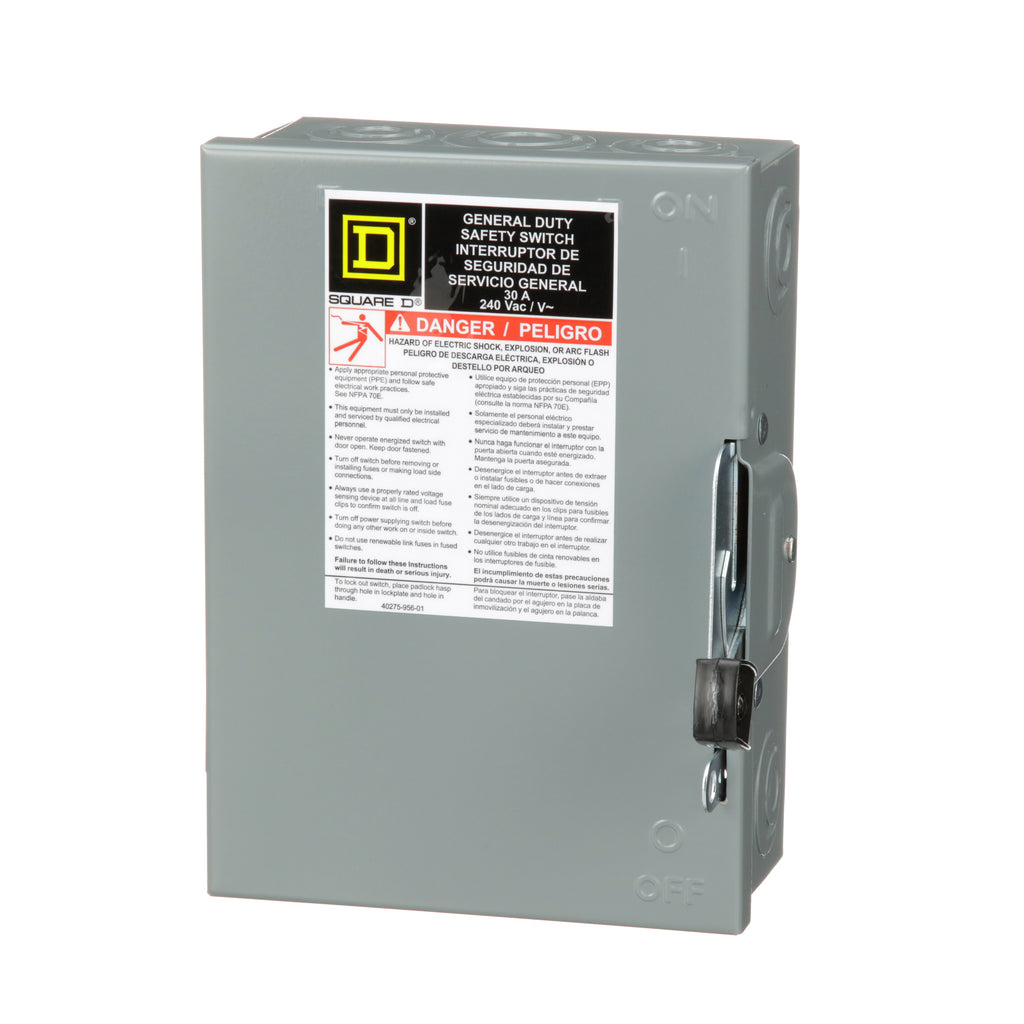

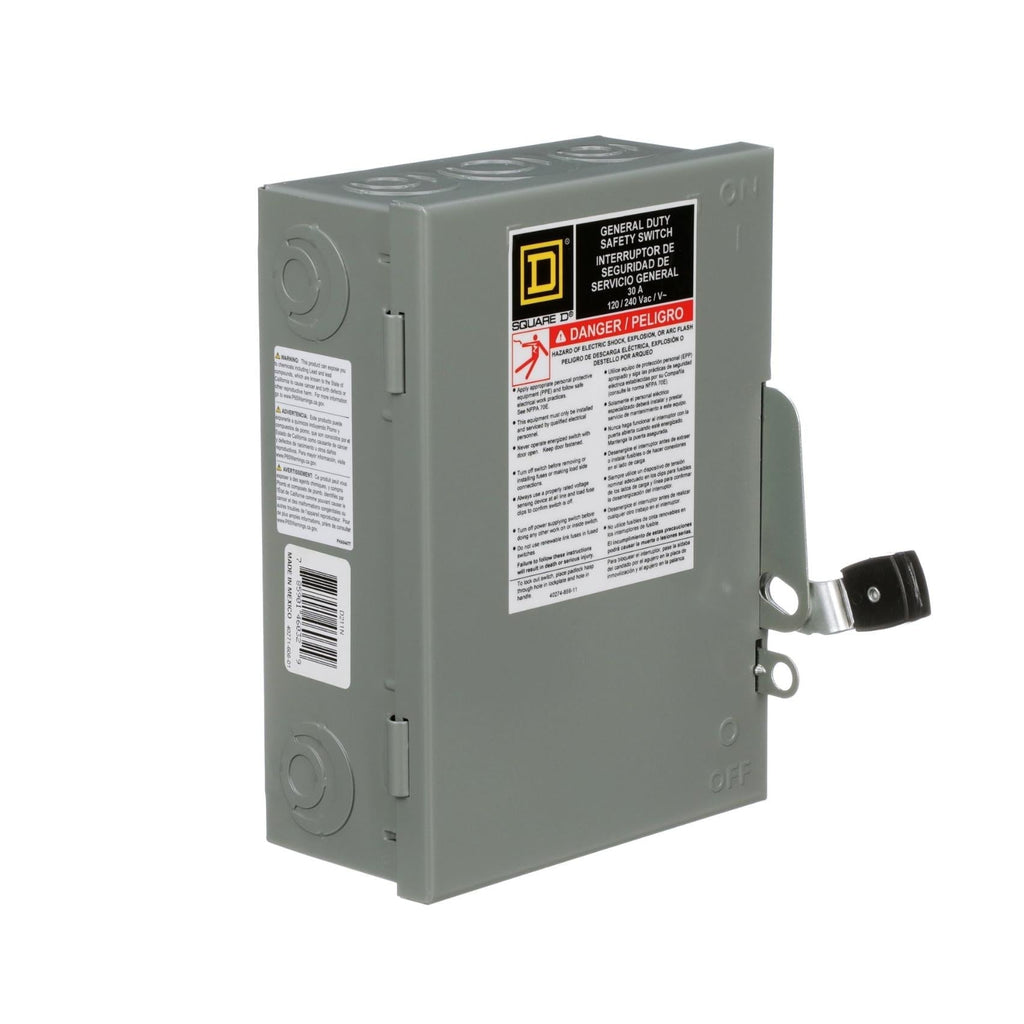

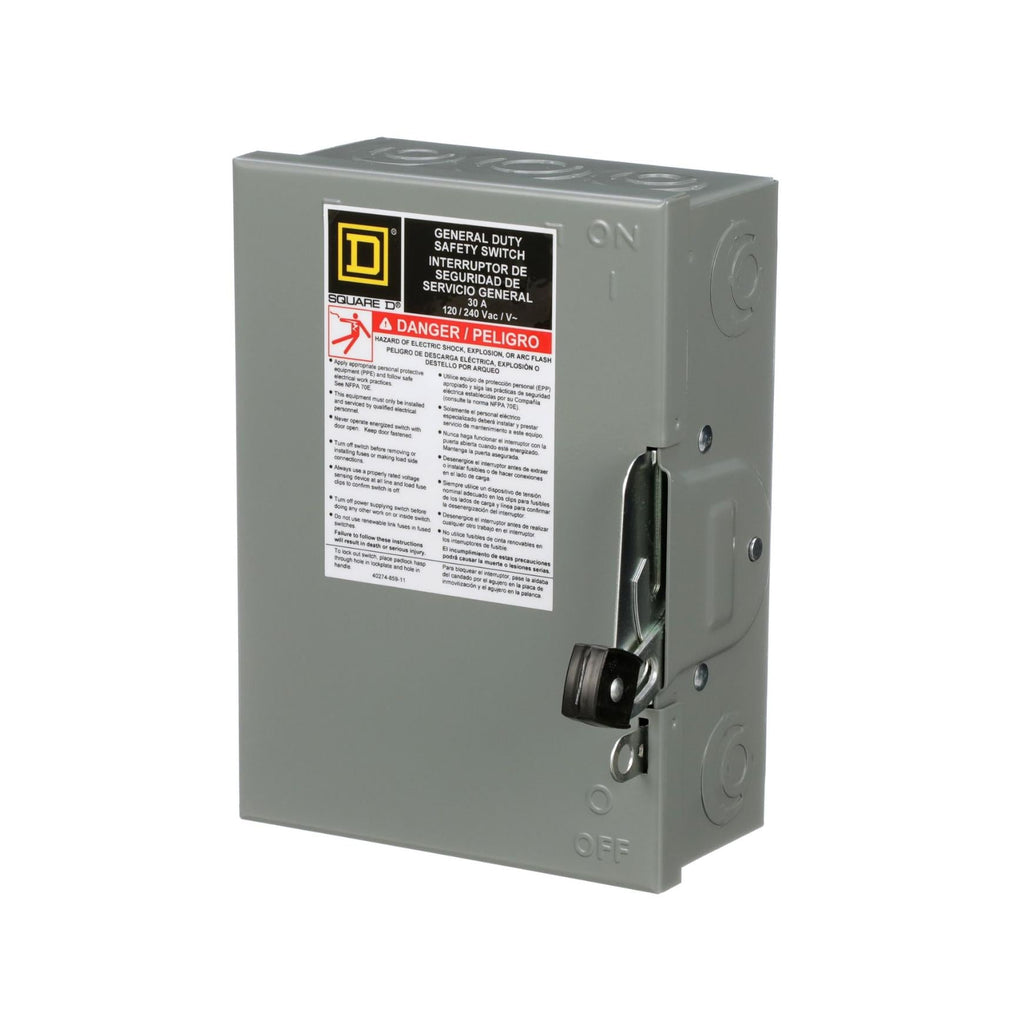

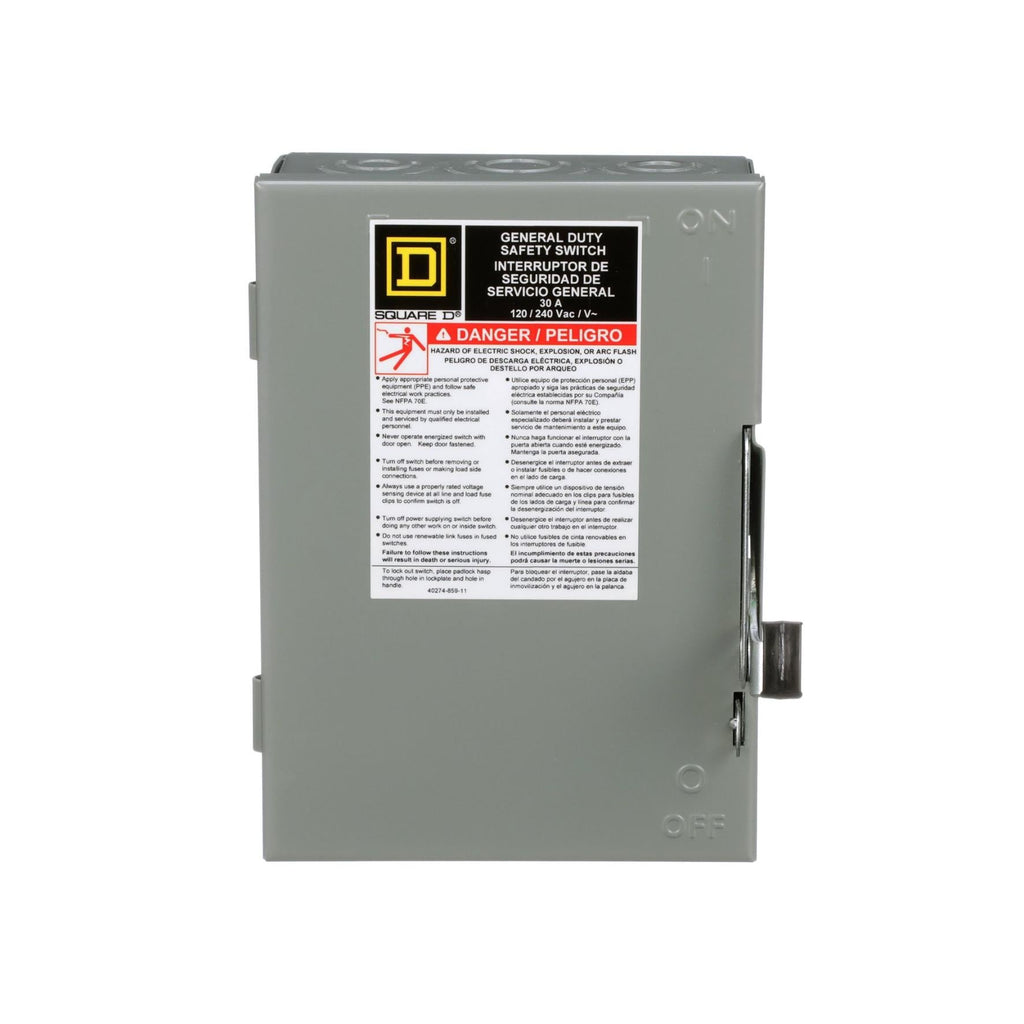

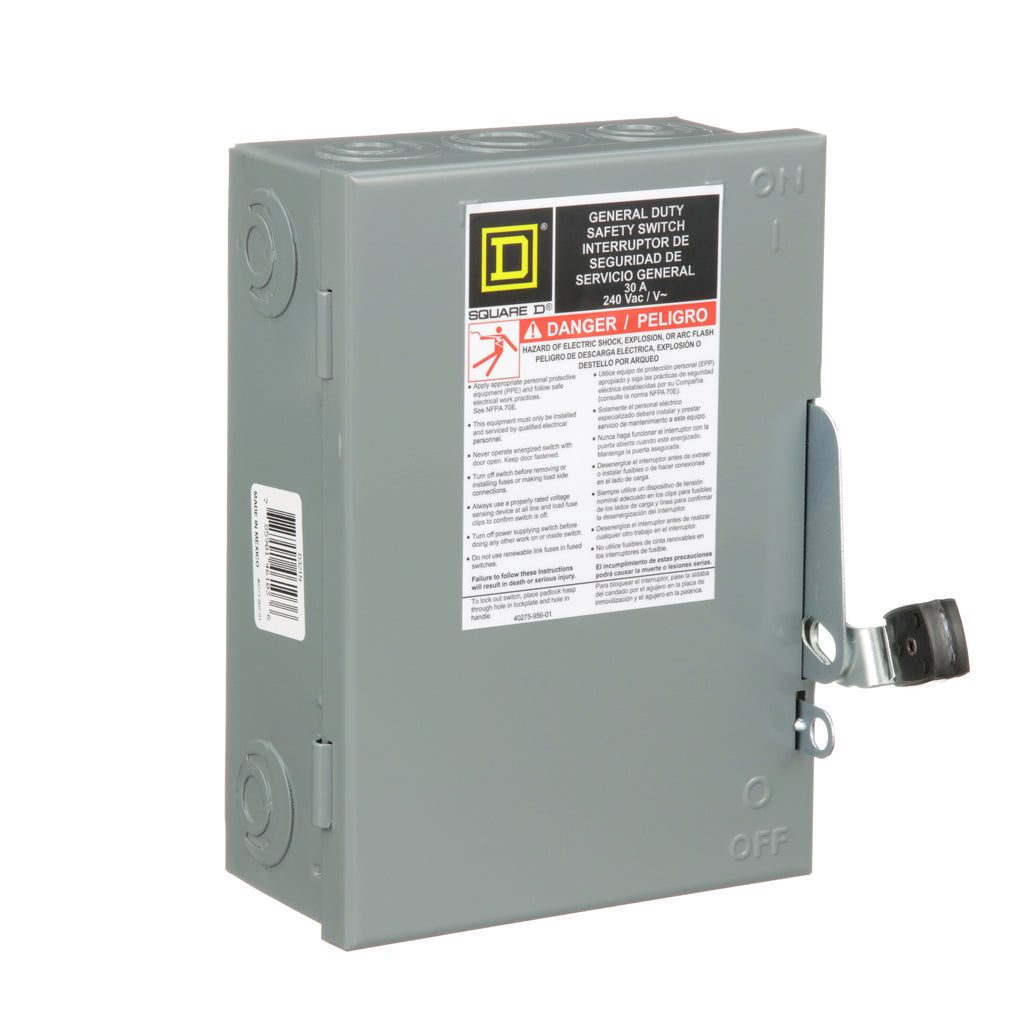

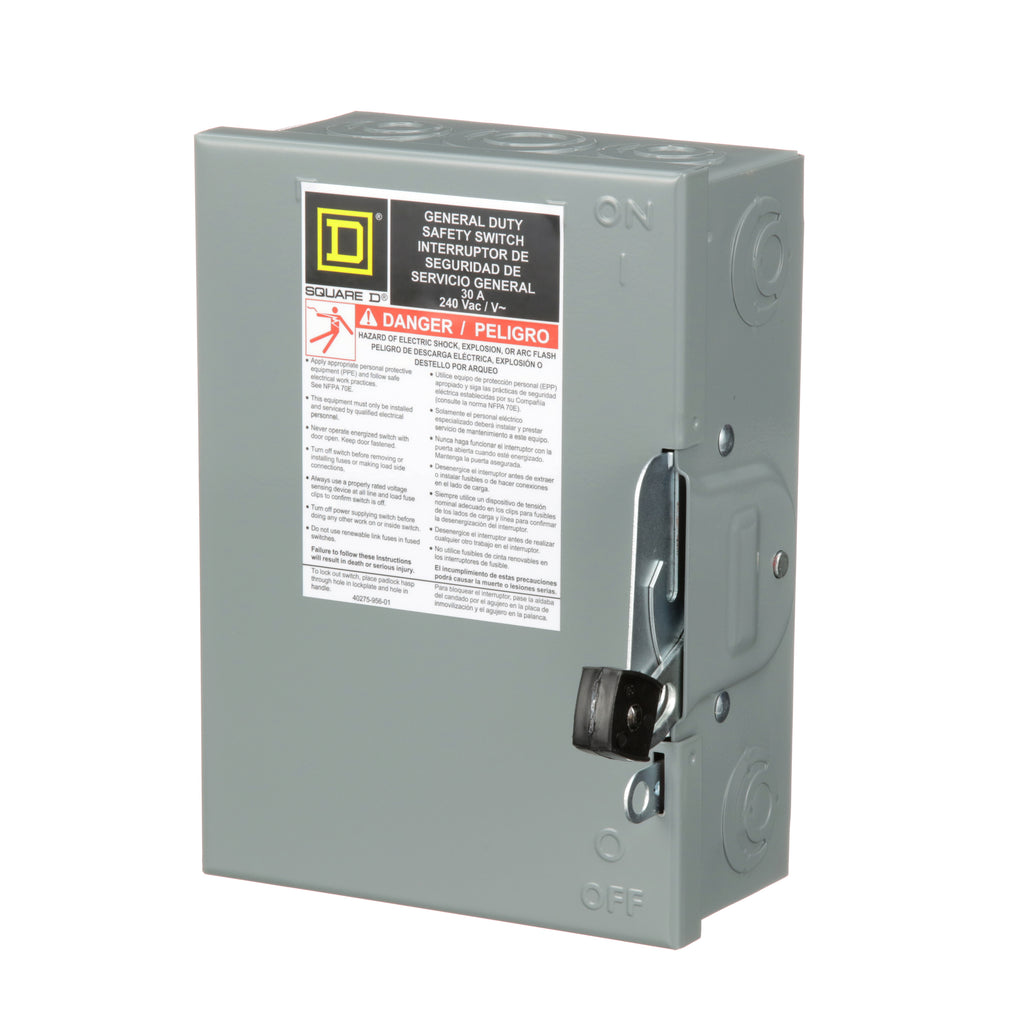

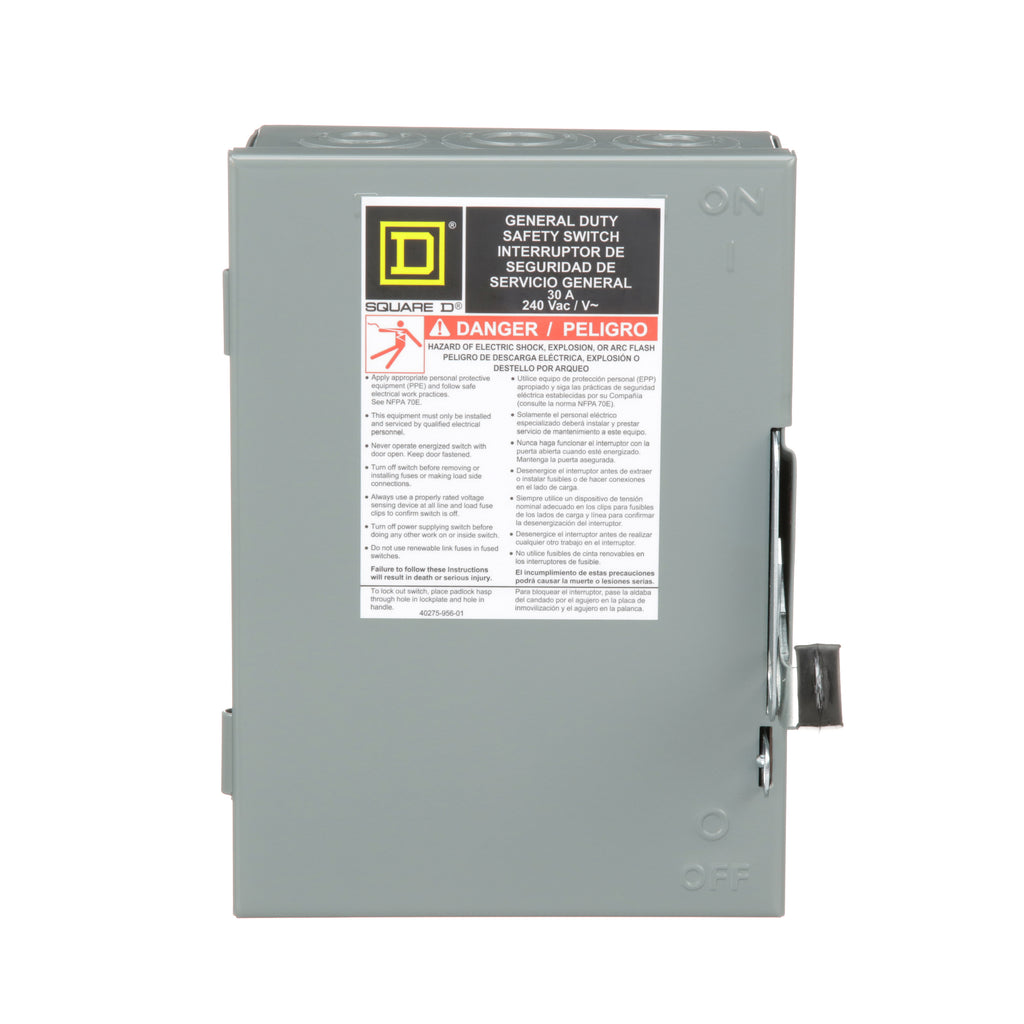

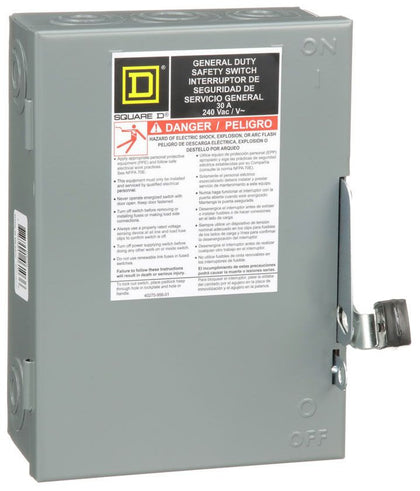

D321N - Square D 30A 240VAC 3-Pole General Duty Fusible Safety Switch NEMA 1 Indoor Surface Mount

D321N

D321N is a Square D 30 Amp, 240 Volt AC, 3-Pole General Duty Fusible Safety Switch designed for indoor use with a NEMA 1 enclosure and factory-installed neutral.

This switch features a fusible disconnect with cartridge fuses (Class H, K, or R), a short circuit current rating of 100kA max depending on fuse type, and a quick make/quick break operating mechanism. It is surface mounted with lug-type terminals and suitable for lighting, air conditioning, and appliance applications. The switch is UL listed (File E2875) and meets general duty standards with a 7.25 in width, 3.63 in depth, and 9.25 in height dimension profile.

Key Specifications
• Amperage: 30A
• Voltage Rating: 240VAC
• Number of Poles: 3
• Enclosure Type: NEMA 1 (Indoor)
• Mounting Type: Surface
• Interrupt Rating: 100kA max (dependent on fuse)
• Fusible: Yes, cartridge fuse type (Class H, K, or R)
• Terminal Type: Lug
• Series/Frame: General Duty, Series E3
• Factory Installed Neutral: Yes
• UL Listed: Yes, File E2875
• Dimensions: 9.25" H x 6.75" W x 3.63" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: D321N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : D
• Voltage : 240 AC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : RLF

Product Data

• UPC : 785901461036
• GTIN : 00785901461036
• Country of Origin : Mexico
• Dimensions : 9.25 in (234.95 mm) x 7.25 in (184.15 mm) x 3.63 in (92.20 mm) (Height x Width x Depth)
• Weight : 4.451
• Certification : UL listed
